Double Ended Bolt

Product Description

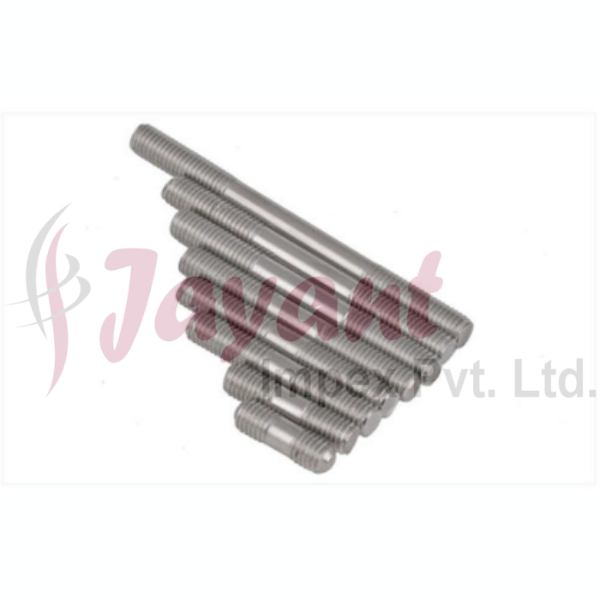

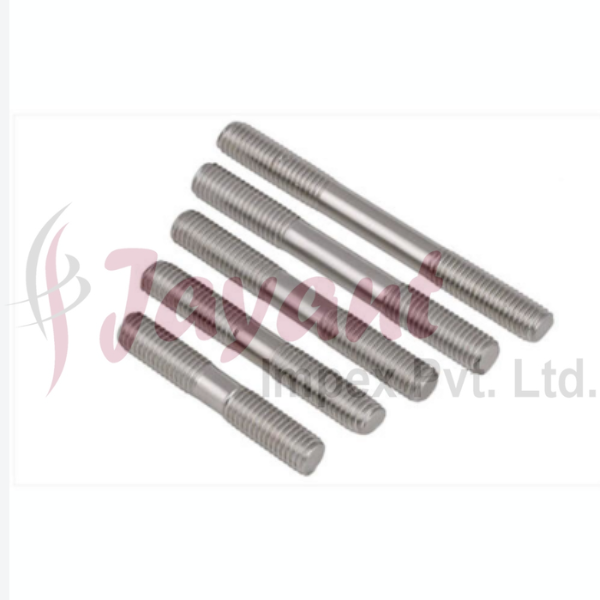

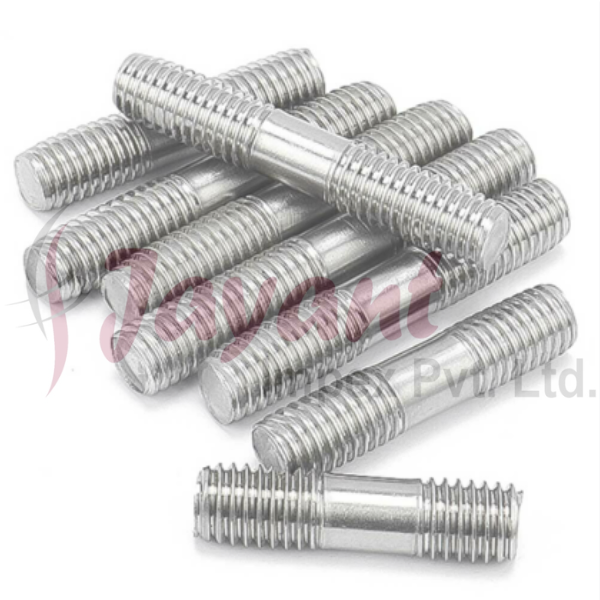

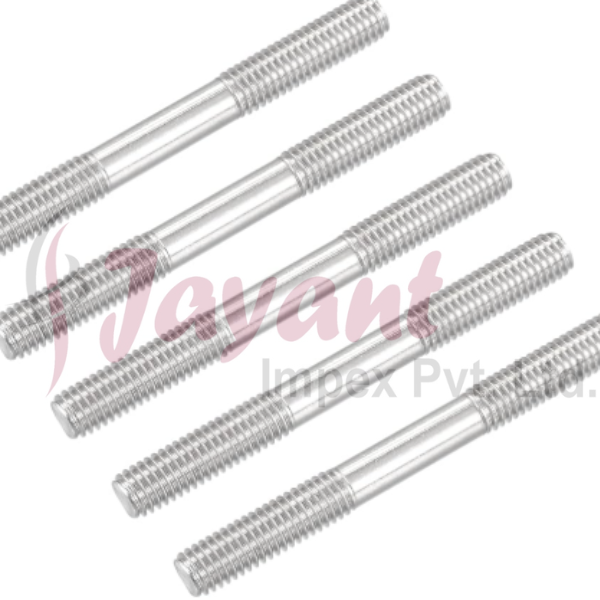

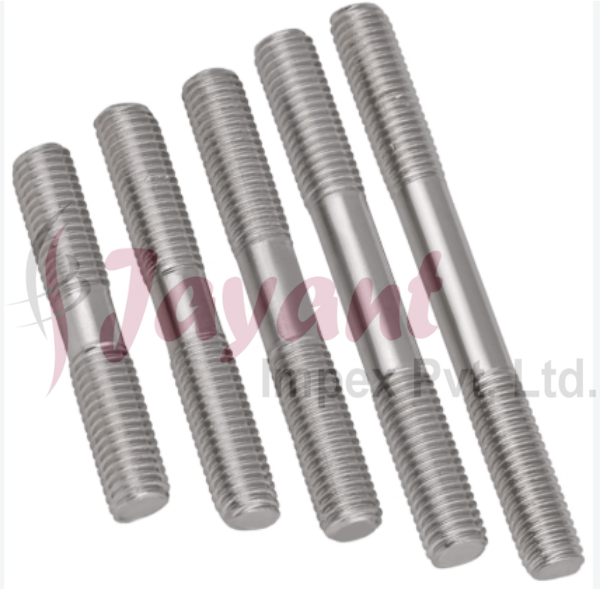

A double-ended bolt, also frequently referred to as a double-end stud bolt, is a headless fastener that features threading on both ends of a central shank. While traditional bolts have a fixed head (like a hex or pan head) at one end, these components are designed to accept a nut on both sides or have one end threaded directly into a tapped hole.

Key Characteristics

• Design: They typically consist of two threaded sections separated by a smooth, unthreaded middle portion (the shank).

• Uniformity: The threads on each end are usually of the same diameter, though the length of the threaded portions can be equal or unequal depending on the specific application.

• Installation: In many setups, one end is permanently or semi-permanently seated into a base material (like an engine block), while the other end uses a nut to secure a second component.

Common Types

1. Equal-End Studs: These have identical thread lengths on both ends. They are widely used in high-pressure flange connections, such as those found in pipelines or chemical reactors.

2. Tap-End Studs: One end (the "tap end") is shorter and designed to be screwed into a threaded hole in a casting or body. The longer "nut end" extends out to receive a nut and washer.

3. Double-Ended Hex Bolts: These feature a hex-shaped section in the middle of the shank, allowing a wrench to be used to drive the bolt into a tapped hole or to hold it steady while tightening nuts on the ends.

Applications and Advantages

• High-Strength Bolting: Because they lack a head, they provide more uniform stress distribution and are less prone to fatigue failure compared to standard headed bolts. This makes them essential for pressure vessels and automotive cylinder heads.

• Ease of Maintenance: They allow for the disassembly of a joint by simply removing the nuts, which protects the internal threads of expensive equipment from wear over time.

• Vibration Resistance: When used with dual-nut locking systems, they are highly resistant to loosening in high-vibration environments like wind towers or heavy machinery.

Materials and Standards

These fasteners are manufactured to meet various international standards, including DIN 2510 (for reduced shank types), ASTM A193 (for high-temperature service), and ISO specifications. Common materials include:

• Carbon Steel: For general structural use.

• Alloy Steel (Grades 8.8, 10.9, 12.9): For high-tensile, heavy-duty applications.

• Stainless Steel (304/316): For corrosion resistance in marine or chemical environments.
