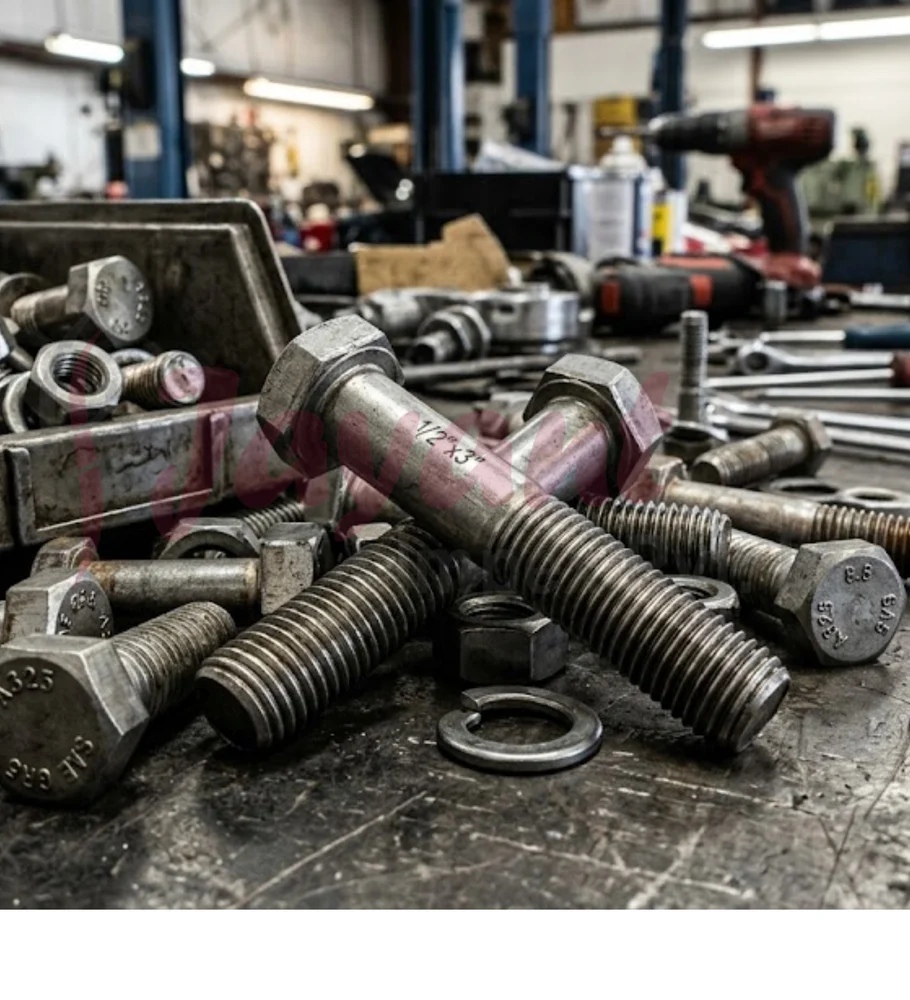

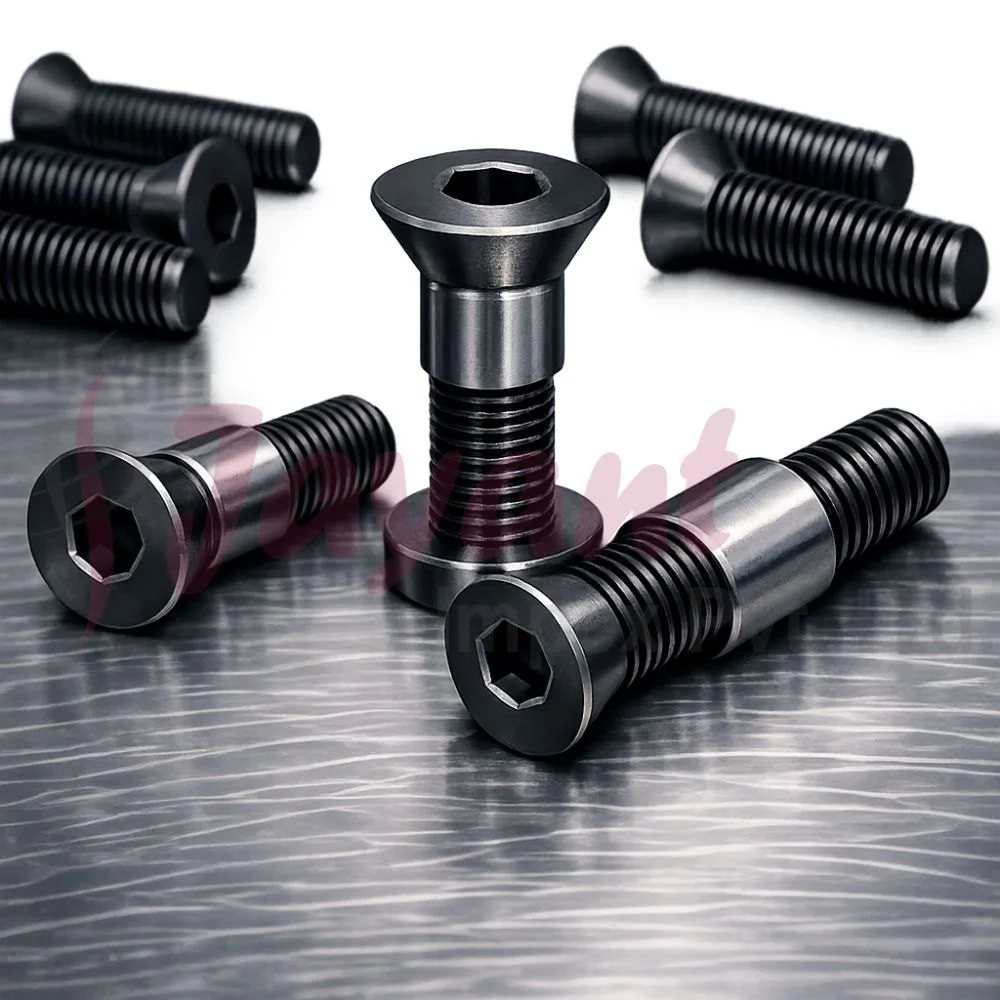

High Tensile Bolts

Product Description

In industrial engineering, high tensile bolts are fasteners specifically engineered to withstand high levels of stress and tension without deforming or breaking. While a standard bolt might suffice for simple assembly, high tensile bolts are required for critical load-bearing structures, heavy machinery, and automotive drivetrains.

The strength of these bolts is achieved through the use of medium-carbon or alloy steels (such as 4140 or 4340 chrome-moly) and precise heat treatment processes, including quenching and tempering.

1. Strength Grades and Classifications

High tensile bolts are identified by "Property Classes" (Metric) or "Grades" (Imperial) stamped on the head.

Metric (ISO 898-1)

The class is denoted by two numbers separated by a dot (e.g., 8.8, 10.9, 12.9).

• Class 8.8: Known as "structural grade." It is the most common high tensile bolt, offering a good balance of strength and ductility.

• Class 10.9: Frequently used in automotive applications (cylinder heads, suspensions). It has a higher yield strength than 8.8.

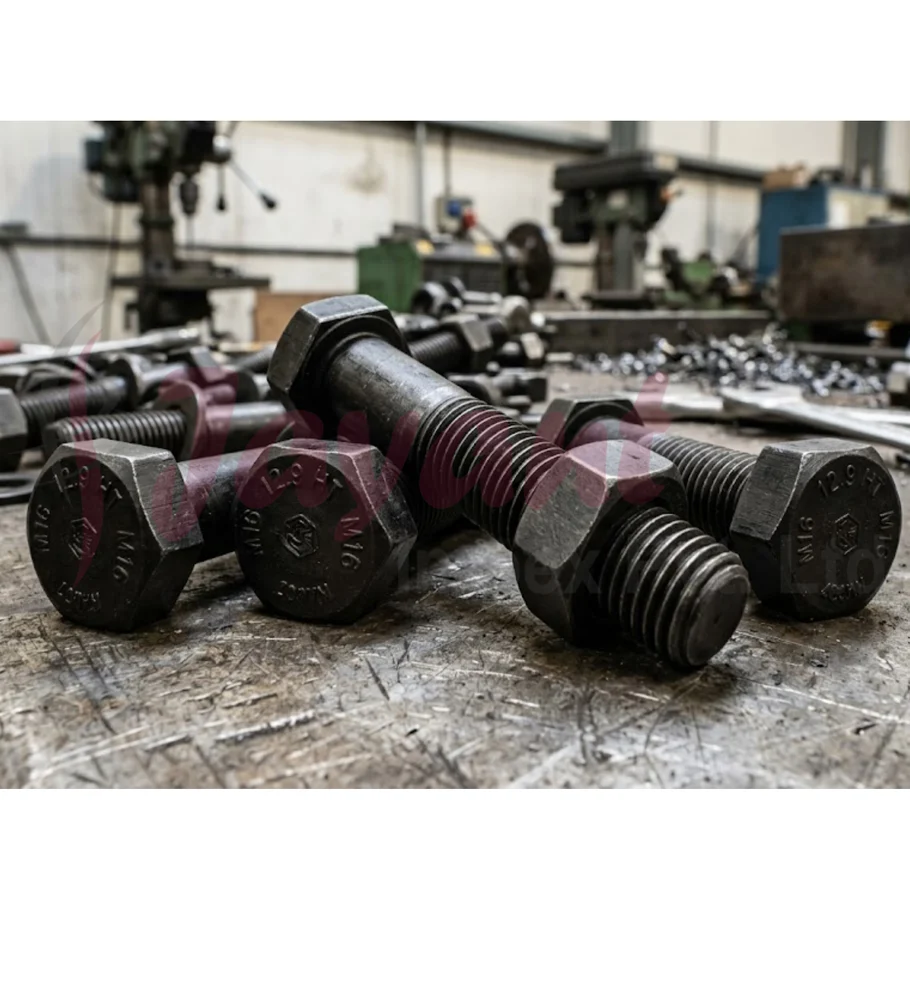

• Class 12.9: The highest standard metric grade. These are used in heavy engine components and high-pressure pumps. They are very strong but also more brittle than lower grades.

Imperial (SAE J429)

• Grade 5: Equivalent to Metric 8.8. Identified by three radial lines on the head.

• Grade 8: Equivalent to Metric 10.9. Identified by six radial lines on the head. Used in high-stress aerospace and military applications.

2. Key Mechanical Properties

3. Critical Industrial Applications

High tensile fasteners are the backbone of industries where failure is not an option:

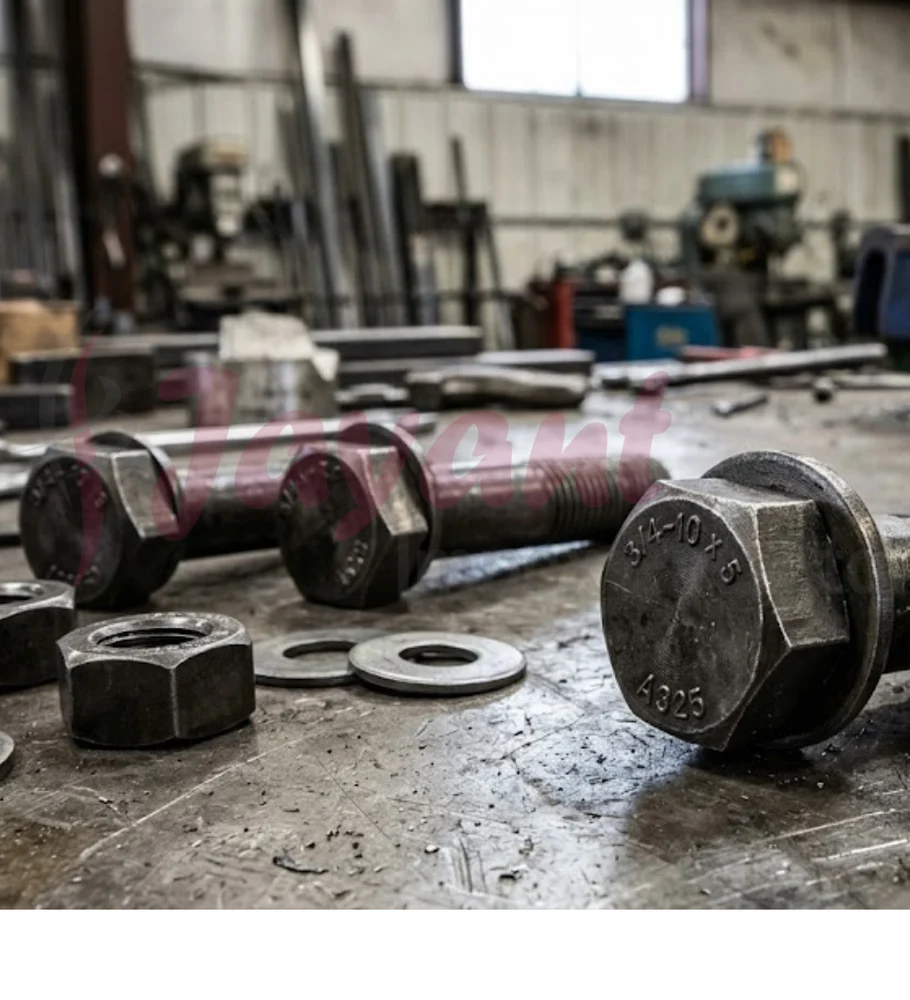

• Structural Steelwork: Connecting beams and columns in skyscrapers and bridges (ASTM A325/A490).

• Automotive/Heavy Plant: Engine head bolts, flywheel bolts, and suspension mounting points.

• Renewable Energy: Securing wind turbine blades to the hub and the tower sections to the foundation.

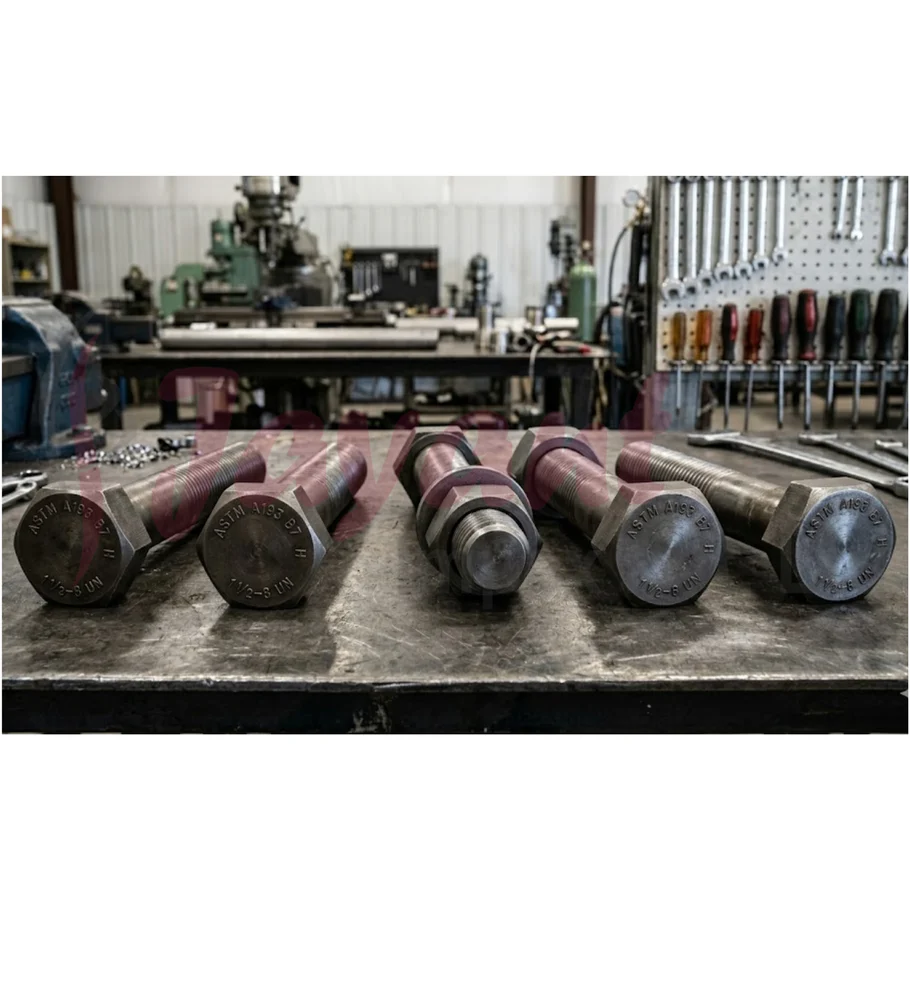

• Pressure Vessels: Securing flanges in oil refineries and chemical plants (ASTM A193 B7).

4. Technical Selection Considerations

Hydrogen Embrittlement

A major risk for Class 10.9 and 12.9 bolts. During the electroplating (zinc) process, hydrogen can become trapped in the steel, leading to sudden, catastrophic failure under load. In industrial settings, high tensile bolts are often black oxidized or mechanically galvanized to avoid this risk.

Preload and Torque

High tensile bolts only work effectively if they are "stretched" correctly during installation. This stretch creates the clamping force that holds the joint together.

• If the torque is too low, the joint will vibrate loose.

• If the torque is too high, the bolt may exceed its yield point and lose its "spring" energy.

Material Equivalents

In global procurement, you may see regional equivalents. For example, a Russian 38KhS or 40Kh is often cross-referenced against Western AISI 4140 for high tensile applications, provided the heat treatment protocols match.

5. Proper Fastening Assembly

A high tensile bolt should never be used with a low-grade nut or washer.

• Matching Nuts: A Class 10.9 bolt must be used with a Class 10 nut. Using a Grade 2 nut with a Grade 8 bolt will result in the threads stripping out of the nut long before the bolt reaches its required tension.

• Hardened Washers: Always use through-hardened washers (e.g., ASTM F436) to prevent the bolt head from "sinking" into the softer material of the workpiece.
