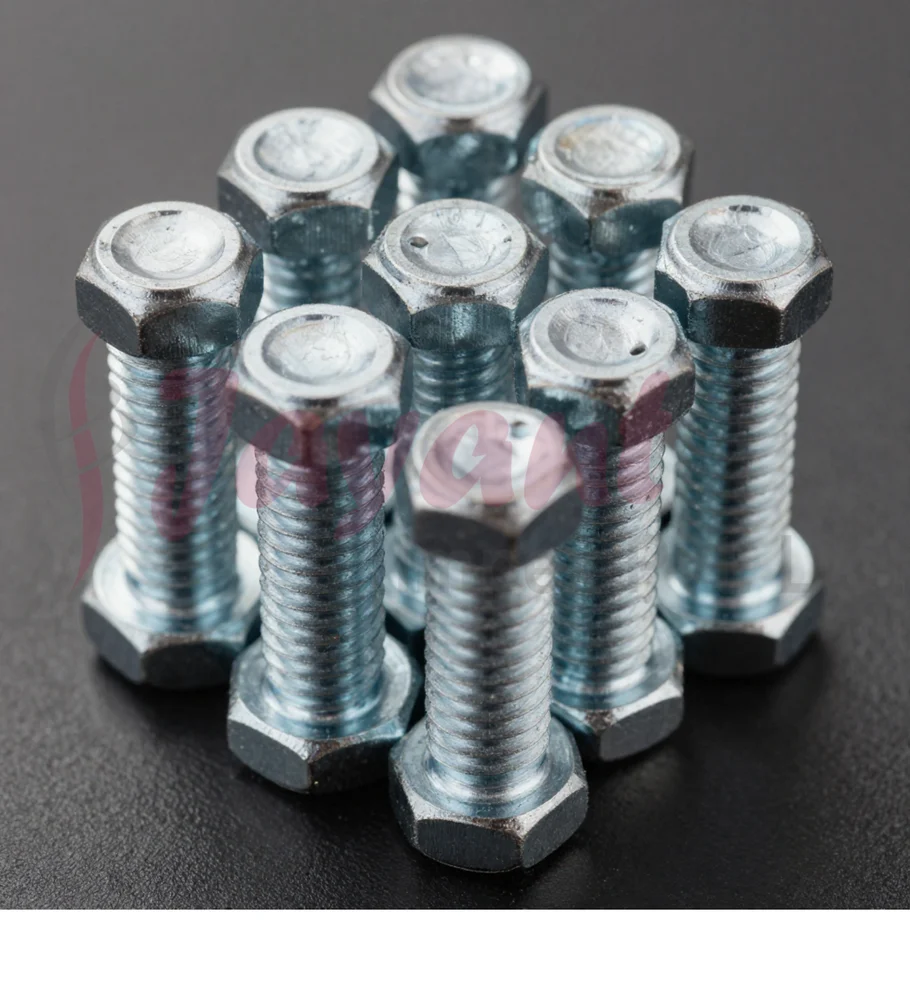

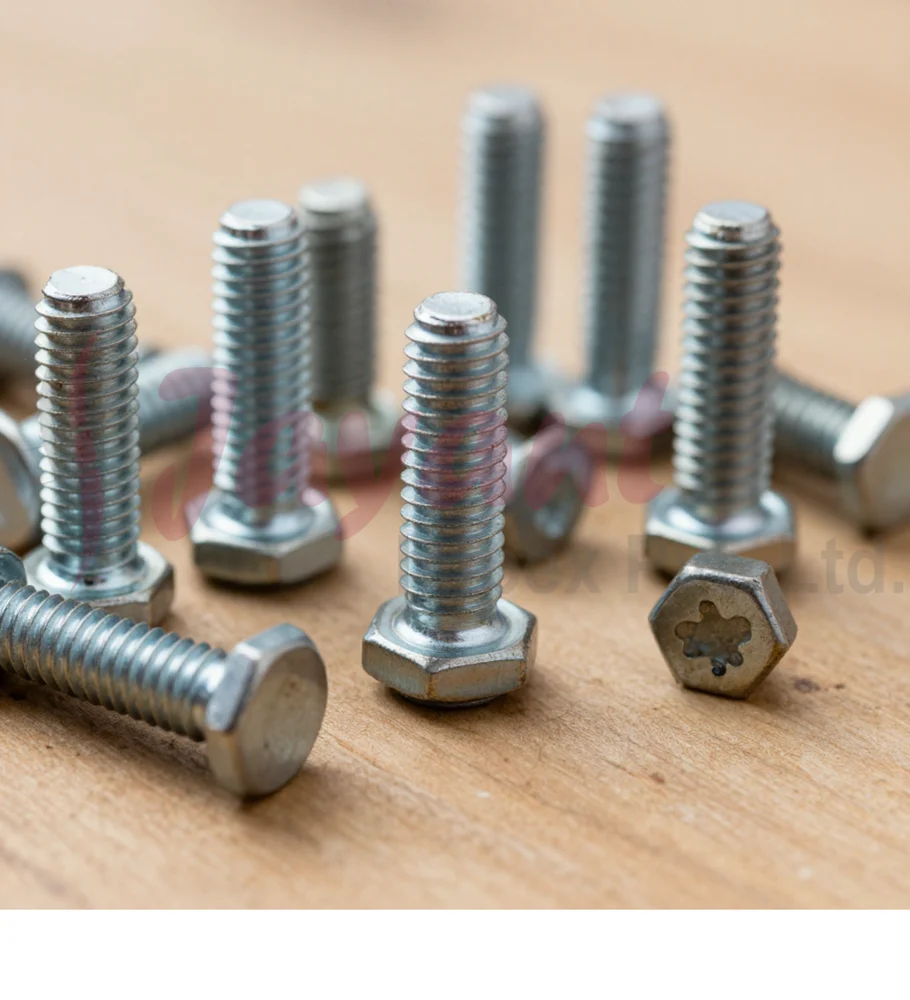

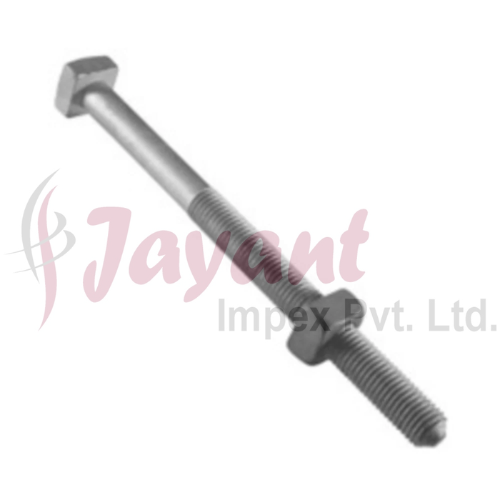

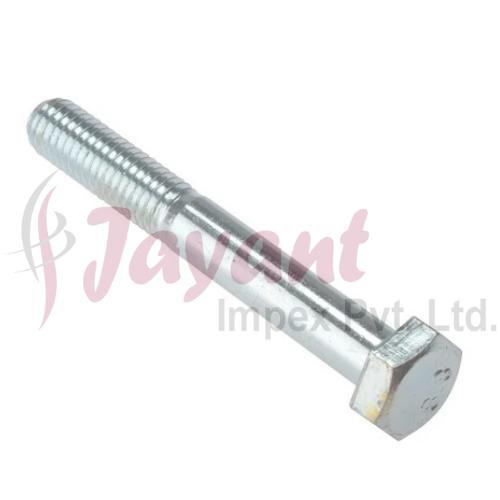

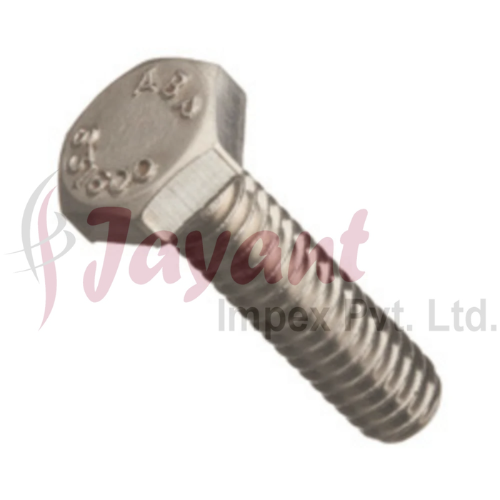

Industrial Machine Bolts

Product Description

Industrial machine bolts are the backbone of heavy equipment assembly, designed to handle high static and dynamic loads while maintaining structural integrity under vibration. Unlike general-purpose hardware, these are governed by strict international standards to ensure predictability in failure points.

1. High-Strength Grade Classifications

For industrial machinery, the selection almost always falls into the highest strength categories to minimize the size of the fastener while maximizing clamp force.

• Metric System (ISO 898-1):

  • Class 10.9: Comparable to Grade 8, common in automotive and heavy machinery.

  • Class 12.9: The highest standard metric grade, used for high-stress applications like cylinder heads and heavy hydraulic presses.

• Inch System (SAE J429):

  • Grade 5: Identified by three radial lines on the head; used for moderate heavy-duty applications.

  • Grade 8: Identified by six radial lines; the industrial standard for high-stress mechanical assembly.

2. Specialized Bolt Types for Machinery

Machine bolts are often specialized based on how they interface with the equipment:

• Socket Head Cap Screws (SHCS): Preferred in industrial design because the internal hex drive allows for high torque in recessed holes, saving space in compact assemblies.

• 12-Point Flange Bolts: Common in high-vibration environments. The flange acts as a built-in washer to distribute load, and the 12-point head allows for more contact surface area for the wrench.

• J-Bolts and U-Bolts: Used for anchoring machinery to foundations or securing piping systems to the machine frame.

• Structural Bolts (A325/A490): Used in the heavy frames of the machines themselves, designed for massive shear strength.

3. Critical Failure Factors in Industrial Settings

In a machine environment, a bolt rarely fails simply because it wasn't strong enough; it usually fails due to environmental or installation factors:

1. Fatigue: Continuous cycling (vibration) causes microscopic cracks. In machinery, pre-loading the bolt to a specific tension ensures the bolt "feels" less of the external cyclic load.

2. Hydrogen Embrittlement: High-strength bolts (Class 12.9 or Grade 8) are susceptible to becoming brittle if they are acid-pickled or electroplated without proper baking.

3. Vibration Loosening: Industrial machines often require secondary locking mechanisms such as:

   • Nord-Lock Washers: Wedge-locking pairs that use tension instead of friction.

   • Safety Wire: Physical wire threading through drilled bolt heads.

   • Pre-applied Adhesives: Chemical thread-lockers (e.g., Loctite).

4. International Material Equivalents

If you are maintaining or designing machinery for global markets, cross-referencing materials is vital to ensure the replacement bolt meets the original engineering spec.

5. Application Focus: Thermal Expansion

In high-temperature machinery (e.g., turbines or industrial ovens), the bolt material must match or complement the thermal expansion coefficient of the clamped parts. If the bolt expands faster than the flange, you lose clamp load; if it expands slower, the bolt may exceed its yield point and "stretch" permanently, leading to a leak or failure once cooled.
