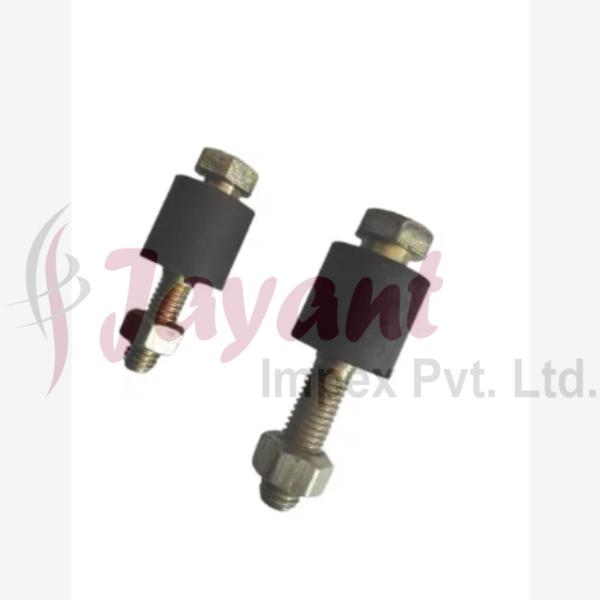

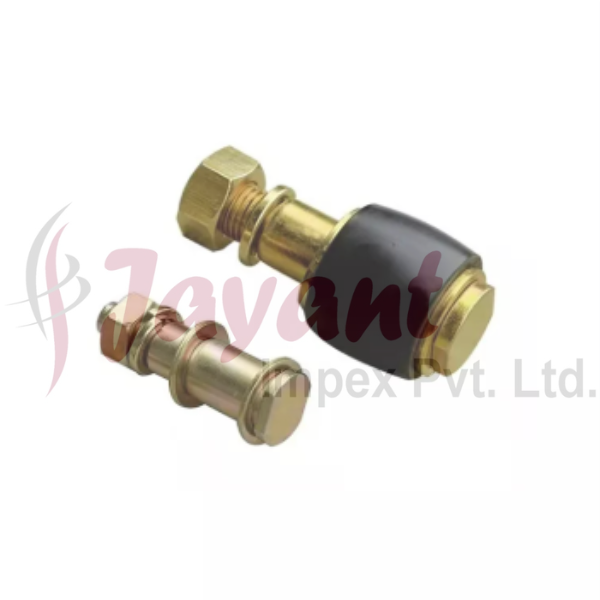

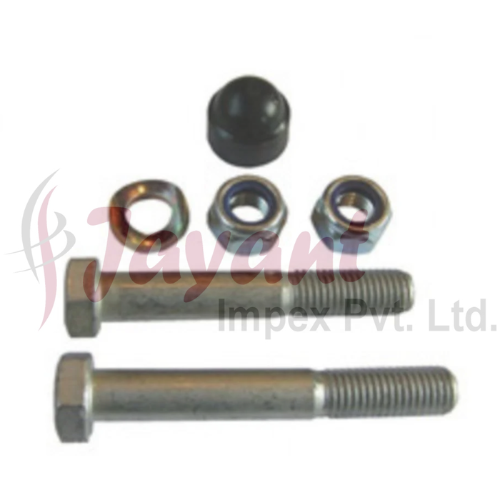

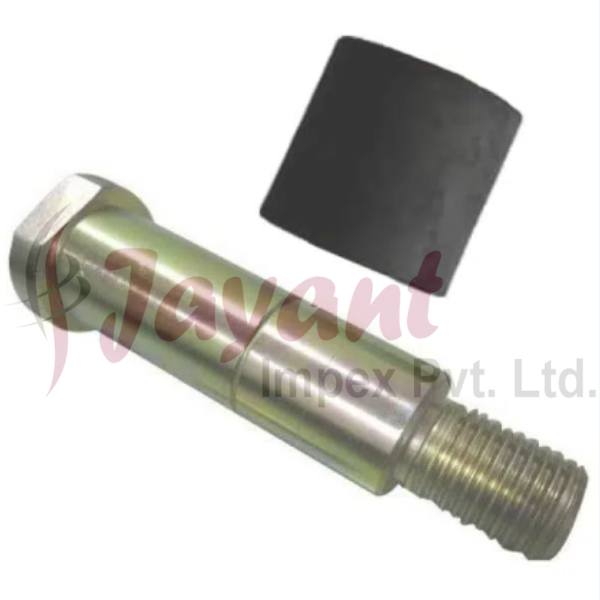

Coupling Bolt Industrial

Product Description

In industrial power transmission, coupling bolts are high-precision fasteners designed to connect two rotating shafts (such as a motor and a pump) via a coupling. Unlike standard structural bolts, coupling bolts are engineered to handle high torque, centrifugal forces, and often frequent starts and stops.

Because a failure in a coupling bolt can lead to catastrophic equipment damage, they are usually manufactured to much tighter tolerances than standard hardware.

Types of Industrial Coupling Bolts

1. Fitted Bolts (Reamed Bolts)

The most common type for high-torque applications. The shank of the bolt is precision-ground to fit into a reamed hole with very little clearance.

• Function: The tight fit ensures the bolt shares the shear load equally with other bolts in the flange.

• Benefit: Prevents "slop" or micro-movements that can lead to vibration, hole elongation, and eventual fatigue failure.

2. Shrouded Head / 12-Point Bolts

Often used in high-speed rotating equipment like turbines or compressors.

• Design: These often feature a 12-point (flange) head which allows for higher torque application and a smaller head profile to reduce windage and aerodynamic noise.

• Material: Usually high-strength alloy steels like AISI 4340 or 17-4 PH stainless steel for corrosion resistance.

3. Tapered Coupling Bolts

Used frequently in heavy industries like marine propulsion or large power plants.

• Design: The bolt shank is slightly tapered, fitting into a matching tapered hole in the coupling flange.

• Benefit: They are easier to install and remove than standard fitted bolts because they only become "tight" during the final stage of insertion.

Key Technical Specifications

Common Materials & Standards

Industrial coupling bolts often move beyond standard carbon steel to handle extreme environments:

• Alloy Steels: ASTM A193 Grade B7 or B16 for high-temperature and high-stress environments.

• Stainless Steels: A4-80 (316) for chemical processing or marine environments where rust could seize the coupling.

• Superalloys: Inconel or Monel for extreme thermal cycling or highly corrosive offshore applications.

Installation Best Practices

1. Torque Tensioning: Most industrial couplings require specific torque patterns (star pattern) to ensure even clamping pressure.

2. Safety Wiring/Locking: Because of constant vibration, coupling bolts are often secured with safety wire, anaerobic lockers (like Loctite), or specialized wedge-locking washers (e.g., Nord-Lock).

3. Matched Sets: When replacing a bolt on a balanced coupling, it is often necessary to replace the entire set to maintain the rotational balance of the assembly.
