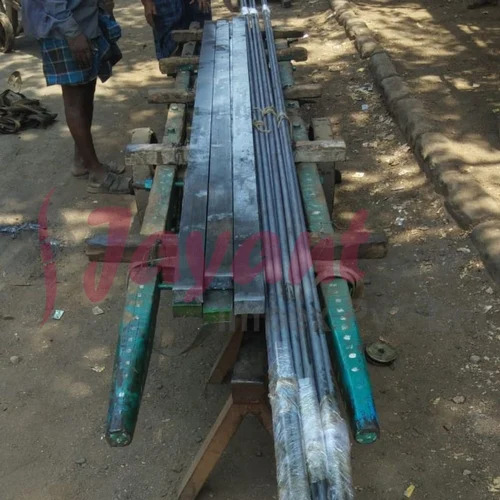

x40MnCr18 Cr-Mn-N Steel Round Bar

Product Description

X40MnCr18 (Material Number 1.3815) is a non-magnetic, austenitic steel that sits right in the middle of the high-nitrogen "generator steel" family. It is essentially the standard-carbon version of the high-manganese chromium alloys you've been looking at.

While it lacks the specific nitrogen-boosting designation in its shorthand name (like the "N" in X55MnCrN18-4), it still utilizes a combination of manganese and nitrogen to maintain its stable austenitic structure.

Technical Profile: 1.3815 (X40MnCr18)

This grade is defined by its high manganese content, which replaces nickel as the primary austenite stabilizer. This makes it an "economical" stainless alternative for applications where magnetism must be avoided but high-end corrosion resistance isn't the top priority.

Key Characteristics

• Magnetism: It is strictly non-magnetic. Its relative physical permeability ($\mu_r$) remains near 1.0, making it ideal for electrical housing and components that sit near high-voltage coils.

• Mechanical Strength: Through cold working, X40MnCr18 can achieve very high yield strengths. In the solution-annealed state, it is relatively ductile, but it work-hardens rapidly.

• Wear Resistance: Like many high-manganese steels (similar to Hadfield steel), it has excellent resistance to abrasive wear because the surface hardens significantly under impact or friction.

Common Applications

X40MnCr18 round bars are frequently used in the following sectors:

1. Power Plant Engineering: For components like spacer rings and clamping plates in large generators and motors.

2. Cryogenic Technology: It retains its toughness at extremely low temperatures, unlike carbon steels which become brittle.

3. Measurement Technology: Housing for sensitive electronic sensors that would be disrupted by magnetic materials.

4. Oil & Gas: Non-magnetic drill string components (though 1.3818 is often preferred for higher-stress environments).

Comparison: X40MnCr18 (1.3815) vs. X55MnCrN18-4 (1.3817)

The primary difference lies in the Carbon and Chromium balance:

• 1.3815 (X40) has slightly lower carbon than the X55 variant, which can make it slightly easier to machine before it work-hardens.

• 1.3817 (X55) is generally pushed toward even higher strength requirements in generator retaining rings.

Fabrication Tips

• Cutting: Use low cutting speeds and high feed rates. If you let the tool "rub" without cutting, the material will work-harden to the point where the tool will burn up.

• Heat Treatment: This steel is typically solution annealed at 1000°C – 1050°C followed by rapid quenching in water to ensure the austenitic structure is fully "locked in."
