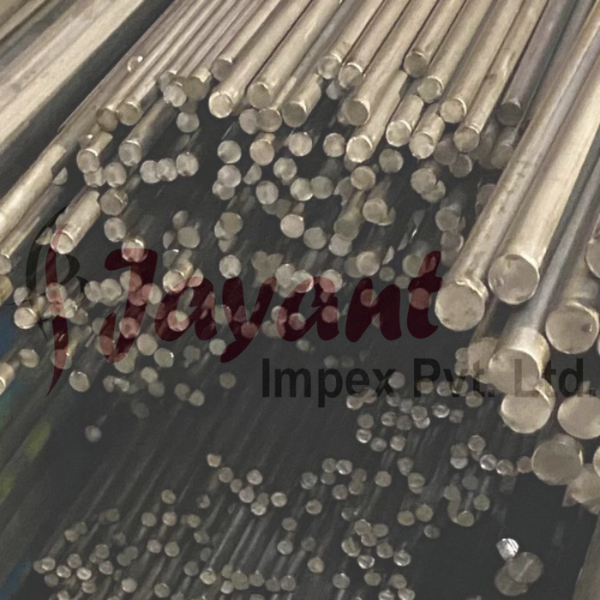

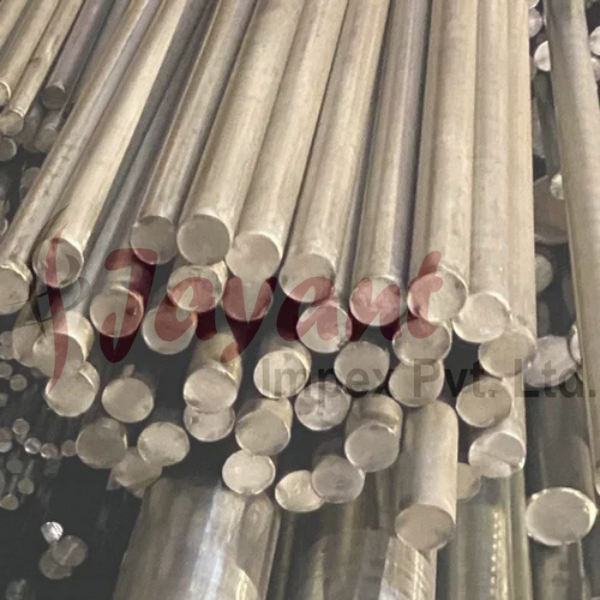

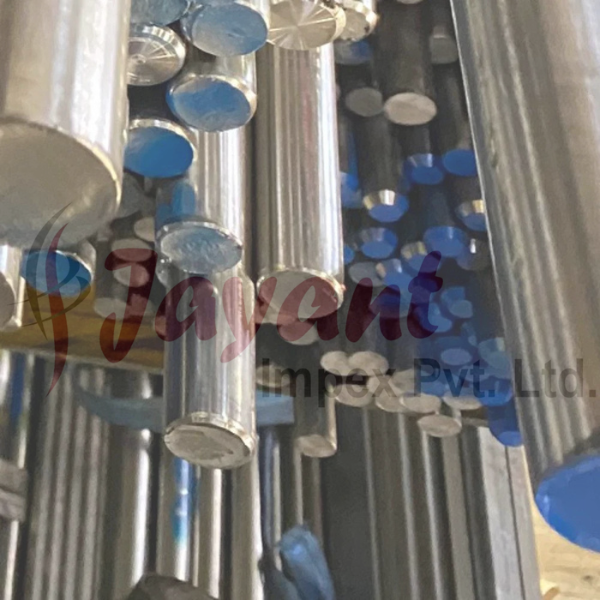

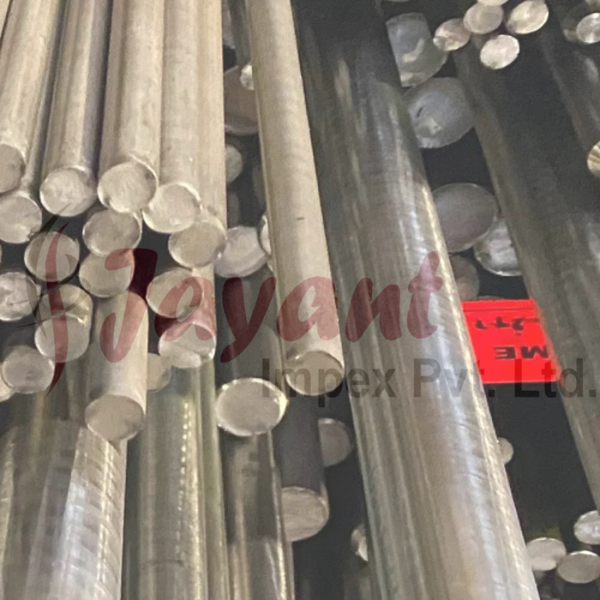

UNS S29225 Cr-Mn-N Steel Round Bar

Product Description

UNS S29225 is a high-strength, non-magnetic austenitic stainless steel. Much like other Cr-Mn-N (Chromium-Manganese-Nitrogen) alloys, it is engineered to provide a stable austenitic structure and high mechanical performance without relying heavily on expensive nickel.

Core Technical Overview

The defining characteristic of S29225 is the use of Nitrogen as a powerful austenite stabilizer and strengthening agent. This allows the material to achieve yield strengths significantly higher than standard 300-series stainless steels while remaining completely non-magnetic, even after severe cold working.

Chemical Composition

The balance of Chromium and Manganese ensures corrosion resistance and phase stability:

Mechanical Properties

S29225 is noted for its excellent "strength-to-weight" ratio compared to standard austenitics.

• Yield Strength ($0.2\%$ Offset): Typically $\geq 450$ MPa (nearly double that of 316L).

• Tensile Strength: $\geq 800$ MPa.

• Magnetic Permeability: $\mu \leq 1.01$ (remains non-magnetic under high stress).

• Ductility: Maintains high elongation ($\geq 30\%$) despite its high strength.

Key Applications

Due to its unique combination of zero magnetism and high physical toughness, S29225 round bars are primarily used in:

1. Oil & Gas: Non-magnetic drill collars (NMDC) and housing for MWD (Measurement While Drilling) tools, where magnetic interference would disrupt directional sensors.

2. Medical Imaging: Structural components for MRI rooms and scanners.

3. Electrical Engineering: Retaining rings for generators and components for high-voltage transformers where eddy current losses must be minimized.

4. Marine Hardware: Fasteners and shafts for specialized naval vessels requiring low magnetic signatures.

Comparison: S29225 vs. Standard 316L

While 316L is the "workhorse" of stainless steel, S29225 offers distinct advantages for specific engineering challenges:

• Magnetism: 316L can become slightly magnetic when cold-worked or welded; S29225 stays inert.

• Strength: S29225 allows for thinner, lighter components due to its higher base yield strength.

• Cost: By replacing a large portion of Nickel with Manganese and Nitrogen, S29225 can offer more stable pricing during nickel market volatility.
