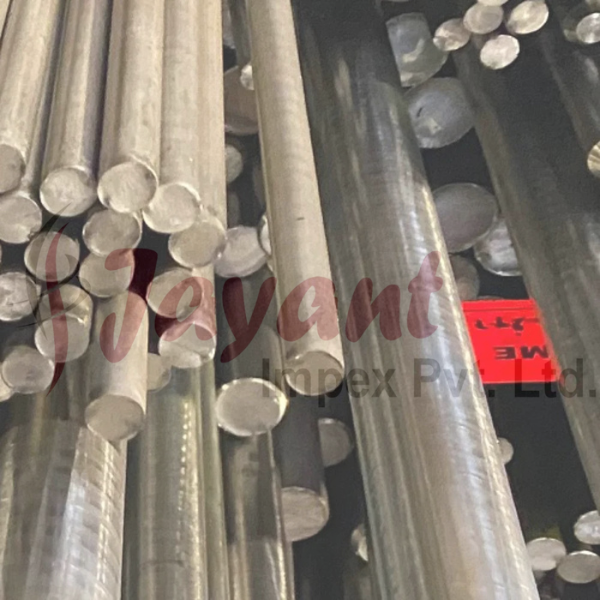

UNS N09925 Inconel Round Bars

Product Description

UNS N09925 (universally known as Incoloy 925 or Alloy 925) is an advanced, precipitation-hardenable (age-hardenable) nickel-iron-chromium superalloy.

While it shares an identical foundational chemistry for corrosion resistance with its sibling alloy N08825 (Incoloy 825), UNS N09925 includes precise additions of Titanium and Aluminum. This allows the material to undergo a gamma-prime precipitation heat treatment, delivering up to three times the yield strength of standard annealed 825 while retaining superb resistance to highly corrosive media.

Chemical Composition (Weight % per ASTM B637 / API 6ACRA)

The chemistry of UNS N09925 is engineered to cross the bridge between structural high strength and multi-acid resistance.

Micro-Metallurgical Mechanisms:

• $\gamma'$ (Gamma-Prime) Strengthening: The 1.92.4% Titanium paired with Aluminum reacts during the aging cycle to form sub-microscopic intermetallic precipitates $[\text{Ni}_3(\text{Al, Ti})]$. These precipitates pin dislocations within the matrix, drastically multiplying the alloy's structural load capacities.

• Chloride & Hydrogen Defense: High nickel protects against chloride-ion stress corrosion cracking (SCC), while the combination of molybdenum and copper limits pitting and crevice localized attacks in reducing chemical solutions.

Material Standards & Classifications

Round bars made from UNS N09925 are manufactured, tested, and certified to stringent heavy-industrial frameworks:

• UNS: N09925

• ASTM / ASME: B637 / SB637 (Precipitation-Hardening Nickel Alloy Bars, Forgings, and Forging Stock)

• API Standard: Compliance with API 6ACRA (highly controlled processing specifications for age-hardened nickel alloys utilized in oil and gas production).

• NACE Compliance: Thoroughly approved under NACE MR0175 / ISO 15156 for sour service ($H_2S$ bearing reservoirs), with a maximum hardness cap typically enforced at 38 HRC or 40 HRC depending on cold-work history.

Mechanical Performance Comparison (Room Temperature)

The dramatic impact of age hardening on UNS N09925 round bars is shown below when comparing the baseline annealed state to the final hardened condition:

Heat Treatment Parameters

To develop the required microstructures for downhole environments, round bars undergo a multi-step heat treatment:

1. Solution Annealing: Heated between 980C and 1040C (1800F1900F) to dissolve all precipitating phases into solid solution, followed by a water quench (mandatory for bar diameters exceeding 25mm).

2. Primary Age Hardening: Heated to 730C 750C (1350F1385F) and soaked for 8 hours.

3. Controlled Cooling: Furnace cooled at a slow, controlled rate of roughly 55C/hr down to 610C 630C (1150F), held for an additional 8 hours, and finally air cooled to room temperature.

  Machining & Fabrication Guidance

• Sequential Processing: Because N09925 is highly resilient and tough in its aged state, it is strongly advised to perform rough machining and major metal removal while the bar is still in the soft, solution-annealed state. Final precision finishing should be executed post-aging.

• Tooling Metrics: When turning aged N09925 using carbide tooling, reduce cutting speeds significantly (typically 1230 m/min) and utilize deep, continuous cuts with heavy positive rake geometries to avoid rubbing or work-hardening the skin ahead of the tool.

Primary Applications for N09925 Round Bars

Because it can carry massive structural torque and tension while resisting cracking in environments laden with $\text{H}_2\text{S}$, chlorides, and elemental sulfur, N09925 round bars are manufactured into:

• Downhole Petroleum Hardware: High-strength tool joints, packers, polished bore receptacles, sub-surface safety valves, landing nipples, and mandrel assemblies.

• Severe Valve Assemblies: Wellhead gate valves, valve stems, internal trim components, and high-pressure chokes.

• Heavy-Duty Structural Fasteners: High-tensile studs and bolting configurations operating on offshore marine platforms and subsea production trees.

• Marine Shafting: High-yield pump shafting and marine propulsion assemblies subjected to highly localized crevice corrosion threats.
