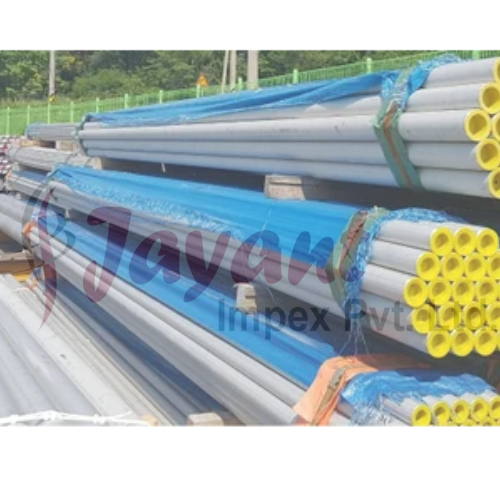

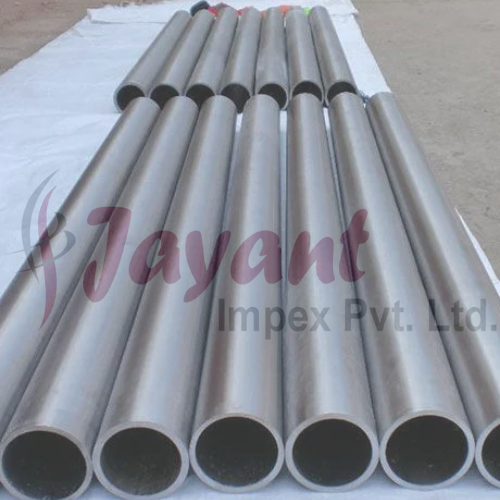

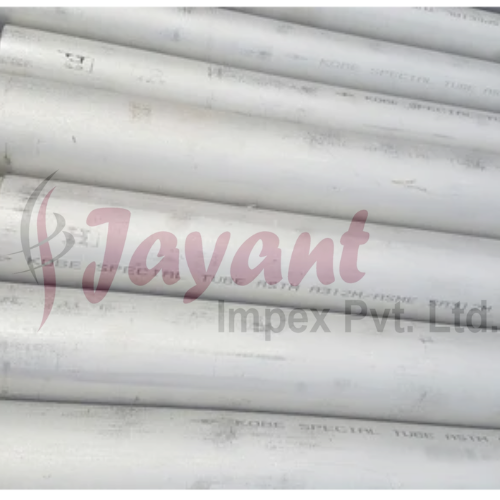

Stainless Steel Pipes
300.0 INR/Piece
Product Details:
- Sealing Type Metallic
- Tolerance 0.1 mm
- Connection Type Plain End, Beveled End, Threaded End
- Yield Strength 205 - 450 MPa
- Coating Type No external coating (natural polished surface)
- Bend Radius Minimum 2.5 x outer diameter
- Tensile Strength 515 - 750 MPa
- Click to view more
X
Stainless Steel Pipes Price And Quantity
- 300.0 INR/Piece
- 1 Piece
Stainless Steel Pipes Product Specifications
- -196C to 870C
- Plain End, Beveled End, Threaded End
- 205 - 450 MPa
- 1 mm to 20 mm
- ASTM A312 / A213 / A269 / A554
- Circular
- 1 to 6 meters, custom lengths available
- 6 mm to 630 mm
- Welded / Seamless
- NPT, BSPT
- Polished
- Stainless Steel
- Rigid
- Stainless Steel Pipes
- 6 mm to 630 mm
- 304, 316, 202, 310, 321, 347 and others
- Minimum 2.5 x outer diameter
- No external coating (natural polished surface)
- 0.1 mm
- Chemical Industry, Oil & Gas, Food Processing, Construction, Automotive
- Up to 6000 psi
- 515 - 750 MPa
- Industrial, Construction, Architectural
- Metallic
- Round
- Silver
- Ready Stock / As per Order
- Excellent
- Up to 870C
- 7.9 g/cm3
- HDPE Bags / Wooden Boxes / Bubble Wrap
- Low
- Excellent
- Non-magnetic (Type 304, 316)
- Straight Length, U-bend on demand
- Smooth, Deburred
- Welded, Seamless, ERW, EFW
Product Description
Stainless steel (SS) pipes are widely used across industrial, commercial, and residential applications due to their exceptional corrosion resistance, durability, heat tolerance, and hygiene standards.
1. Common Stainless Steel Grades
| Grade | Key Characteristics | Best Used For |
| SS 304 / 304L | Standard austenitic grade; excellent general corrosion resistance. "L" variant has lower carbon for better weldability. | Water supply, food & dairy processing, architectural handrails, light industry. |
| SS 316 / 316L | Contains 23% molybdenum for enhanced protection against chlorides and salts. | Marine environments, chemical processing, pharmaceuticals, coastal installations. |
| SS 310 / 310S | High chromium and nickel content; superior resistance to oxidation at elevated temperatures. | Furnaces, heat exchangers, high-temperature exhaust and burner parts. |
| SS 321 / 347 | Titanium (321) or Niobium (347) stabilized to prevent intergranular corrosion during heating. | Aircraft exhaust, refinery piping, high-temp chemical processing. |
| Duplex (e.g., 2205) | Mixed austenitic-ferritic structure; double the yield strength of 304/316 and high pitting resistance. | Offshore oil & gas platforms, desalination plants, heavy chemical tankers. |
2. Manufacturing Types
-
Seamless Pipes: Extruded from solid round steel billets with no weld seam. Ideal for high-pressure, high-temperature, or critical environments.
-
Welded Pipes (ERW / EFW / SAW): Formed from flat steel sheets or coils and welded longitudinally. Cost-effective and widely used for moderate-pressure and structural systems.
3. Sizing and Pressure Standards
-
Nominal Pipe Size (NPS / NB): Defines the standard nominal size (e.g., $1/2"$, $1"$, $2"$, $4"$).
-
Pipe Schedule (Wall Thickness): Designated by schedule numbers (e.g., SCH 5S, SCH 10S, SCH 40S, SCH 80S).
-
The suffix "S" denotes stainless steel dimensions under ASME/ANSI B36.19.
-
Higher schedule numbers indicate thicker walls, enabling higher pressure tolerance.
-
-
Key Standards:
-
ASTM A312 / ASME SA312: Standard specification for seamless, welded, and heavily cold worked austenitic stainless steel pipes.
-
ASTM A269 / A213: Tubes for general service, boilers, and heat exchangers.
-
ASTM A554: Stainless steel tubing for mechanical and decorative applications.
-
