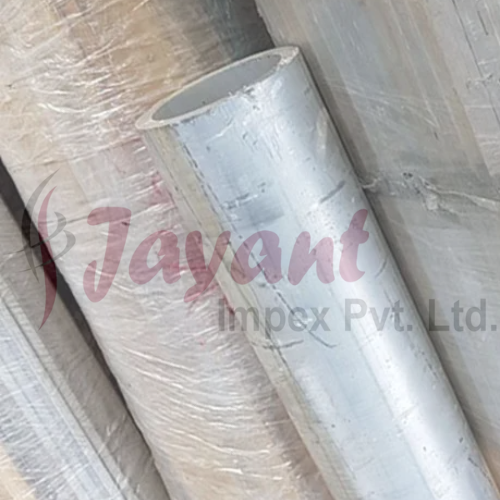

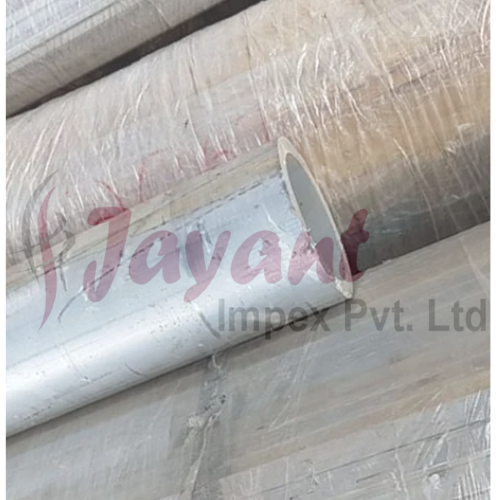

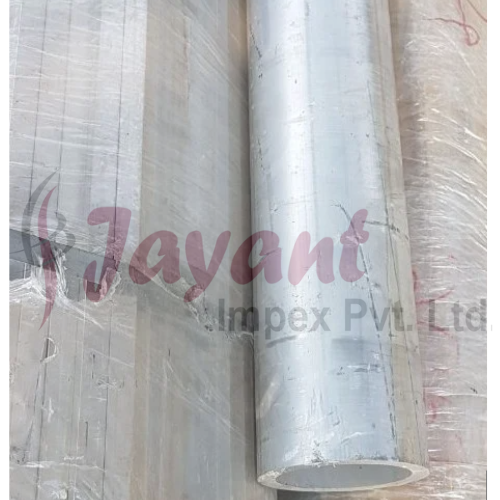

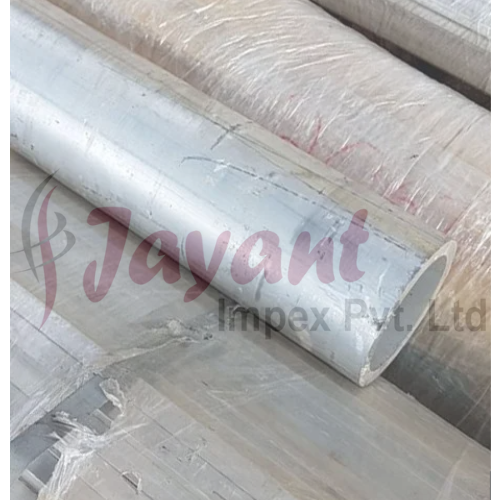

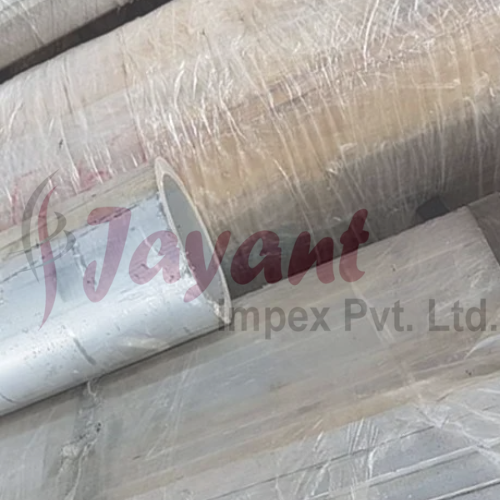

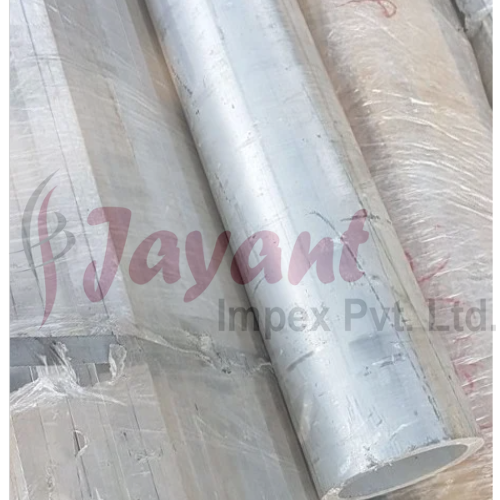

Aluminium ENAW-AlMgSi Pipes & Tube (EU EN, DIN, WNR)

Product Description

The designation EN AW-AlMgSi represents the foundational family of heat-treatable aluminum-magnesium-silicon alloys under the European Normative system. Within European (EN) and German (DIN/WNr) standards, this exact phrasing typically functions as the broad umbrella term for two tightly related, overlapping grades specified for high-quality pipes, tubes, and hollow profiles:

1. EN AW-6060 (AlMgSi / WNr 3.3206): Engineered with slightly lower alloying elements for maximum extrudability of intricate, ultra-thin-walled tubes.

2. EN AW-6063 (AlMg0.7Si / WNr 3.32206): Formulated with a marginally higher magnesium content to provide elevated structural strength while maintaining an exceptional surface finish.

Technical Standards & Cross-Reference

When sourcing EN AW-AlMgSi piping materials within Europe, production, sizing, and quality controls are governed by a specific matrix of European Norms:

• EN 573-3: Regulates the precise chemical composition limits for wrought aluminum alloys.

• EN 755-2: Dictates the mandatory mechanical property limits for extruded bars, tubes, and structural profiles.

• EN 755-7: Specifies dimensional and shape tolerances for seamless extruded tubes (critical for high-reliability pressure and fluid lines).

• EN 755-8: Specifies dimensional tolerances for porthole/structural tubes (ideal for general framing, architectural trims, and hollow geometries).

Nominal Chemical Composition Matrix

The AlMgSi family relies on the precise balance of Magnesium ($Mg$) and Silicon ($Si$) to form magnesium silicide ($Mg_2Si$). This intermetallic compound responds directly to thermal aging, boosting the alloy's mechanical strength.

Mechanical Properties by Temper (EN 755-2)

The mechanical capability of an AlMgSi tube scales significantly depending on its thermal temper. Below are the standard mechanical specifications for tube wall thicknesses $\le 5 \text{ mm}$:

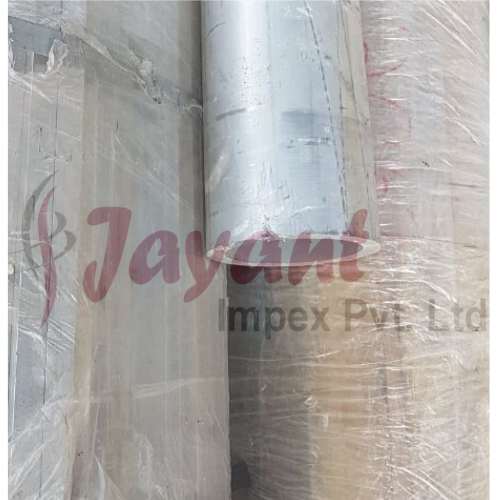

EN AW-6060 (AlMgSi)

• T4 (Naturally Aged): Tensile Strength $R_m \ge 120 \text{ MPa}$ | Yield Strength $R_{p0.2} \ge 60 \text{ MPa}$ | Elongation $A \ge 16\%$

• T6 (Artificially Aged): Tensile Strength $R_m \ge 190 \text{ MPa}$ | Yield Strength $R_{p0.2} \ge 150 \text{ MPa}$ | Elongation $A \ge 8\%$

• T66 (Proprietary Enhanced Aging): Tensile Strength $R_m \ge 215 \text{ MPa}$ | Yield Strength $R_{p0.2} \ge 160 \text{ MPa}$ | Elongation $A \ge 8\%$

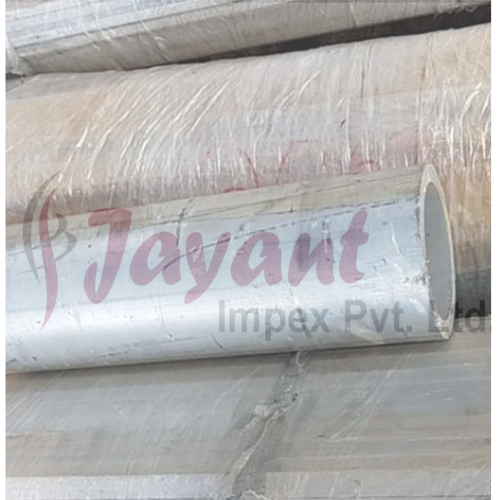

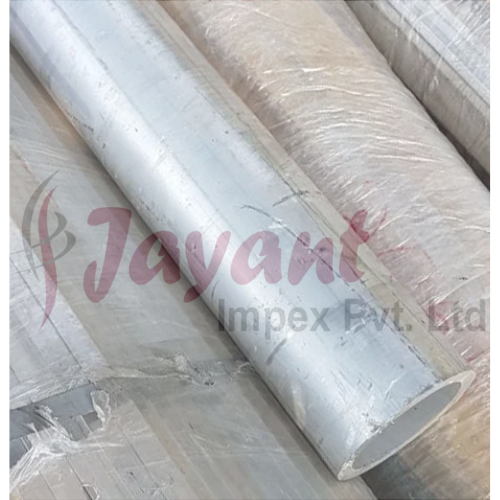

EN AW-6063 (AlMg0.7Si)

• T4 (Naturally Aged): Tensile Strength $R_m \ge 130 \text{ MPa}$ | Yield Strength $R_{p0.2} \ge 65 \text{ MPa}$ | Elongation $A \ge 14\%$

• T6 (Artificially Aged): Tensile Strength $R_m \ge 215 \text{ MPa}$ | Yield Strength $R_{p0.2} \ge 170 \text{ MPa}$ | Elongation $A \ge 8\%$

Critical Engineering & Fabrication Insights

1. Seamless vs. Porthole Tube Selection

• Seamless Tubes (Mandrel Extrusion): The metal is extruded over a mandrel without splitting. Because there are no internal structural weld lines, seamless AlMgSi tubing is required for high-pressure fluid transport, pneumatic lines, or components undergoing severe flaring or bending.

• Porthole Tubes (Bridge Die Extrusion): The material splits around a die bridge and fuses back together inside the tooling. This creates longitudinal solid-state seam lines. It is highly cost-effective and perfectly suited for structural frames, balustrades, architectural columns, and low-pressure conduit.

2. The Heat-Affected Zone (HAZ) Welding Phenomenon

Both 6060 and 6063 AlMgSi grades are easily welded using standard TIG (GTAW) or MIG (GMAW) processes, typically utilizing 4043 (AlSi5) or 5356 (AlMg5) filler metal.

Design Note: The high heat from welding works as a localized annealing process, creating a Heat-Affected Zone (HAZ) surrounding the joint. In this zone, a T6-tempered tube will experience a significant drop in yield strength (often up to 30–40% loss), reverting closer to a T4 baseline state. Structural calculations must account for this joint softening.

3. Surface Quality & Anodizing Compatibility

The AlMgSi alloy family is world-renowned for its response to anodizing. It is regularly ordered under Anodizing Quality (AQC) standards to guarantee a defect-free, uniform surface. It accepts clear, color, and hard-coat anodizing beautifully without the graying or structural streaking often observed in higher-strength 2000 or 7000 series aluminum alloys.

Primary Applications

• Fluid and Air Delivery: Low-pressure hydraulic circuits, compressed air distribution networks, and irrigation lines.

• Electrical Infrastructure: Heavy-duty electrical bus conduits and heat-dissipating enclosures, exploiting the material’s high thermal conductivity ($\approx 200 \text{ W/m·K}$).

• Structural & Architectural Design: Precision sliding window rails, interior furniture skeletons, modular structural framing systems, and exterior facade supports.
