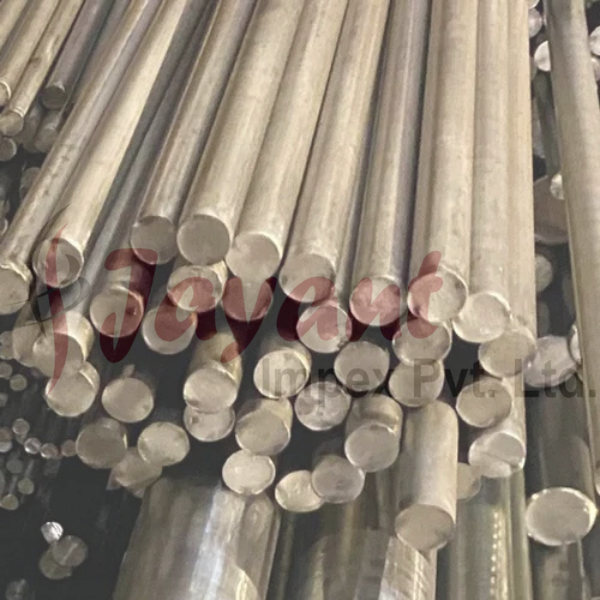

MIL-STD-2154 CL A Steel Round Bar, MIL-STD-2154 CL A Alloy Steel Rods, Bars(Nickel Cobalt Aircraft)

Product Description

Unlike the alloy specifications you've looked at previously (like AMS, BMS, or MM-S), MIL-STD-2154 Class A is not a material grade or steel composition. Instead, it is an elite military defense and aerospace ultrasonic testing standard that dictates how internally flawless a piece of metal must be.

When a supplier lists "MIL-STD-2154 CL A Steel Round Bar (Nickel Cobalt Aircraft)," they are describing a premium materialmost commonly HP 9-4-30 / Lescalloy (from AMS 6524, BMS-7-182, or MM-S-2102)that has successfully passed the absolute highest level of subsurface acoustic inspection required for flight-safety components.

1. What does MIL-STD-2154 Class A Mandate?

MIL-STD-2154 ("Military Standard: Ultrasonic Inspection, Process for") establishes exactly how an ultrasonic transducer must scan a metal bar to catch microscopic hidden defects (such as internal voids, cooling cracks, bursts, or non-metallic inclusions) before it is machined into an aircraft part.

The Standard Acceptance Criteria (Class A)

Class A is traditionally the most stringent baseline standard for structural bar stock. To pass, the material must hit these ultrasonic response thresholds when compared against a machined reference standard block:

2. Why "Nickel Cobalt Aircraft" Alloys Require This Test

Ultra-high-strength steel grades like HP 9-4-30 (9% Nickel, 4% Cobalt) are designed to withstand explosive ballistic impact, massive landing gear shock loads, and high-cyclic fatigue.

• The Fatigue Risk: At tensile strengths of 220,000 to 240,000 psi (15171655 MPa), steel becomes highly sensitive to minute internal focal points. If a microscopic pore or inclusion is trapped inside the core during manufacturing, localized stress concentration will rapidly turn that pore into a propagating fatigue crack under flight loads.

• The Melting Solution: To meet MIL-STD-2154 Class A, these alloys must be produced via premium Vacuum Induction Melting + Vacuum Arc Remelting (VIM-VAR). The multi-stage vacuum refining distills out gases (hydrogen, oxygen, nitrogen) and strips away trace impurities, ensuring the steel matrix is clean enough to pass the acoustic scan.

3. Product Supply & Condition

When ordering or sourcing round bars, rods, or rectangular bars certified to this standard:

• Surface Prep for Inspection: For the ultrasonic waves to accurately penetrate the material without scattering, the bar surface cannot be rough. Bars are typically supplied as centerless turned, peeled, smooth-turned, or cold-finished.

• Material State: Most often tested and shipped in the annealed or normalized & tempered condition, allowing for smooth machining before the end-user performs the final hardening and tempering cycles.

• Documentation: Shipment of these bars requires a certified NDT (Non-Destructive Testing) report specifically detailing the calibration block used, transducer frequency (typically $2.25\text{ to }10\text{ MHz}$), and explicit sign-off certifying compliance with MIL-STD-2154 Class A (or its modern commercial equivalent, AMS 2154 Class A).

4. Typical Component Destinations

If a round bar is ordered as a Nickel-Cobalt aircraft alloy evaluated to MIL-STD-2154 Class A, it is bound for components where structural failure means losing the aircraft:

• Primary Structural Pins: Wing attachment joints, swing-wing pivots, and main fuselage tie-rods.

• Drivetrain Elements: Helicopter rotor shafts, high-torque input pinions, and engine accessory shafts.

• Actuation Mechanisms: Heavy-duty military hydraulic landing gear cylinders and ballistic protection struts.
