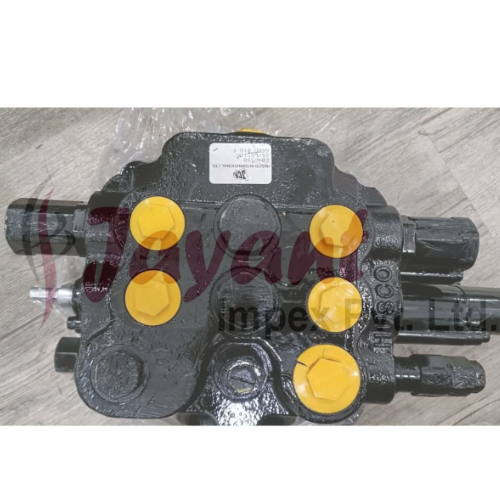

Jcb Control Valve / Jcb 3dx Extra Hydraulic Control Valve

Product Description

In a JCB 3DX or JCB 3DX Xtra backhoe loader, the Hydraulic Control Valve Block (often engineered by manufacturers like Husco or Parker) acts as the central brain of the machines heavy fluid power. It distributes high-pressure hydraulic oil from the pump to the various rams and cylinders that control your front loader arms, rear excavator bucket, swing boom, and stabilizers.

The JCB 3DX Xtra model features advanced auxiliary lines or multiple spool configurations designed to handle extreme earthmoving tasks safely and efficiently.

Technical Differences: Standard 3DX vs. 3DX Xtra Valve Block

Understanding how the control valve blocks change between models is critical for troubleshooting or purchasing parts:

• The Standard JCB 3DX Block: Typically utilizes a dual-section setupa 2-spool loader valve at the front (for bucket lift and tilt) and a 6-spool excavator valve at the rear (for boom, dipper, bucket, swing, and stabilizers).

• The JCB 3DX Xtra Block: Specifically incorporates extra auxiliary sections or spool configurations (often 7-spool lines or specialized sub-valves). This allows the Xtra model to route fluid to optional attachments like hydraulic rock breakers, augers, or extending dipper arms (Extradig).

Core Internal Valves & Components

When a complete valve block exhibits pressure drop issues, it is rarely the solid cast iron block casing that fails. Instead, specific internal relief cartridge valves or moving spools require replacement:

1. Pressure Regulation & Protection

These cartridges thread directly into the main valve block body to control overall circuit limits.

• Main Relief Valve (MRV): Protects the hydraulic pump and the entire system from catastrophic over-pressurization. The Main Relief Valve 3Dx (Mrv 3Dx) regulates limits up to 3300 PSI, protecting lines from bursting during heavy excavation.

• Auxiliary Relief Valve (ARV): The Auxiliary Relief Valve(Arv) (Extra Hydro Control Jcb) is engineered directly for the auxiliary lines of the 3DX/3CX. It handles localized pressure spikes in the extra hydraulic control circuit when running high-impact attachments like breakers.

• Unloader Valve (UV): The Unloader Valve 3Dx (U.V 3Dx) automatically shifts or diverts oil flow back to the reservoir tank when system pressure hits its peak, preventing engine stall and reducing unneeded load during transport.

• 2. Spools and Seals

  The physical moving metal components that route the fluid.

  • Control Valve Spools: Long cylindrical steel rods machined out of hardened steel alloys (like EN8D or 8620 steel) with a typical hardness of 60 HRC. Turning a cabin hand lever slides the spool linearly, uncovering fluid ports to actuate the ram.

  • Spool Seal Kits: Rubber O-rings and polyurethane wipers that fit at the end of each spool section to prevent hydraulic oil from weeping out onto the cabin floor or machine chassis.

  Maintenance & Troubleshooting Signs

  If your JCB 3DX Xtra is losing power or controls feel sluggish, verify these symptoms:

  Hydraulic Symptom	Likely Valve Culprit	Technical Cause
  Loader/Backhoe Drift (Arms slowly sink down on their own)	Internal Spool Wear or failing check valve	The hardened steel spool or cast housing has scratched/scured, allowing oil to bypass the seal under weight.
  Complete Loss of Hydraulic Power	Blown Main Relief Valve (MRV)	The MRV internal spring has weakened or debris is stuck in its seat, causing all pump pressure to dump back to the tank.
  Jerky or Erratic Operation	Air in system or sticking Spool	Rust pitting or varnish buildup along the spool surface prevents smooth sliding inside the bore.
