Stainless Steel Eye Bolt / Eye Bolts

Product Description

Stainless steel eye bolts are essential for rigging and lifting in environments where moisture, salt, or chemicals would rapidly degrade standard carbon steel. However, because stainless steel is typically less "strong" (in terms of tensile yield) than high-strength alloy steels, choosing the correct type and understanding its loading limits is critical for safety.

1. Material Grades for Eye Bolts

The choice between the two main stainless grades usually comes down to the severity of the environment:

• 304 Stainless (A2): The standard choice for general outdoor use, architectural rigging, or factory environments. It offers good corrosion resistance but can suffer from "pitting" if exposed to salt spray or de-icing salts.

• 316 Stainless (A4): Often called "Marine Grade." It contains 2-3% molybdenum, which provides superior resistance to chlorides and acids. This is the only grade recommended for permanent installation near saltwater or in chemical processing plants.

2. Functional Types: Shoulder vs. Plain

The physical design of the eye bolt determines how it can be loaded safely.

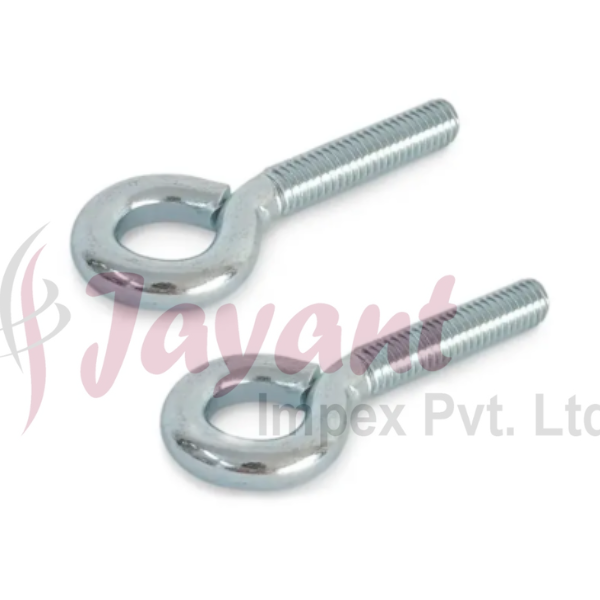

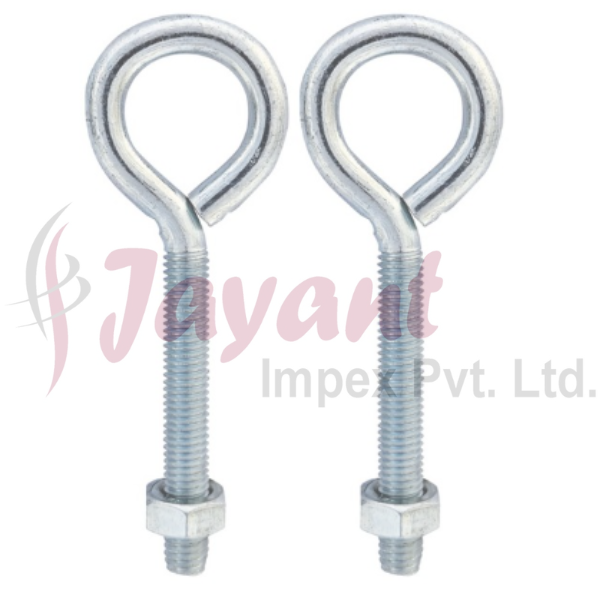

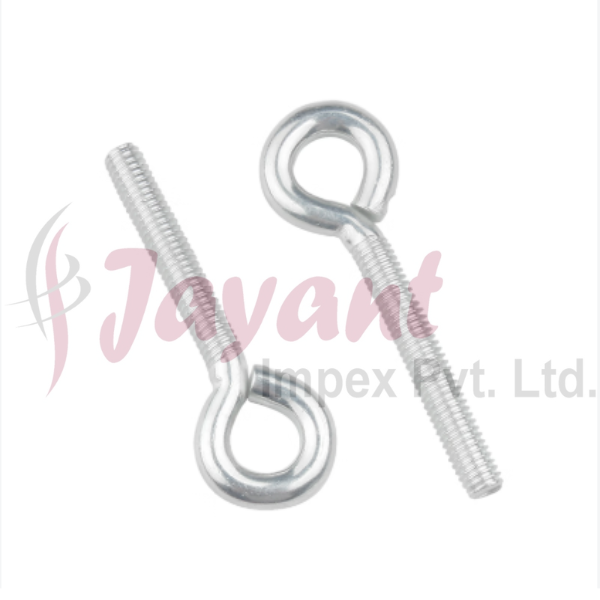

• Plain (Regular) Eye Bolts: These lack a shoulder at the base of the eye. They are strictly for vertical (axial) lifting. If loaded at an angle, the shank is prone to bending or snapping at the first thread.

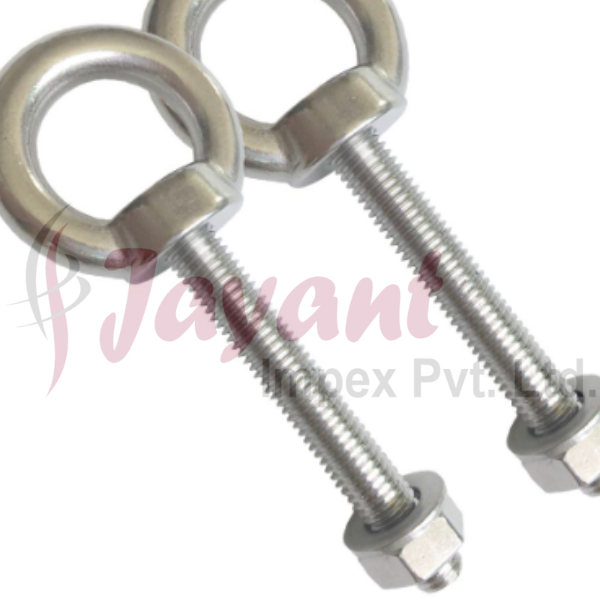

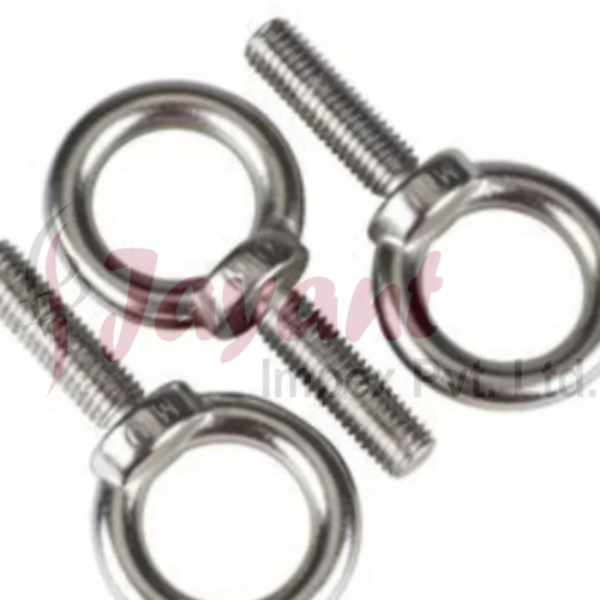

• Shouldered Eye Bolts: These feature a reinforced "collar" or shoulder that seats flush against the mounting surface. The shoulder supports the eye against lateral forces, allowing for angled lifts (up to 45 degrees), though with a reduced Working Load Limit (WLL).

3. Load Limits and Safety Factors

Stainless steel eye bolts generally have a 5:1 safety factor, meaning their Minimum Breaking Load (MBL) is five times the rated Working Load Limit (WLL).

4. Critical Installation Requirements

To achieve the rated WLL, the eye bolt must be installed correctly:

1. Flush Seating: For shouldered bolts, the shoulder must be in 100% contact with a flat, machined surface. If there is a gap, the bolt will fail under lateral load.

2. Thread Engagement: Minimum engagement should be 1.5 times the bolt diameter in steel, and up to 3 times the diameter in softer materials like aluminum.

3. Orientation: The plane of the eye must be aligned with the direction of the pull. If the pull is "sideways" relative to the eye's opening, the bolt's strength is severely compromised.

4. Anti-Seize: Stainless-on-stainless threads are highly prone to galling (cold-welding). Always use a nickel-based anti-seize lubricant during installation.

5. Standards to Look For

When purchasing for lifting applications, ensure the bolts are "Rated" and meet one of the following specifications:

• DIN 580: The European standard for lifting eye bolts.

• ASME B18.15: The American standard for forged lifting eye bolts.

• CE Marked: Indicates the product meets health, safety, and environmental protection standards for the European Economic Area.
