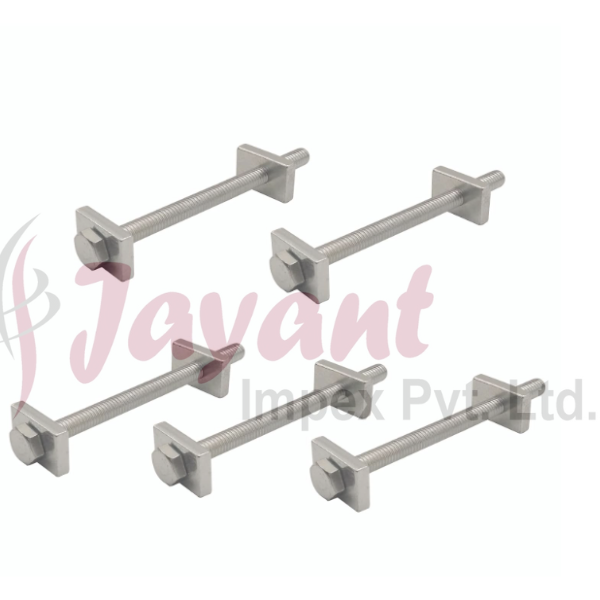

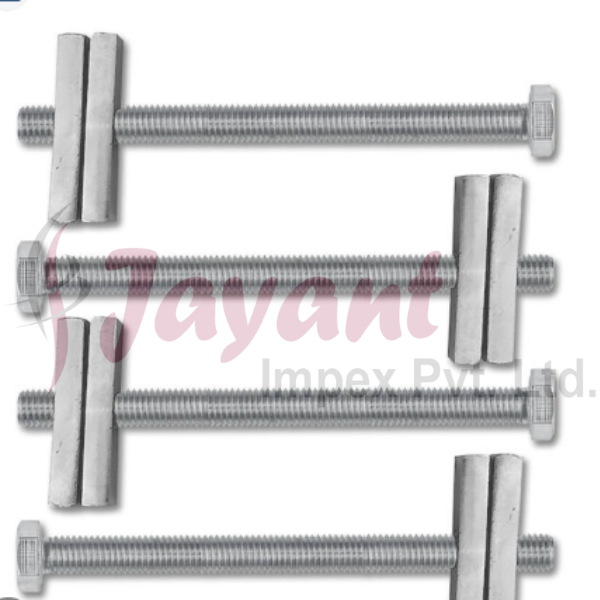

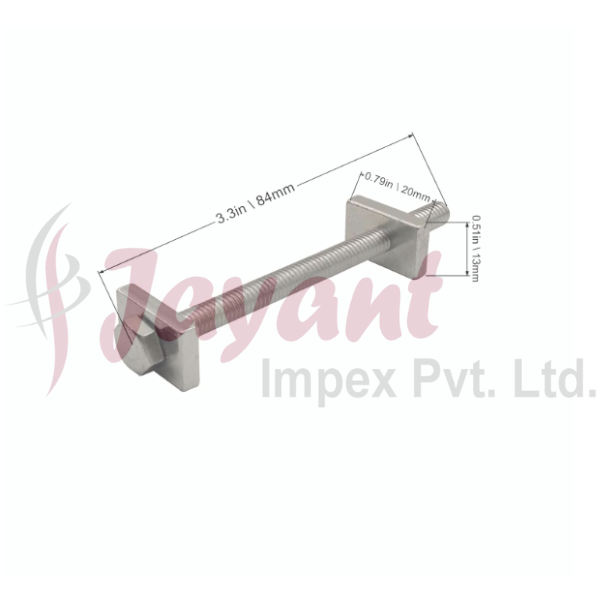

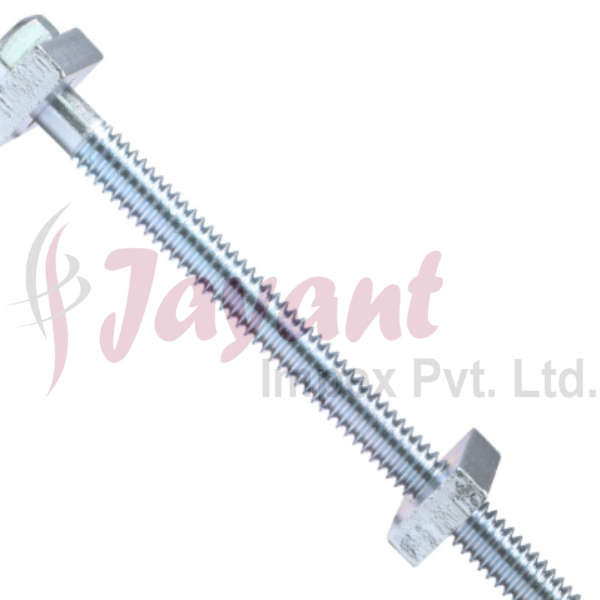

A draw bolt (often called a pull bolt or draw-in bolt) is an industrial fastener designed to apply a linear pulling force to bring two components together or to secure a tool within a spindle. Unlike standard bolts that simply clamp two surfaces, draw bolts are functional components of the machinery's operation, often requiring high precision and resistance to axial tension.

1. Machine Tool Draw Bolts (Spindle Bolts)

In the machining industry, a draw bolt is used to pull a tool holder (like an R8 collet or a CAT40 taper) into a milling machine spindle.

• Function: It threads into the back of the tool holder. As the bolt is tightened from the top of the spindle, it pulls the taper firmly into the socket, ensuring zero run-out and high rigidity.

• Material: Usually made from high-strength alloy steel (e.g., SAE 4140 or 4340) to withstand the repetitive high-torque tightening cycles without stretching or stripping.

• Design: They often have a long, slender shank and a specialized head (hex or internal socket) to fit through the machine's spindle bore.

2. Draw Bolts for Die & Mold Sets

Used in heavy manufacturing to align and "draw" two halves of a large mold or die together.

• Function: They provide the initial force to close a gap before the primary high-pressure hydraulic clamps take over.

• Benefit: They prevent "cocking" or misalignment of the die by ensuring a perfectly parallel closure.

3. Case and Enclosure Draw Bolts (Draw Latches)

In the context of industrial packaging and modular equipment, a draw bolt is part of a heavy-duty latching mechanism.

• Mechanism: A wire loop or hook (the "bolt") is placed over a catch, and a lever is flipped to "draw" the two sides of the container together under tension.

• Application: Used on flight cases, military equipment containers, and vibration-resistant electrical cabinets.

Key Technical Specifications

Common Variations

• Internal Draw Bolt: Used in hollow spindles where the bolt is accessed from the rear.

• Power Drawbar Bolts: Specialized bolts used in pneumatic or hydraulic systems that automate tool changes, requiring a specific head geometry for the power "gripper" to grab.

• Toggle Draw Bolts: Used in clamping systems where a quick-release function is needed alongside high tension.

Maintenance and Safety

Because industrial draw bolts are "active" fasteners (constantly being loaded and unloaded), they are prone to fatigue failure.

• Lubrication: Thread lubricants (like molybdenum disulfide) are essential to ensure the torque applied translates into actual pulling force rather than being lost to friction.

• Inspection: In CNC environments, draw bolts should be inspected for "mushrooming" at the head or thread deformation, as a snapped draw bolt can result in a tool being thrown from a spinning spindle at high speeds.
