Double Block Bleed Valve

Product Description

A Double Block and Bleed (DBB) Valve is a specialized piping component used to achieve positive isolation when working on live, high-pressure, or hazardous fluid systems.

Instead of relying on a single valve to block line pressure—which risks catastrophic failure if the seat leaks—a DBB system uses two independent sealing surfaces (the "blocks") with a vent or drain cavity between them (the "bleed").

The Core Concept: How Isolation Works

The primary purpose of a DBB configuration is safety and verification. It ensures that if fluid manages to blow past the first upstream seal, it cannot build up pressure or force its way past the second downstream seal.

 [Upstream Pressure] │ ┌───────▼───────┐ │ BLOCK VALVE 1 │ ◄── Primary Seal └───────┬───────┘ │ ├──────────────► [BLEED VALVE] ──► Safely Vents Leaked Fluid │ ┌───────┴───────┐ │ BLOCK VALVE 2 │ ◄── Secondary Seal (Backup) └───────┬───────┘ │ [Downstream / Safe Work Zone]

When technicians need to work on equipment downstream:

1. Both Block Valve 1 and Block Valve 2 are closed.

2. The Bleed Valve is opened to the atmosphere, a flare header, or a drain tank.

3. If Block Valve 1 leaks, the fluid takes the path of least resistance out through the open bleed line rather than pressurizing the space against Block Valve 2.

4. Technicians can visually monitor the bleed line; if fluid stops flowing out of it, they know they have a 100% reliable, zero-pressure isolation zone downstream.

Split Architecture vs. Integral DBB Valves

Historically, achieving a double block and bleed setup required a hookup of three separate hook-up valves (two isolation valves and a tee-pieced bleed valve) flanged together. Today, engineers typically opt for space-saving single-body solutions.

1. Hook-Up / Traditional Method

• Setup: Three distinct valves piped in series.

• Drawbacks: Massively heavy, large footprint, and introduces multiple potential external leak paths at the flange joints.

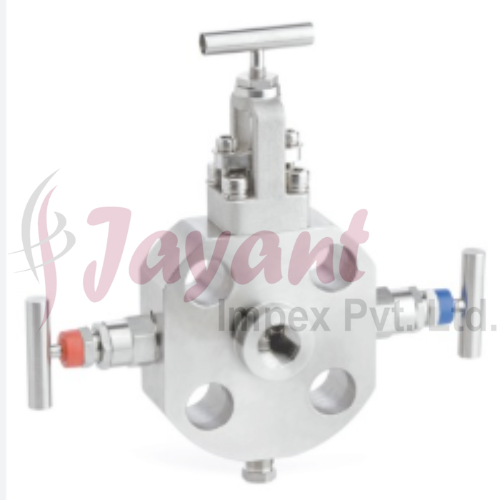

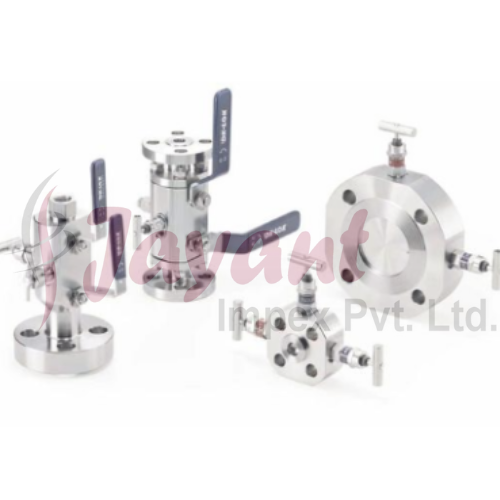

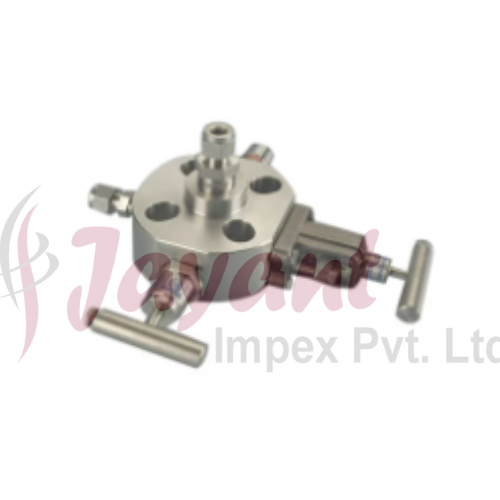

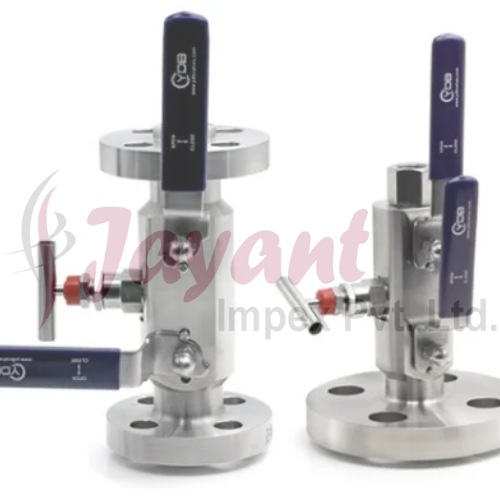

2. Integral DBB Monoflange / Dual-Ball Valves

• Setup: All three valve mechanisms are housed inside a single, solid forged block of steel.

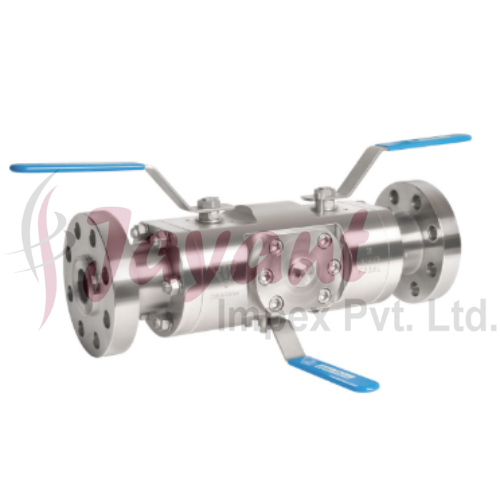

• Design variations: Often features two trunnion-mounted ball valves for the blocks and a needle valve for the bleed.

• Benefits: Drastically reduces weight (often by 70%), eliminates multiple structural leak points, saves valuable space on offshore platforms or processing skids, and minimizes risk from structural vibrations.

Double Block & Bleed (DBB) vs. Double Isolation & Bleed (DIB)

A common point of confusion in piping engineering (specifically under standards like API 6D) is the difference between a standard DBB valve and a DIB valve. It comes down to how the internal seats handle pressure.

• DBB Valve (Two Unidirectional Seats): A standard DBB valve seals against pressure coming from outside the valve body inward. However, if pressure somehow builds up inside the center cavity itself, the seats are designed to automatically push away and relief that excess pressure back into the pipeline (self-relieving seats).

• DIB Valve (Two Bidirectional Seats): A DIB valve features seats that seal against pressure coming from either direction (upstream/downstream or from within the cavity). If one seat fails completely, the other seat can still hold pressure from the same direction. Because it cannot self-relieve, it requires an external relief valve on the cavity to prevent over-pressurization.
