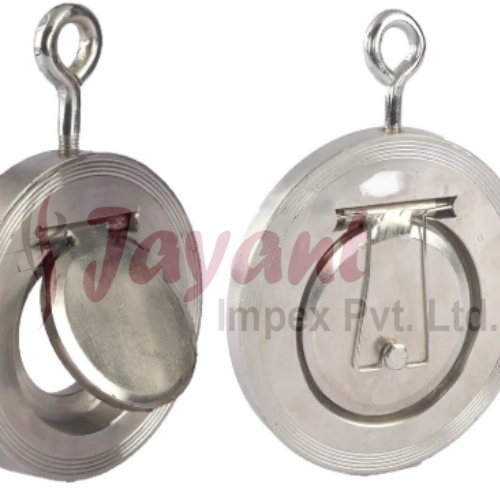

Cast Iron Swing Valve Wafer Type Swing Check Valves

Cast Iron Swing Valve Wafer Type Swing Check Valves

Cast Iron Swing Valve Wafer Type Swing Check Valves

Cast Iron Swing Valve Wafer Type Swing Check Valves

Cast Iron Swing Valve Wafer Type Swing Check Valves

Cast Iron Swing Valve Wafer Type Swing Check Valves

Cast Iron Swing Valve Wafer Type Swing Check Valves

Cast Iron Swing Valve Wafer Type Swing Check Valves

Cast Iron Swing Valve Wafer Type Swing Check Valves

Cast Iron Swing Valve Wafer Type Swing Check Valves

Cast Iron Swing Valve Wafer Type Swing Check Valves

500.0 INR/Unit

Get a Price/Quote

Product Details:

Control System None (Check valve, operates automatically)
Material Cast Iron (Body), Stainless Steel/Brass (Trim)
Features Wafer pattern, low pressure drop, easy installation
Valve Size 50 mm to 300 mm
Connection Type Wafer between flanges
Valve Type Swing
Structure Wafer type
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

X

Cast Iron Swing Valve Wafer Type Swing Check Valves Price And Quantity

Minimum Order Quantity 1 Unit
Price 500.0 INR/Unit

Cast Iron Swing Valve Wafer Type Swing Check Valves Product Specifications

Control System None (Check valve, operates automatically)
Application Used for preventing backflow in pipelines, suitable for water, oil, and gas applications.
Sealing EPDM or NBR
Power Manual/Non-powered
Structure Wafer type
Port Size DN50-DN300
Valve Size 50 mm to 300 mm
Type Swing Check Valve
Connection Type Wafer between flanges
Material Cast Iron (Body), Stainless Steel/Brass (Trim)
Disc Cast Iron/SS304
Features Wafer pattern, low pressure drop, easy installation
Valve Type Swing
Pressure PN10/PN16
Media Water, Oil, Gas
Temperature Up to 200C
Pin Hinge pin for swing operation

Weight Varies by size, approx. 6-47 kg
Working Pressure Max 16 bar
Flow Direction Unidirectional
Operation Fully automatic, opens with forward flow, closes with reverse flow
Standard Design and manufacture as per BS EN 12334
End Connection Wafer type, compatible with flange standards EN 1092-2
Body Coating Fusion bonded epoxy coated for corrosion resistance
Body Material Cast Iron EN-GJL-250
Inspection & Testing As per EN 12266-1 standard
Leakage Class Class A tight shut-off
Mounting Position Horizontal/Vertical (upward flow only)
Seat Material Rubber lined/EPDM/NBR
Face-to-Face Dimension Conforms to EN 558-1 Series 16

Product Description

Presenting the astounding Cast Iron Swing Valve Wafer Type Swing Check Valves-a paragon among check valves engineered for noteworthy corrosion resistance. With a robust EN-GJL-250 cast iron body fusion bonded with epoxy coating, these valves ensure longevity under pressures up to 16 bar. The wafer structure, compatible with EN 1092-2 standards, promises seamless installation and minimal pressure drop. Procure your valves now-Markdown Event: Ending Soon-ideal for water, oil, or gas pipelines, promising Class A tight shut-off, EPDM or NBR sealing, and automatic, reliable operation.

Plant Application and Usage Versatility

Cast Iron Swing Valve Wafer Type Swing Check Valves are widely used to prevent backflow in essential pipeline systems, ensuring unidirectional flow for water, oil, and gas applications. Their robust construction and adaptability in various mounting positions make them invaluable in industrial, commercial, and municipal plants. As a notable choice for fabricators, exporters, and manufacturers, these automatic valves offer efficient, maintenance-free operation, fitting perfectly into new installations or retrofits across a broad range of plant settings.

Delivery Timelines, Certifications, & Payment Conditions

Order completion is carried out swiftly, with prompt delivery times aimed to maintain your operational efficiency and minimize downtime. Our valves are offered at the lowest price, and payment terms are flexible to match your procurement process, ensuring you get the best rate. Each unit comes certified and tested as per industry-leading standards, guaranteeing quality and reliability. Choose Cast Iron Swing Valve Wafer Type Swing Check Valves for confidence in every project and transaction.

FAQ's of Cast Iron Swing Valve Wafer Type Swing Check Valves:

Q: How does the Cast Iron Swing Valve Wafer Type Swing Check Valve prevent backflow in pipelines?

A: This check valve operates automatically, opening when fluid flows in the forward direction and closing tightly when the flow reverses, thanks to its swing disc design and Class A leak tight shut-off.

Q: What applications are these swing check valves suitable for?

A: These valves are ideal for preventing backflow in pipelines carrying water, oil, or gas within industrial, commercial, and municipal plant settings, ensuring protection and efficiency.

Q: When should I procure a wafer type swing check valve for my facility?

A: Procure these valves when you need reliable and maintenance-free prevention of backflow, especially during new pipeline installations or upgrades in environments requiring corrosion resistance and tight sealing.

Q: Where can these valves be installed and in what orientation?

A: These valves are designed for installation between flanges according to EN 1092-2, and they can be mounted horizontally or vertically, provided the flow is upwards.

Q: What certifications and standards do these swing valves conform to?

A: Manufactured and tested to BS EN 12334 and EN 12266-1 standards, these swing check valves meet all requisite certifications for quality, safety, and performance.

Q: What are the benefits of choosing a wafer pattern check valve?

A: The wafer pattern design ensures low pressure drop, easy installation, and compatibility with various systems, providing reliable unidirectional flow with minimal maintenance.
