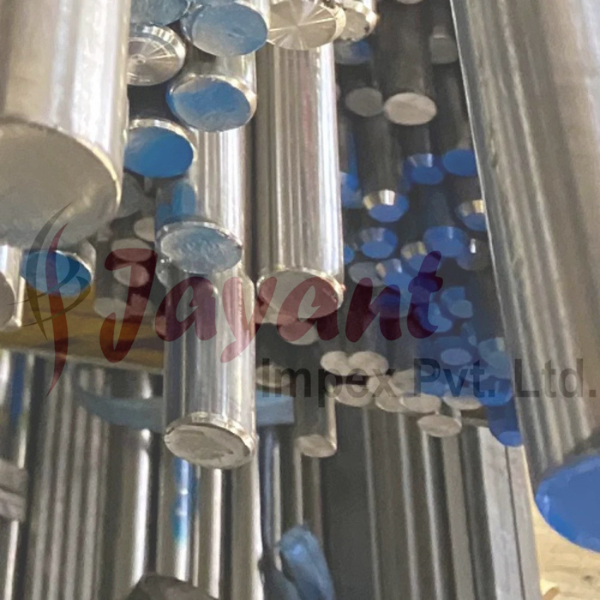

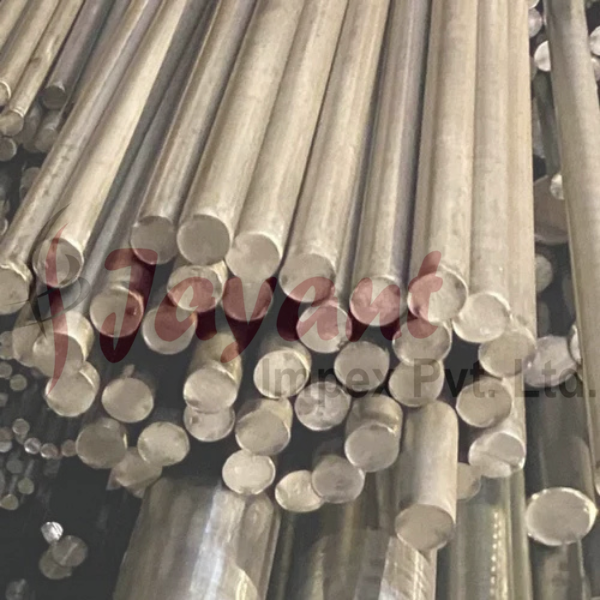

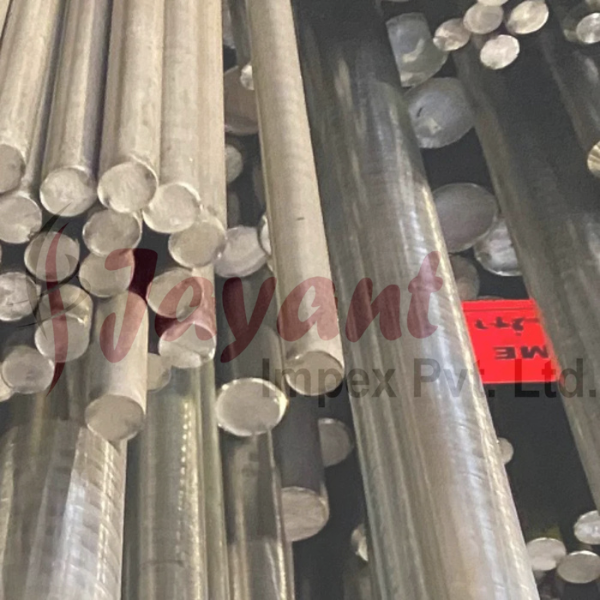

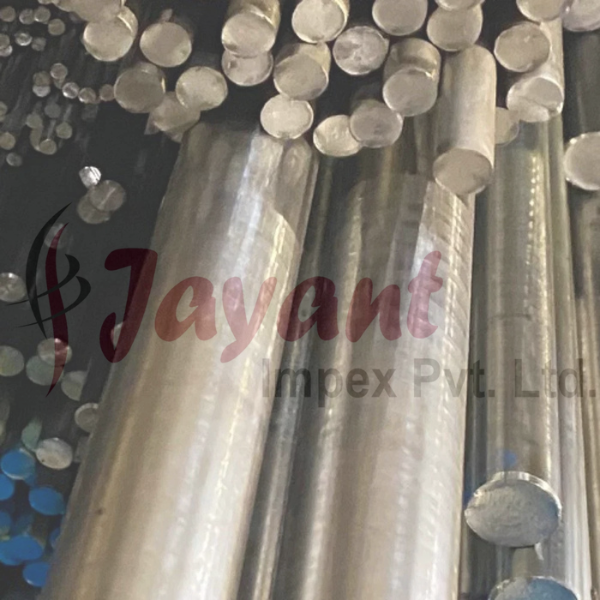

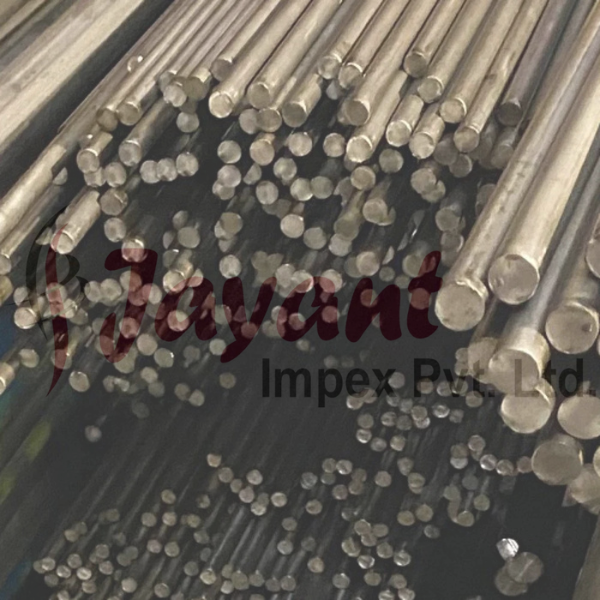

DIN 1.2343 Tool Die Steel 2343 Bars

Product Description

DIN 1.2343 (standardized under the German EN ISO 4957 designation X37CrMoV5-1) is Europes primary choice for hot-work tool steel applications where maximum structural toughness and resistance to catastrophic cracking are mandatory.

As the direct European equivalent to North America's AISI H11 and Japan's JIS SKD6, 1.2343 features slightly less vanadium than its sibling grade 1.2344 (H13). This intentional chemistry tweak minimizes the formation of brittle alloy carbide networks, giving these bars exceptional impact energy absorption.

Technical Specifications & Chemical Composition

The strict European standardization of 1.2343 guarantees precise elemental control, ensuring highly uniform mechanical properties from the surface to the core of large-diameter bars.

Why Choose 1.2343 Over 1.2344 (H13)?

While 1.2344 is often treated as a "catch-all" hot-work steel, 1.2343 is selected for specific engineering scenarios:

• Superior Fracture Toughness: Because it contains fewer primary vanadium carbides, 1.2343 can handle intense, sudden mechanical shock or heavy impact loads without splitting.

• Higher Thermal Conductivity: It dissipates heat away from critical working die faces faster than 1.2344. This keeps the localized surface temperature lower, reducing severe thermal stresses.

• Better Resilience to Water Cooling: If your hot-work process requires active or intermittent water-cooling of the tool faces, 1.2343 stands up to the thermal shock significantly better with less risk of immediate cracking.

Recommended Heat Treatment & Hardening Flow

To ensure the best balance of structural ductility and high-temperature yield strength, vacuum furnace heat treatment with high-pressure gas quenching is highly recommended.

1.Soft Annealing:Delivery State.

Heat uniformly to 750C800C. Soak thoroughly, then slow-cool inside the furnace at a rate of 10C20C per hour until reaching ~600C, followed by air cooling. Hardness should be $\le$ 229 HBW for optimal machining.

2.Stress Relieving:Post-Roughing.

After heavy rough-machining, heat the tool to 600C650C. Hold for 2 hours to eliminate residual machining stresses, then cool slowly inside the furnace to prevent geometric warping.

3.Preheating:Thermal Protection.

Ramp up the temperature slowly in two distinct stages: first to 550C600C, and then up to 820C850C. Allow the core to fully equalize at each stage to minimize internal thermal shock.

4.Austenitizing:Hardening Stage.

Elevate the furnace to 1000C1040C. Maintain this temperature for 15 to 30 minutes once the core has stabilized to cleanly dissolve the chromium-molybdenum carbides into the matrix.

5.Quenching:Transformation.

Quench using high-pressure nitrogen gas injection (in a vacuum furnace), a salt bath at 500C550C, or warm oil. Air/gas quenching is highly preferred to minimize residual stress.

6.Double Tempering:Final Mechanics.

As soon as the bars cool down to 50C60C, perform the first tempering cycle at 540C650C for a minimum of 2 hours. A second consecutive temper is mandatory to transform retained austenite. Typical operational hardness targets 45 to 52 HRC.

Primary Applications of 1.2343 Round Bars

Because of its structural integrity under severe shock and cyclic thermal loading, 1.2343 die steel rods are widely specified for:

• Heavy-Duty Forging Equipment: Forging die blocks, complex die inserts, and hot punch tooling subjected to high mechanical impact.

• Structural Aerospace Hardware: Landing gear components, high-tensile fasteners, and drive shafts that leverage the steels incredible fatigue resistance at high yield strengths.

• Aluminum Extrusion Components: Die holders, backing blocks, press stems, and extrusion mandrels processing light alloys.

• Hot Shearing: Cutting blades and industrial knives designed to cleanly crop hot steel billets or scrap profiles without fracturing along the cutting edge.
