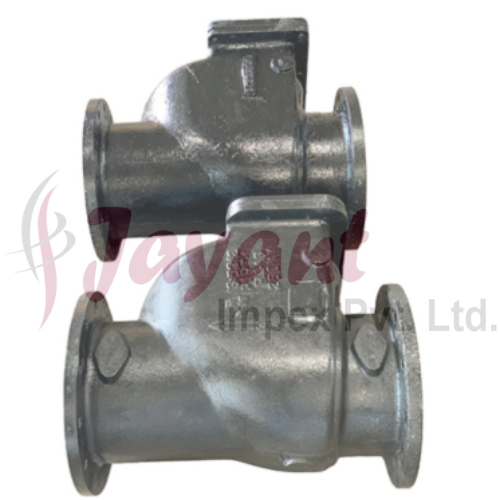

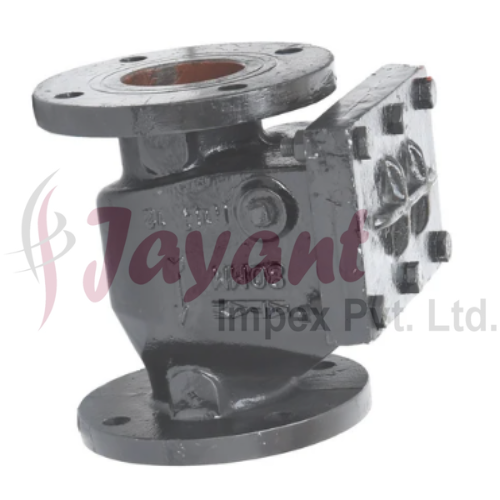

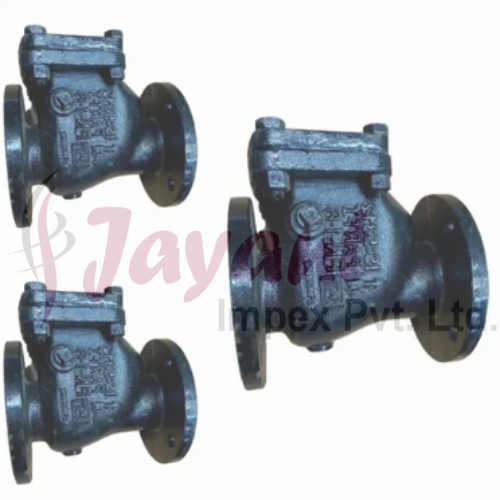

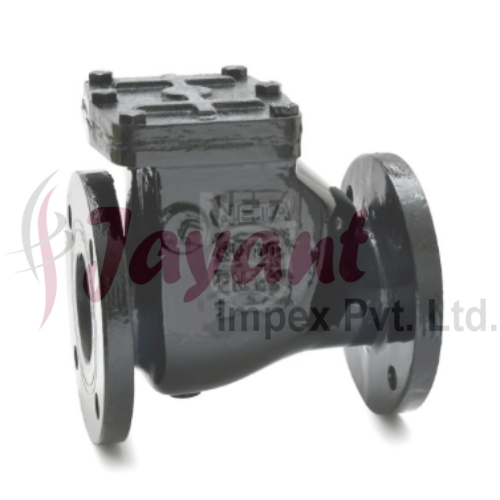

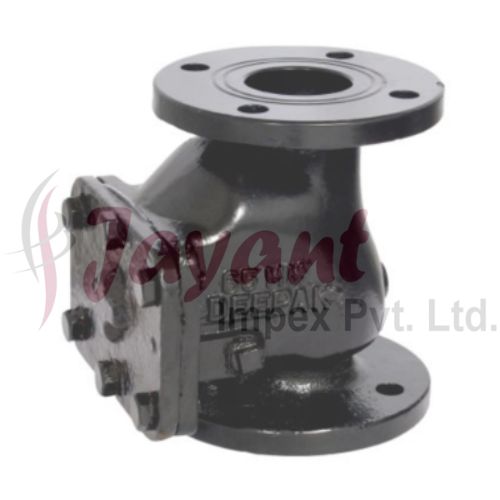

Cast Iron Reflex Valve Reflex Non Return Valves

Cast Iron Reflex Valve Reflex Non Return Valves Price And Quantity

• Minimum Order Quantity 1 Unit
• Price 1000.0 INR/Unit

Cast Iron Reflex Valve Reflex Non Return Valves Product Specifications

• Sealing Renewable seat ring for leak-tight sealing
• Port Size 50 mm to 300 mm (varies as per model)
• Structure Body and bonnet bolted with full bore passage
• Material Cast Iron (IS 210 Gr.FG200/260 or equivalent)
• Media Water, oil, and light chemicals
• Control System Automatic (flow-actuated)
• Features Maintenance free, compact design, bolted cover, easy inspection
• Valve Size Range from 2 (50mm) to 12 (300mm)
• Power Not required (self-actuating by flow/pressure)
• Application Non-return (check) for pipelines carrying water, steam, or non-corrosive liquids
• Pressure PN 1.0, 1.6 or as specified
• Type Reflex Non Return Valve
• Pin Durable hinge pin for disc movement
• Valve Type Non Return Valve (NRV)
• Disc Swing type reflex disc (Cast iron/bronze faced)
• Connection Type Flanged ends (as per IS 1538/BS EN 1092)
• Temperature Up to 200C

• End Connection Standard Drilled to IS/BS/DIN/ASA as required
• Test Pressure Hydraulic tested at 1.5 times working pressure
• Face to Face Dimension Conforms to IS:5312/BS standards
• Gasket Compressed asbestos fibre or equivalent
• Body Coating Red or blue enamel/epoxy paint for corrosion resistance
• Operation Single disc, efficient shut-off under gravity and back pressure
• Flow Direction Unidirectional (indicated by arrow on body)
• Bonnet Removable type for easy maintenance
• Suitable Standards IS:5312, BS:5153, EN 12334
• Installation Position Horizontal or vertical (upward flow)
