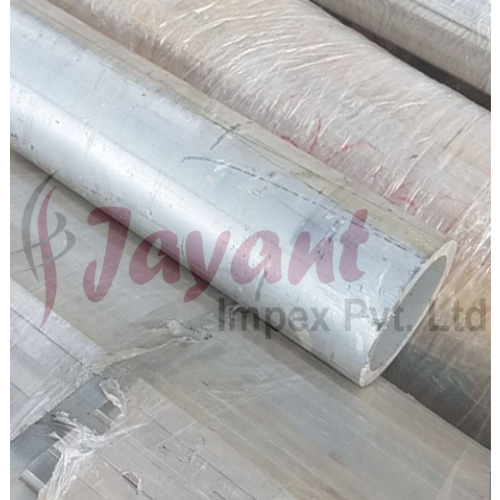

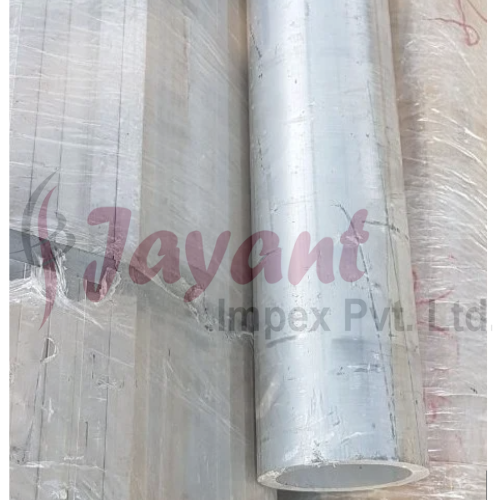

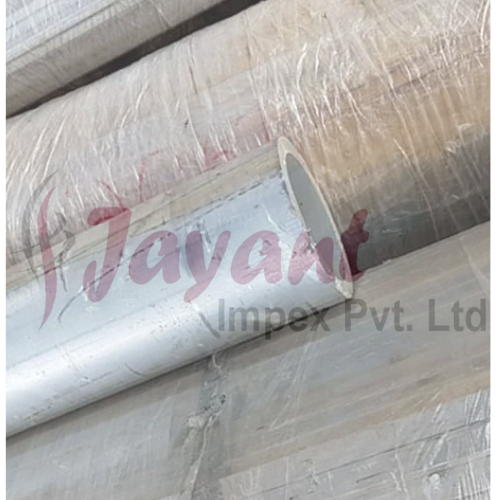

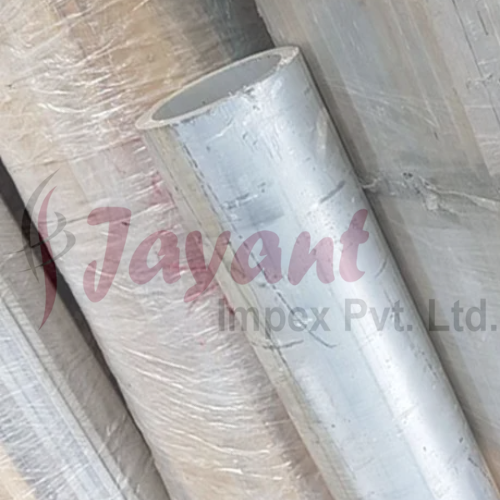

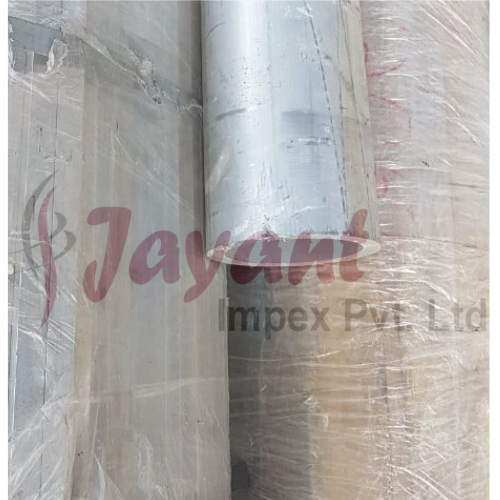

Aluminium ENAW-6060 Pipes, Tube & Tubing (6060 - T6)

Product Description

When specifying EN AW-6060 T6 aluminum pipes, tubes, and tubing, you are selecting a material treated to its peak commercial strength. The T6 temper indicates that the tubing has undergone solution heat-treatment and artificial aging. This process precipitates a uniform network of magnesium-silicide ($Mg_2Si$) within the aluminum matrix, maximizing the alloy's yield strength and stiffness while maintaining its hallmark extrusion precision.

Technical Standards & Compliance

In European manufacturing and international supply chains, EN AW-6060 T6 tubing is certified under a strict framework of European Norms (EN):

• EN 573-3: Verifies the precise chemical composition limits of the alloy.

• EN 755-2: Dictates the mandatory mechanical property minimums for extruded tubes and profiles.

• EN 755-7: Establishes dimensional, wall-thickness, and concentricity tolerances for seamless tubes.

• EN 755-8: Establishes dimensional tolerances for porthole/structural welded tubes.

Mechanical Properties: EN AW-6060 T6

The artificial aging process significantly raises the mechanical threshold of 6060 compared to its unaged or naturally aged (T4) state. For extruded tubing with a wall thickness up to 5 mm, the standard mechanical limits are:

• Tensile Strength ($R_m$): $\ge 190 \text{ MPa}$

• Yield Strength ($R_{p0.2}$): $\ge 150 \text{ MPa}$

• Minimum Elongation ($A$): $\ge 8\%$

• Minimum Elongation ($A_{50mm}$): $\ge 6\%$

• Typical Hardness: $\approx 70 \text{ HBW}$ (Brinell)

(Note: If slightly higher structural properties are required within the same alloy chemistry, some manufacturers offer a T66 temper, which utilizes proprietary thermal processing to bump the minimum Tensile Strength to $\ge 215 \text{ MPa}$ and Yield Strength to $\ge 160 \text{ MPa}$).

Physical Properties of 6060-T6

These baseline physical values are highly consistent and crucial for thermal, electrical, and structural calculations:

Fabrication, Machining & Welding Behavior

1. Bending Limits of the T6 Temper

Because artificial aging hardens the material, its remaining ductility is relatively low ($\ge 8\%$ elongation).

• The Risk: Executing tight-radius or complex multi-axis bending on a T6 tube can lead to severe wrinkling, "orange-peeling," or outright cracking along the outer radius.

• The Solution: For applications requiring sharp bends or heavy forming, it is highly recommended to source the tubing in a ductile T4 temper, perform all necessary bending operations, and subsequently heat-treat (artificially age) the finished component to the T6 specification.

2. The Heat-Affected Zone (HAZ) in Welding

EN AW-6060 T6 is exceptionally weldable using TIG (GTAW) or MIG (GMAW) processes with standard 4043 (AlSi5) or 5356 (AlMg5) filler metals.

Engineering Constraint: The localized, intense heat of the welding arc acts as a localized annealing treatment. This creates a Heat-Affected Zone (HAZ) immediately surrounding the weld line where the material drops significantly in strength—often losing up to 30–40% of its yield strength as it reverts toward a T4 state. Joint placement and wall-thickness calculations must factor in this localized drop in load-bearing capability.

3. Surface Quality & Decorative Anodizing

The lower magnesium and iron content of 6060 gives it a slight edge over 6063 in terms of surface perfection. It is highly sought after for Anodizing Quality (AQC) applications. When anodized, T6 tubing produces an exceptionally clean, uniform oxide layer free of the dark streaks or haziness often found in higher-strength structural aluminum alloys.

Primary Applications

• Precision Air & Fluid Transport: Low-pressure pneumatic lines, hydraulic return reservoirs, vacuum manifolds, and cable management conduits.

• High-Finish Architectural Frameworks: Glazing systems, curtain wall supports, interior balustrades, handrails, and high-end modular furniture.

• Thermal Management: Compact heat exchanger cores, cooling loop lines, and extruded heat sink housings that require hollow cylindrical sections.
