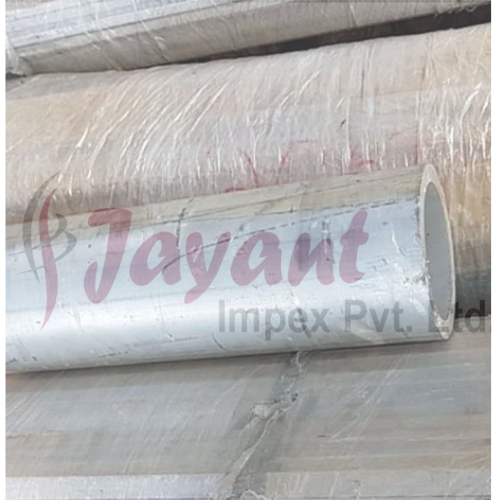

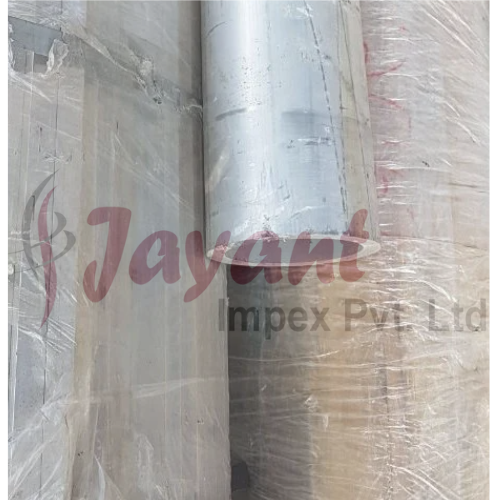

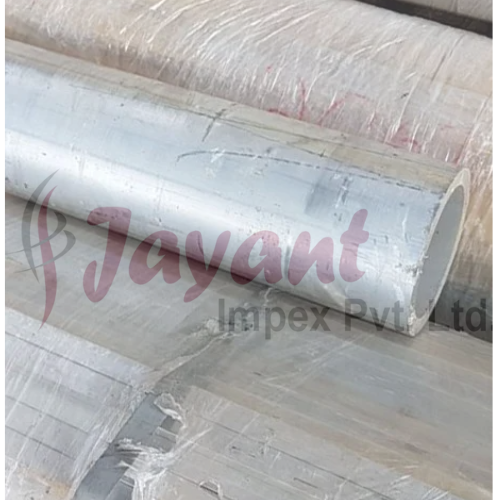

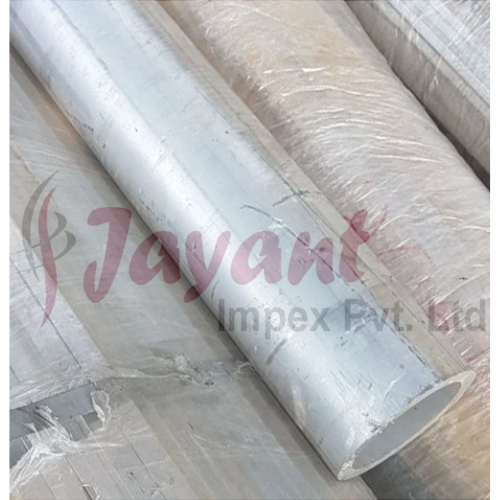

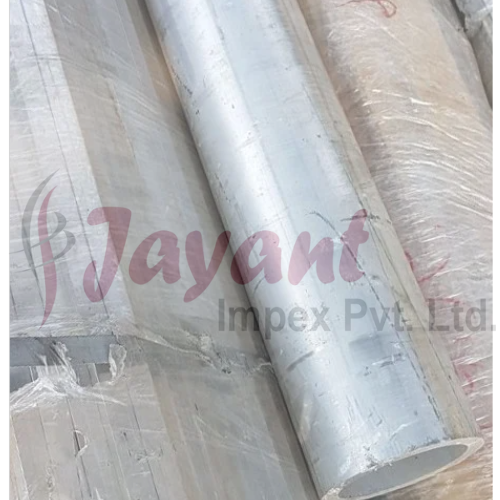

6063 - AlMg0.7Si Aluminium Pipes, Tubing & Tube (DIN, WNR)

Product Description

The aluminum designation 6063, often labeled as AlMg0.7Si under European Norms (EN) or DIN/WNr 3.32206, represents one of the most widely used extrusion alloys in the world. Often referred to as an "architectural alloy," it strikes an optimal balance between moderate structural strength, excellent surface finish, and superior corrosion resistance.

Global Standard Classifications

Depending on the region or industry standard specified for your project, this alloy is identified under several major naming conventions:

• Werkstoffnummer (WNr): 3.32206

• EN Chemical Designation: EN AW-6063 / EN AW-AlMg0.7Si

• Old DIN Designation: AlMgSi0.5 (DIN 1725-1)

• UNS Number: A96063

• ISO System: Al-Mg-Si

Technical Specifications for Pipes & Tubing

When purchasing or specifying 6063 / AlMg0.7Si for piping and tubing networks, production and testing typically conform to specific European or American dimensional and quality standards:

Common Production Standards

• EN 755-1 to 9: Extruded rods, bars, tubes, and profiles (covers mechanical properties, tolerances, and technical delivery conditions).

• EN 12020-1 & 2: Extruded precision profiles in alloys EN AW-6060 and EN AW-6063.

• ASTM B210 / B221 / B241: American specifications for seamless drawn tubes, extruded tubes, and seamless pipe.

Common Tempers & Mechanical Performance

While available in annealed (O) or naturally aged (T4) conditions, 6063 pipes and tubing are most frequently utilized in the T6 (solution heat-treated and artificially aged) temper to achieve maximum structural integrity.

Material Characteristics & Fabrication Behavior

1. Extrudability and Complex Geometries

AlMg0.7Si is explicitly formulated for high extrudability. This allows manufacturers to produce intricate, thin-walled hollow profiles, seamless pipes, and sharp-cornered square/rectangular tubing that would crack or fail when processed with higher-strength 7000 or 2000 series aluminum.

2. Surface Finishing & Anodizing

One of the primary advantages of 6063 is its response to chemical finishes. It is highly receptive to clear, color, and hard-coat anodizing, which forms a thick, protective, and uniform oxide layer. It polishes to a high luster, making it ideal for highly visible architectural installations.

3. Weldability

It is easily welded using conventional Gas Tungsten Arc Welding (GTAW/TIG) or Gas Metal Arc Welding (GMAW/MIG).

Important Note: Welding will locally reduce the mechanical properties in the Heat-Affected Zone (HAZ) down toward the T4 or annealed state. If the tubing is being used structurally, design calculations must account for this drop in yield strength, or the assembly must be re-heat treated post-welding.

4. Corrosion Resistance

The alloy offers excellent resistance to atmospheric corrosion, fresh water, and marine environments. It does not suffer from the intergranular or stress-corrosion cracking that can plague higher-copper aluminum variants.

Typical Applications of 6063 Tubing

Due to its versatility, 6063 / AlMg0.7Si tubing is found across structural, fluid handling, and decorative applications:

• Fluid & Gas Conveyance: Low-pressure pneumatic lines, hydraulic return lines, irrigation systems, and electrical conduits.

• Structural Frames: Solar panel racking, scaffolding systems, modular framing systems, and interior furniture skeletons.

• Architectural Elements: Handrails, balustrades, window frames, door track systems, and facade support structures where visual appearance is critical.

• Heat Management: Extruded heat-exchanger tubes and cooling manifolds, leveraging aluminum's high thermal conductivity ($\approx 200 \text{ W/m·K}$).
