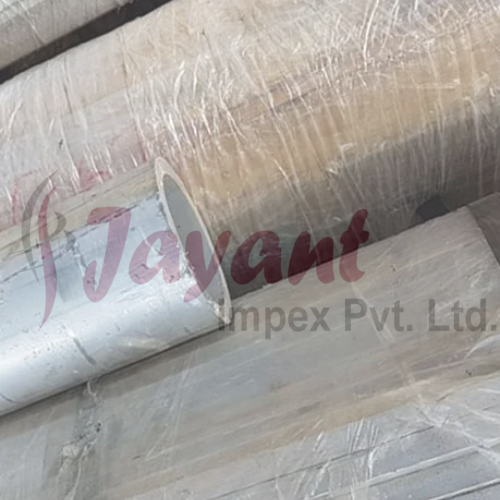

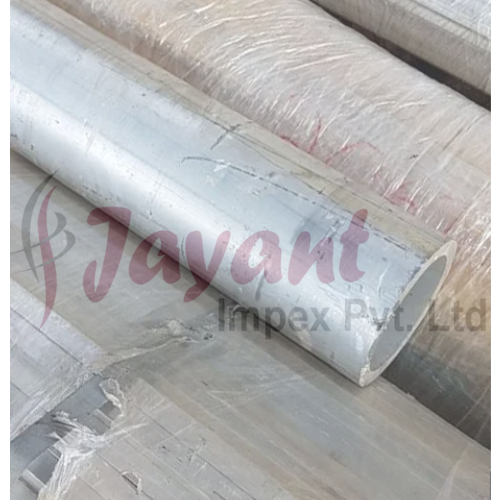

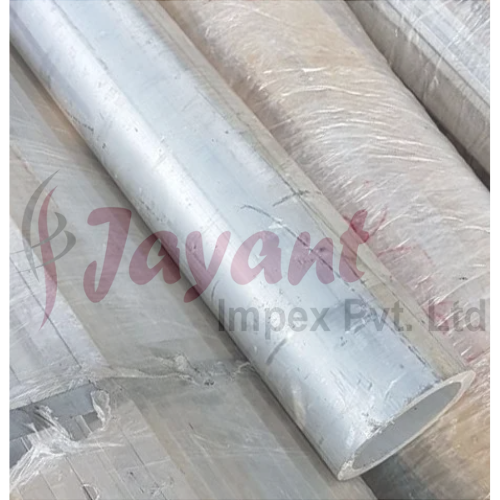

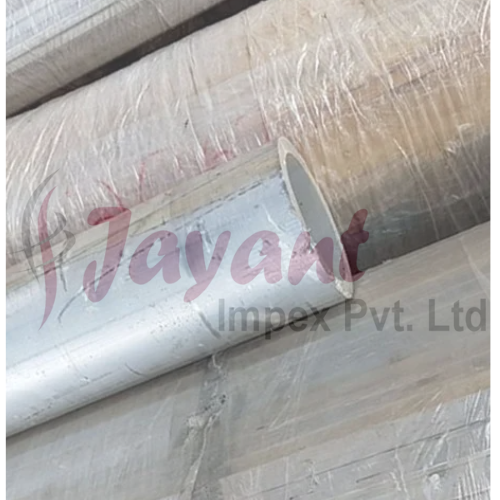

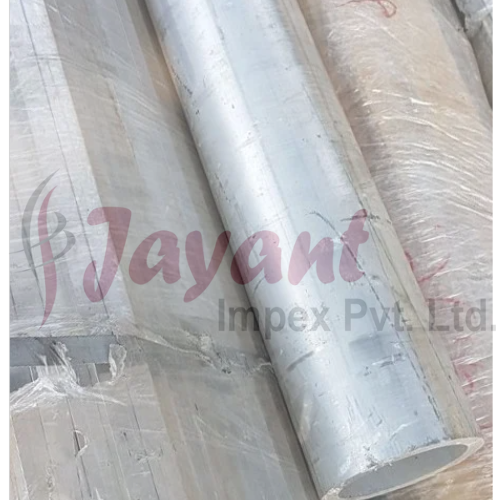

DIN 3.3206 Aluminium Pipes - WNr 3.3206 Pipe, Tube, Tubing

Product Description

DIN 3.3206 (Werkstoffnummer WNr 3.3206) is the precise technical designation within European and German standardization systems for a widely used architectural and structural aluminum alloy.Globally, it is most recognized under the European Norm as EN AW-6060 or as AlMgSi0.5.

Note on Designation Compatibility: It is a close sibling to the 6063 (AlMg0.7Si / WNr 3.32206) grade. Because their chemical composition ranges and mechanical profiles overlap significantly, WNr 3.3206 (6060) and WNr 3.32206 (6063) are frequently dual-certified and interchangeable in general piping and piping applications, though 6060 is formulated for slightly better extrudability of complex, ultra-thin profiles.

Global Cross-Reference & Equivalents

To match this grade across various international standards, use the following equivalent systems:

• Werkstoffnummer (Germany): 3.3206

• EN Standard: EN AW-6060

• DIN Designation (Older): AlMgSi0.5 (DIN 1725-1)

• AA (USA / ASTM): 6060 / 6063

• UNS: A96060 / A96063

• GOST (Russia): AD31 (АД31)

Nominal Chemical Composition (%)

The 3.3206 alloy belongs to the 6000-series (Aluminium-Magnesium-Silicon family). Its chemistry allows for excellent heat-treatment adaptability to balance formability and strength:

Typical Mechanical Properties by Temper

Pipes and tubing in this grade vary in performance based on the specific thermal aging treatment. Below are standard properties according to EN 755-2 for wall thicknesses $\le 5\text{ mm}$:

Key Performance Characteristics

1. Complex Extrudability & Formability

WNr 3.3206 is highly specialized for complex, thin-walled extrusion profiles. In its T4 or soft condition, it has exceptional cold formability, making it the preferred choice for piping systems that require intricate multi-radius bending, hydroforming, or flaring without cracking.

2. Premium Surface Finish & Decorative Anodization

This grade yields a highly smooth, esthetic finish directly from the mill.It is highly responsive to decorative, protective, and hard-coat anodizing processes. It avoids the surface streaking common in higher-alloyed alternatives.

3. Outstanding Corrosion Resistance

It provides superb resistance to atmospheric degradation, fresh water, and industrial environments. It performs well against intergranular and stress-corrosion cracking (SCC) even when exposed to severe weather elements.

4. Weldability

3.3206 tubes are highly weldable using conventional GTAW (TIG) or GMAW (MIG) methods. As with all 6000-series heat-treatable alloys, welding creates a localized Heat-Affected Zone (HAZ) that can reduce the yield strength near the joints by roughly 30–40%. Post-weld artificial aging can recover these properties if needed.

Technical Standards & Product Types

Depending on the operational constraints of your assembly, pipes and tubes in this material conform to several standardized European specifications:

• EN 755-7: Specifications and technical tolerances for Seamless Extruded Tubes (ideal for structural load cases or fluid lines under standard pressures).

• EN 755-8: Specifications and technical tolerances for Porthole/Structural Tubes (optimized for complex geometric profiles and frame configurations).

• EN 12020-2: High-precision extrusion tolerances for applications where dimensional consistency is tightly monitored.

Key Industrial Applications

• Fluid Handling Systems: Low-pressure hydraulic return lines, irrigation systems, pneumatic tubing, and electrical conduits.

• Architectural Frames & Furniture: Railings, modular frame profiles, balustrades, window and door frames, and internal structures where a clean, sleek appearance is mandatory.

• Electronics & Heating: Extruded heating element frames, cooling ducts, and intricate heat sink sections due to its high thermal conductivity ($\approx 200 \text{
