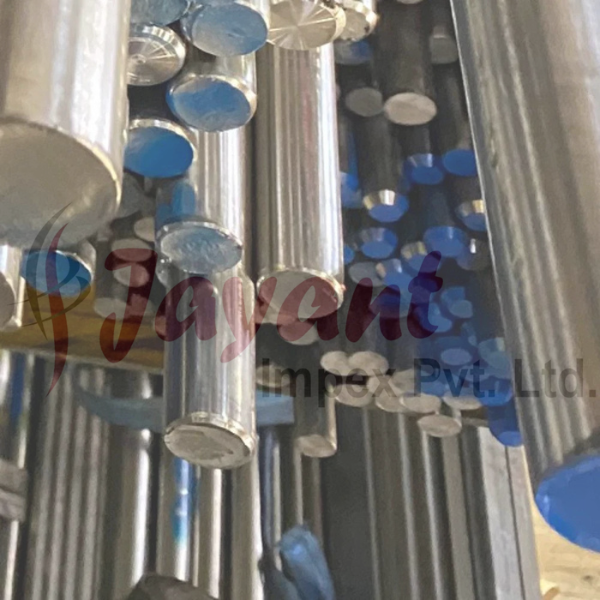

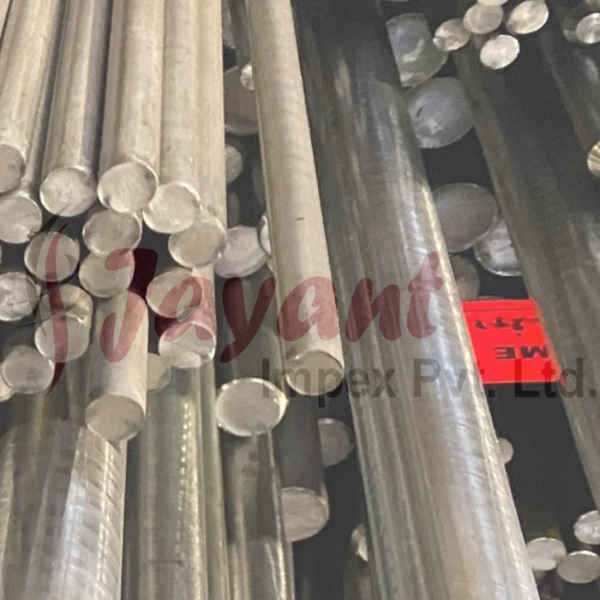

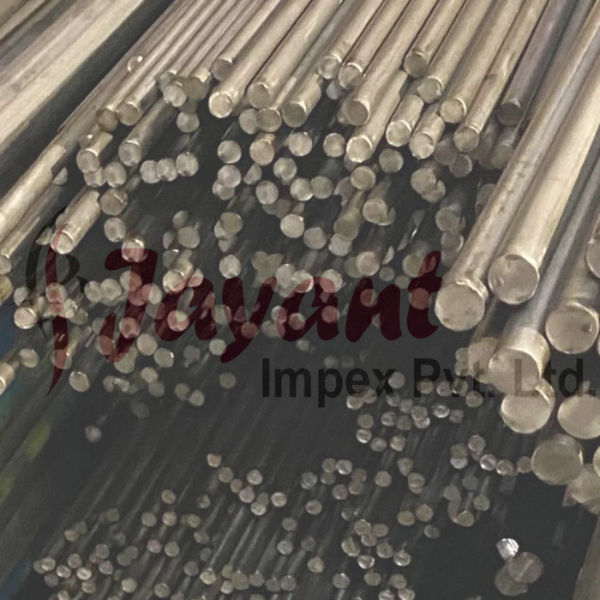

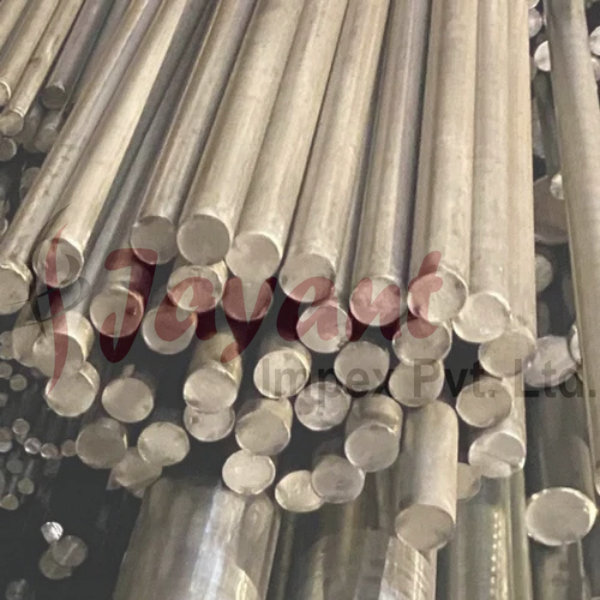

X13CrMnMoN18-14-3 Cr-Mn-N Steel Round Rods

Product Description

X13CrMnMoN18-14-3 (commercially recognized under premium grade names like P2000 and registered under Werkstoffnummer 1.4452) is a high-performance, high-nitrogen, fully austenitic stainless steel.

By utilizing an advanced chemical design that swaps out traditional high-nickel content for a precisely balanced combination of Manganese and Interstitial Nitrogen, this alloy achieves a fully stable austenitic matrix. This design yields immense yield strength, superior pitting resistance, and stable non-magnetic properties.

Chemical Composition (Mass Weight %)

To ensure complete elemental homogeneity and prevent gas-void defects from the high nitrogen concentration, this steel is typically produced using Pressure Electroslag Remelting (PESR) or advanced vacuum melting routes.

Critical Engineering Advantages

• Extreme Pitting Resistance (PREN $\ge$ 45): The high combination of Chromium ($18\%$) and Molybdenum ($3\%$), coupled with an extraordinarily high interstitial Nitrogen factor, positions its Pitting Resistance Equivalent Number (PREN) well above 45. It reliably resists pitting and crevice corrosion in hot, highly chlorinated environments and harsh physiological media.

• Low Magnetic Permeability ($\mu \le 1.005$): It is fundamentally amagnetic and remains microstructurally clear of delta ferrite or martensitic transformation phases. It will not become magnetic even after severe cold drawing or heavy surface work-hardening.

• Nickel-Free Biocompatibility: When specified with trace-level nickel restrictions ($\le 0.05\%$), it bypasses the hypersensitivity risks associated with conventional surgical steels (like 316L), aligning perfectly with stringent medical regulations.

Mechanical Properties (At Room Temperature)

Thanks to the powerful solid-solution strengthening effect of interstitial Nitrogen atoms packed inside the FCC crystal lattice, X13CrMnMoN18-14-3 features a baseline annealed yield strength that is roughly double that of standard 300-series stainless steels. It also features exceptional work-hardening potential.

Processing & Fabrication Advice

• Hot Forming: Must be precisely executed within a strict thermal window between 1200°C and 1000°C, immediately followed by rapid water quenching or forced-air cooling to eliminate any risk of localized chromium nitride precipitation.

• Solution Annealing: 1050°C to 1120°C with swift cooling.

• Machinability: Due to its immense strain-hardening potential and the structural tenacity provided by nitrogen, it causes rapid tool wear if allowed to glaze. Fabricators must implement heavy positive feed rates, rigid clamping, sharp cobalt/carbide inserts, and rich, sulfur-free cutting fluids.

Core Applications for Round Rods

X13CrMnMoN18-14-3 round rods are typically specified for components operating under high structural loads inside highly corrosive or magnetically sensitive environments:

• Energy & Industrial Subsea Systems: Non-magnetic actuator shafts, downhole sensors, high-pressure valves, and marine pump components exposed to harsh seawater.

• Medical & Surgical Technology: High-fatigue surgical instruments, orthopedic fixation components, and precision dental tools that require total non-magnetism during MRI diagnostics.

• Aerospace & Precision Instruments: Amagnetic high-load structural pins, guiding rods, satellite chassis fasteners, and high-end horology (luxury watch casings and internal movements).
