Pyrowear 53 Bars, Pyrowear 53 Rods & Pyrowear 53 Rings

Product Description

Pyrowear 53 (UNS K71040) is a premium, core-tough, vacuum-melted alloy steel engineered by Carpenter Technology Corporation. It is the underlying commercial material specification covered by the aerospace standard AMS 6308.

Specifically designed for high-stress, high-temperature gear and drivetrain applications, Pyrowear 53 solves a classic metallurgy problem: it maintains an ultra-hard carburized surface case while retaining superb core fracture toughness at cSteeontinuous operating temperatures up to $450^\circ\text{F}$ ($232^\circ\text{C}$).

1. Material Architecture & Chemistry

Standard carburizing steels (like AISI 9310 or 8620) suffer from a significant drop in surface hardness if service temperatures cross $300^\circ\text{F}$ ($149^\circ\text{C}$). Pyrowear 53 bypasses this limitation via a balanced addition of Molybdenum and Silicon, which stabilizes the microstructure against thermal softening.

To achieve the micro-cleanliness required for military and aerospace flight safety, the alloy is produced via VIM-VAR (Vacuum Induction Melting followed by Vacuum Arc Remelting). This eliminates non-metallic inclusions that lead to rolling contact fatigue (RCF).

Nominal Chemical Composition (%)

2. Supply Configurations & Processing

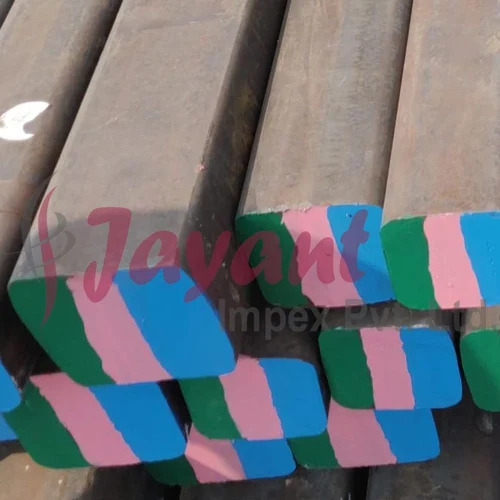

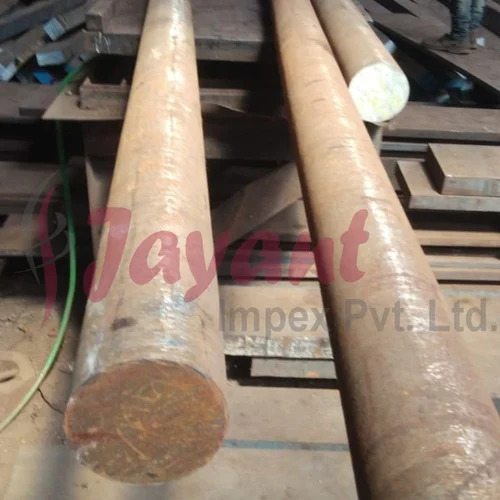

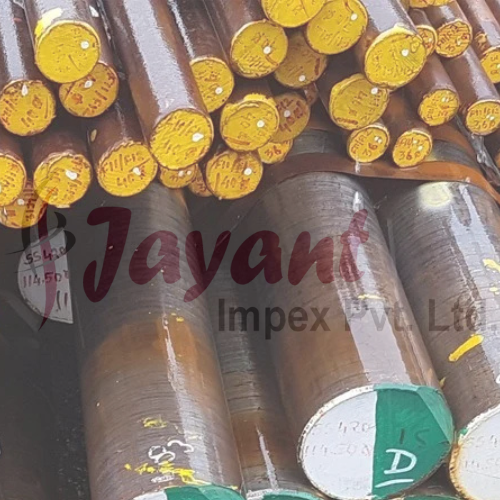

Pyrowear 53 Bars & Rods

Bars and rods serve as the foundational stock for machining precision gear teeth, splines, and drive shafts.

• Delivery Condition: Most frequently supplied in the annealed condition with a typical hardness around 2025 HRC. This maximizes machining speeds and extends tool life during complex milling, broaching, and turning operations before final heat treatment.

• Profiles: Standard stocking sizes range from cold-finished precision rods (0.500 diameter) up to large hot-rolled or forged round bars (7.000+ diameter).

• Quality Benchmarks: Bars are strictly evaluated against aircraft-quality cleanliness metrics, utilizing magnetic particle testing (AMS 2300) and strict ultrasonic scans to rule out sub-surface voids.

Pyrowear 53 Rings

For applications requiring high tangential strength and uniform structural response under heavy radial loads, Pyrowear 53 is processed into seamless rolled rings.

• The Forging Advantage: Rolled ring forging aligns the metal's grain flow circumferentially around the ring. This directional grain flow drastically improves fatigue life and resistance to impact shock compared to parts machined directly from flat plate or large-diameter bar cores.

• Common Uses: Helicopter planetary ring gears, high-temperature bearing races, outer couplings, and heavy-duty transmission retaining rings.

3. Heat Treatment & Carburizing Profile

To achieve its signature combination of a glass-hard exterior and a bulletproof interior, Pyrowear 53 follows a specific thermochemical treatment roadmap:

1. Carburizing: Typically performed via vacuum or gas carburizing at $1650^\circ\text{F}$ to $1750^\circ\text{F}$ ($899^\circ\text{C}$ to $954^\circ\text{C}$) to diffuse carbon into the surface layer.

2. Core Refinement & Quenching: Rapidly oil or gas quenched from a solution temperature to develop a strong martensitic core structure.

3. Sub-Zero Treatment: Frozen down to $-100^\circ\text{F}$ ($-73^\circ\text{C}$) or lower to force any unstable retained austenite in the carburized case to convert completely into hard martensite.

4. Elevated Tempering: Tempered at roughly $450^\circ\text{F}$ to $525^\circ\text{F}$ ($232^\circ\text{C}$ to $274^\circ\text{C}$). This yields a final surface case hardness of 6064 HRC while preserving a deep core toughness profile.

4. Key Strategic Applications

• Aerospace Drivetrains: Helicopter main rotor transmission gearboxes, tail rotor drive pinions, and planetary power-transmission systems.

• High-Performance Motorsports: Heavily loaded input shafts, differential ring gears, and pinion sets in Formula 1, NASCAR, and top-tier off-road racing where thermal spikes are common.

• Turbine Engine Components: High-temperature accessory gearbox shafts, splined couplings, and starter-generator gears.
