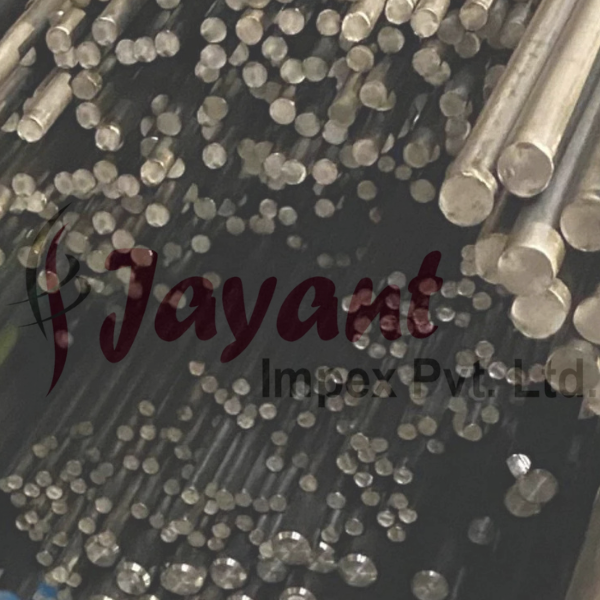

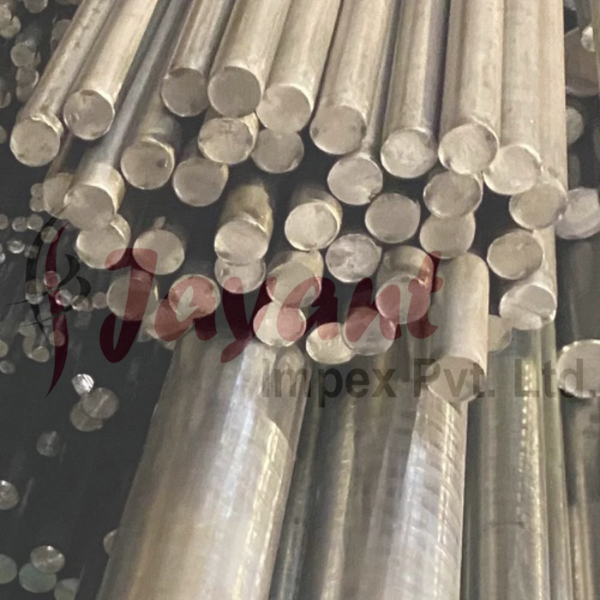

Mm-S-2102 Lescalloy Steel Round Bar, Mm-S-2102 Alloy Steel Rods,Bars(Nickel Cobalt Aircraft Armour)

Product Description

MM-S-2102 is a legacy corporate aerospace material specification originally established by McDonnell Douglas (now part of Boeing). It designates a premier ultra-high-strength, low-alloy structural steel known commercially as Lescalloy HP 9-4-30 Vac-Arc (UNS K91283 / K91313).

This grade is heavily cross-referenced with industry standards like AMS 6526, AMS 6524, and Boeing's BMS 7-182. It is highly specialized for defense applications requiring exceptional ballistic shock absorption, such as aircraft armor plating, high-stress structural components, and rocket casings.

1. Core Metallurgy & Chemistry

The chemical design behind MM-S-2102 centers on its 9% Nickel and 4% Cobalt balance (nominally 7.5% Ni and 4.5% Co).

• Nickel (Ni): Delivers phenomenal deep-hardening properties and guarantees extreme fracture toughness at low temperatures or under dynamic impact.

• Cobalt (Co): Prevents the steel from softening when subjected to high-temperature tempering cycles and minimizes the formation of unstable retained austenite.

• Vacuum Melting: It is strictly produced via VIM-VAR (Vacuum Induction Melting followed by Vacuum Arc Remelting) to maintain extreme cleanliness, reducing microscopic impurities that could trigger fatigue cracks under ballistic force.

Nominal Chemical Composition (%)

2. Supply Profiles: Round Bars, Rods, and Bars

Under the MM-S-2102 specification, bar products are tailored for demanding manufacturing and machining workflows:

• Delivery Condition: Most frequently stocked and supplied in the Normalized & Tempered (N&T) or subcritically annealed condition. This provides an optimal grain structure for clean machinability and saw-cutting before final heat treatment.

• Dimensions: Round bars and rods are typically available in diameters ranging from 12 mm up to 300 mm (and custom forged billets up to 1200 mm for massive industrial parts).

• Processing Capabilities: The material can be ordered as hot-rolled, centerless peeled, cold-drawn, or proof-machined.

• Rigid Flight-Safety Testing: Every lot must undergo strict non-destructive testing (NDT), typically conforming to macroetch standards and ultrasonic inspection metrics like MIL-STD-2154 Class A to guarantee internal integrity.

3. High-Performance Mechanics & Weldability

What makes HP 9-4-30 unique compared to other legendary 220+ ksi tensile steels (like 300M or AISI 4340) is its weldability and incredible fracture toughness ($K_{Ic}$).

Key Performance Benchmarks (Heat Treated)

• Ultimate Tensile Strength (UTS): 220,000 240,000 psi (1517 1655 MPa)

• Yield Strength (0.2% offset): ~200,000 psi (1379 MPa) minimum

• Fracture Toughness ($K_{Ic}$): Typically an exceptional 130 ksiin ($143\text{ MPa}\sqrt{\text{m}}$) at maximum strength levels.

• Superior Weldability: Unlike standard ultra-high-strength steels that become brittle or crack in the Heat-Affected Zone (HAZ), MM-S-2102 can be inert-gas shielded (TIG) welded using matching chemistry filler wires.

4. Strategic Structural Applications

Because it acts as an elite shield against fatigue, high-pressure stresses, and explosive fragments, MM-S-2102 is highly targeted:

• Military Drivetrains & Actuators: Heavy-duty military aircraft landing gear assemblies, wing attachment pivots, and torque shafts.

• Ballistic Defenses: Structural cockpit frameworks and close-proximity engine shroud plates acting as aircraft armor against anti-aircraft fragments.

• Aerospace Pressure Systems: Solid rocket motor casings, deep-space missile fairing joints, and explosive bolt rings.
