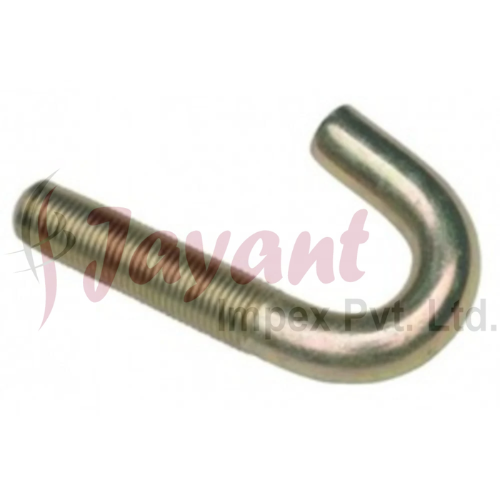

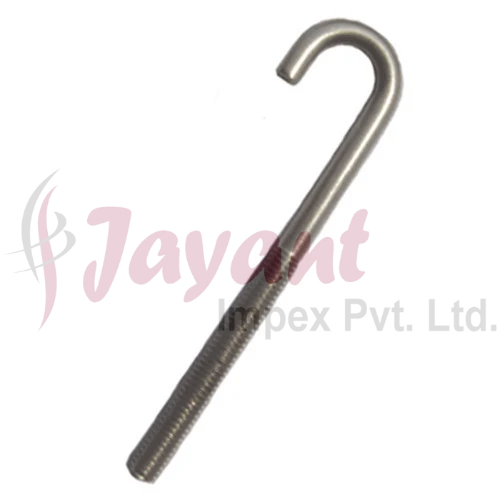

Industrial J Bolt

Product Description

Industrial J-bolts are specialized fasteners shaped like the letter "J," primarily used for anchoring structural steel to concrete foundations or for hanging heavy industrial equipment. The curved "hook" end is designed to be embedded directly into wet concrete or hooked around rebar/pipe, while the straight threaded end remains exposed for securing nuts and plates.

Key Industrial Applications

• Foundation Anchoring: Securing structural columns, signposts, and heavy machinery to concrete pads.

• Construction & Roofing: Hooking over steel beams or purlins to secure roofing panels or wall cladding.

• Pipe & Conduit Support: Hanging or guiding large industrial piping systems from overhead supports.

Common Material Grades

• Carbon Steel (Zinc Plated/Galvanized): The standard for most construction projects. Hot-dip galvanized coatings are preferred for outdoor structural use to prevent rust.

• 304 Stainless Steel: Used in food processing plants, dairies, and general industrial settings where frequent washdowns or moisture are present.

• 316 Stainless Steel: Specifically for chemical processing plants, wastewater treatment, and marine environments where high resistance to corrosive agents is required.

• Alloy Steel (ASTM F1554): The engineering standard for structural anchor bolts. Grade 36, 55, or 105 indicates the minimum yield strength required for heavy structural loads.

Recommended J-Bolt Options

Grip-It Stainless Steel J-BoltA 304 stainless steel J-bolt designed for durability in corrosive environments. This is a reliable choice for industrial mounting where standard steel might degrade over time.

Western Prime J-Bolt Foundation AnchorA heavy-duty M12 x 200mm anchor bolt. Its length and diameter make it suitable for embedding into concrete footings to secure structural base plates.

Hytric Zinc Plated J-Hook BoltThese are smaller M6 x 100mm bolts, ideal for lighter industrial tasks like securing wire mesh, hanging light fixtures, or cable management in a warehouse setting.

Technical Selection Checklist

When selecting industrial J-bolts, consider these three critical dimensions:

1. Diameter: Determines the tensile and shear strength (common sizes: M10 to M24 or 3/8" to 1").

2. Overall Length: Must account for the depth of the concrete embedment plus the thickness of the base plate and nut.

3. Hook Length/Diameter: Ensure the "hook" is wide enough to clear any rebar or beams it needs to grab onto.
