Product Description

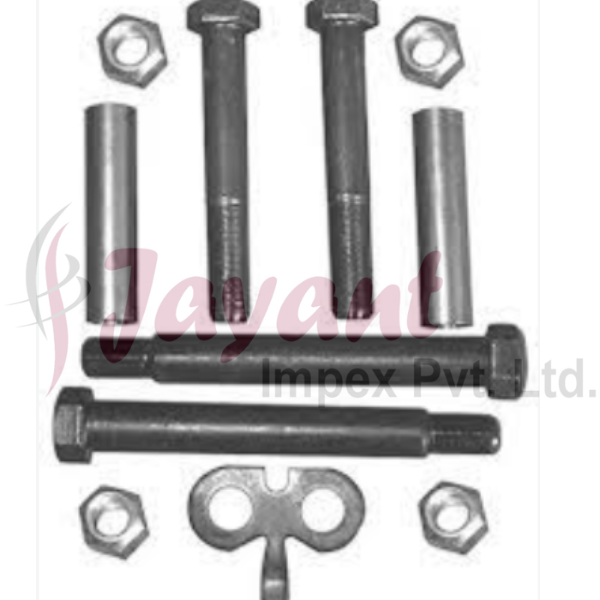

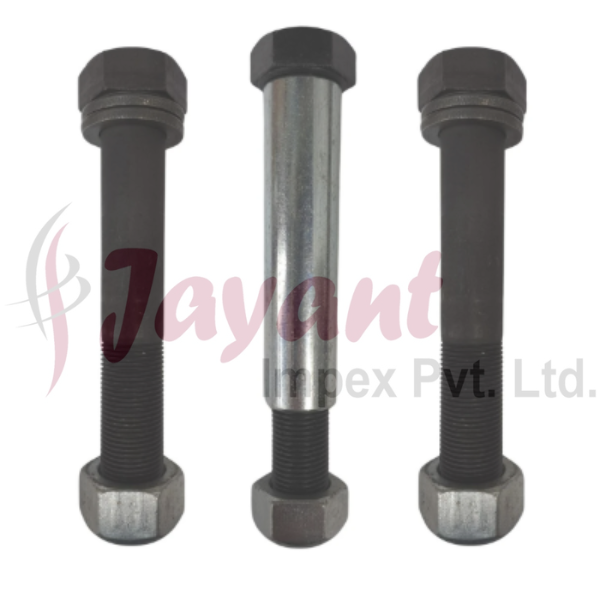

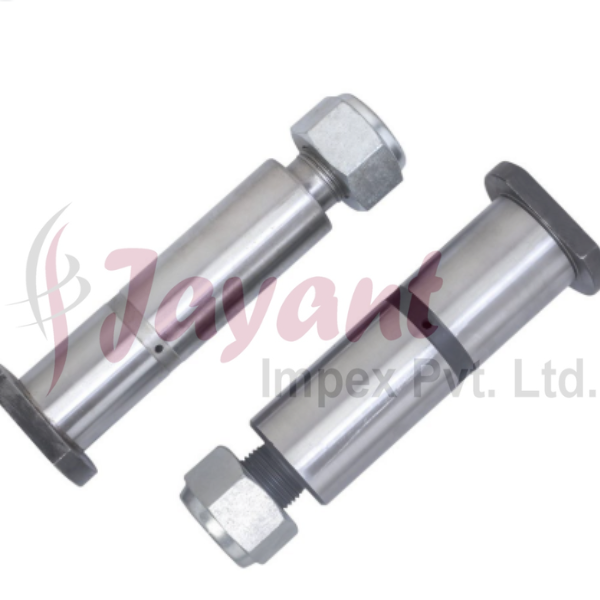

In industrial suspension and heavy-duty transport systems, an equalizer bolt is a critical pivot fastener used in multi-axle leaf spring assemblies. Its primary function is to secure the "equalizer"—a triangular or bar-shaped rocker—to a center hanger, allowing the suspension to pivot and distribute weight evenly across all axles.

Because these bolts act as the primary hinge point for several tons of load, they are subjected to extreme shear forces and constant oscillation.

Key Design Features

1. Greaseable (Wet) vs. Non-Greaseable (Dry)

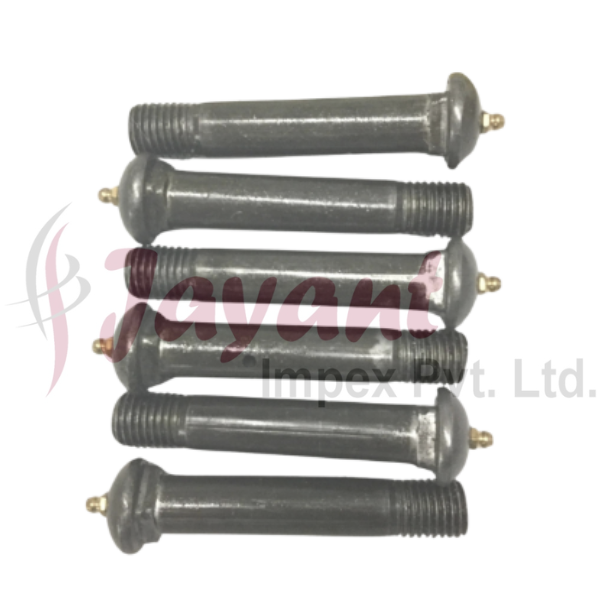

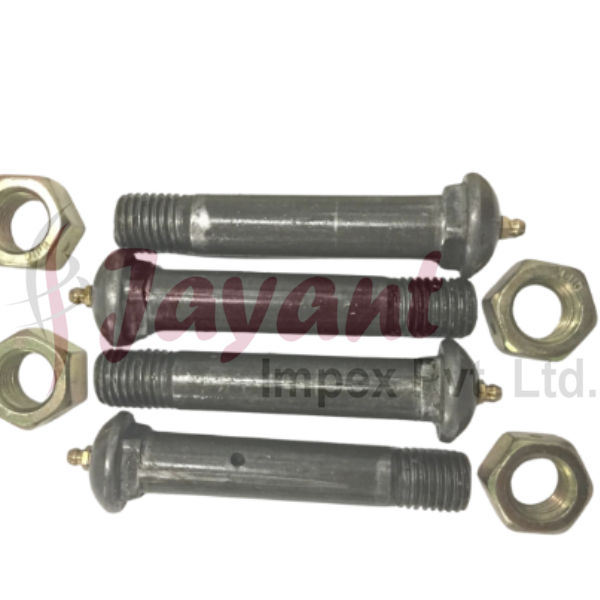

• Wet Bolts: These feature a grease zerk fitting on the head and a cross-drilled hole in the shank. This allows for regular lubrication of the bushing, significantly reducing friction and wear in high-cycle industrial environments.

• Dry Bolts: Standard solid bolts used in maintenance-free or light-duty systems. These rely on the inherent properties of the bushing (often nylon or rubber) rather than external lubrication.

2. Splined or "Knurled" Shoulders

Many industrial equalizer bolts feature a splined section just under the head.

• Purpose: The splines bite into the suspension hanger, locking the bolt in place so it cannot rotate.

• Benefit: This ensures that all rotational movement occurs between the bolt's smooth shank and the bushing, rather than wearing out the holes in the steel hanger.

3. Material Strength

Equalizer bolts are almost exclusively Grade 5 or Grade 8 (or Metric Class 8.8 / 10.9) heat-treated alloy steel. Given the safety-critical nature of the part, they must possess high tensile strength while maintaining enough ductility to withstand sudden road impacts without snapping.

Technical Specifications

Common Applications

• Heavy-Duty Trailers: Flatbeds, tankers, and lowboys using tandem or triple axle leaf spring suspensions.

• Agricultural Equipment: Large grain carts or manure spreaders that travel over uneven terrain.

• Mining Machinery: Mobile crushing units or modular plant equipment that requires a balanced load distribution across multiple support points.

Maintenance and Failure Modes

• Seizing: In "dry" systems, the bolt can rust-weld itself to the bushing, preventing the suspension from equalizing and leading to cracked leaf springs.

• Elongated Holes: If the bolt isn't properly torqued or the splines strip, the bolt will begin to rotate within the hanger, "egging out" the mounting holes and requiring expensive hanger replacement.

• Shear Wear: Over time, the constant pivot motion can wear a groove into the bolt shank, reducing its diameter and increasing the risk of sudden shear failure.
