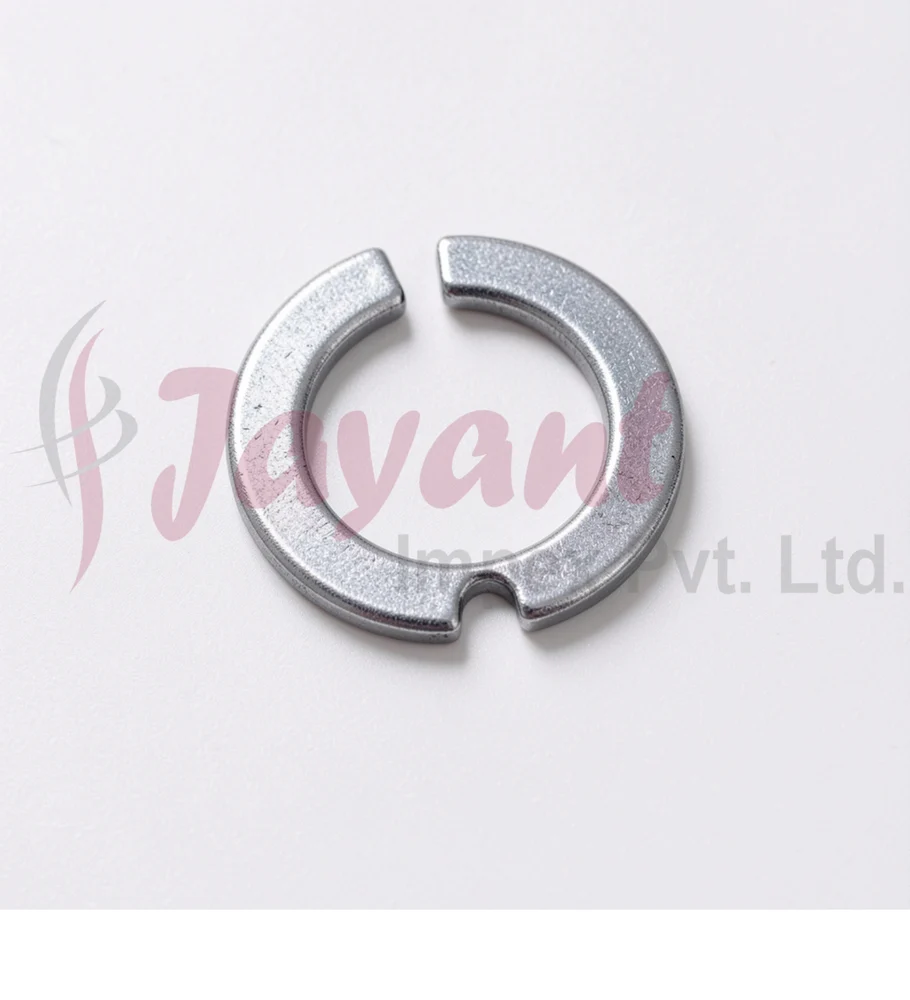

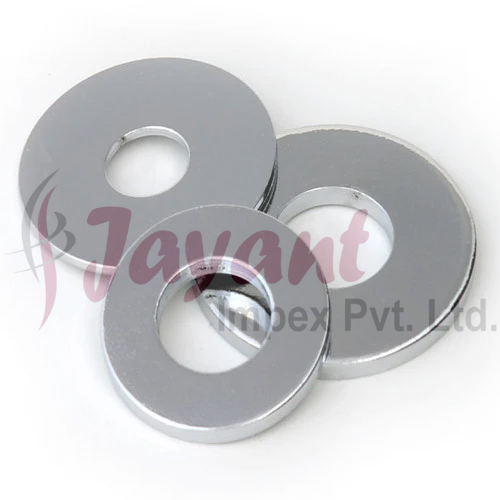

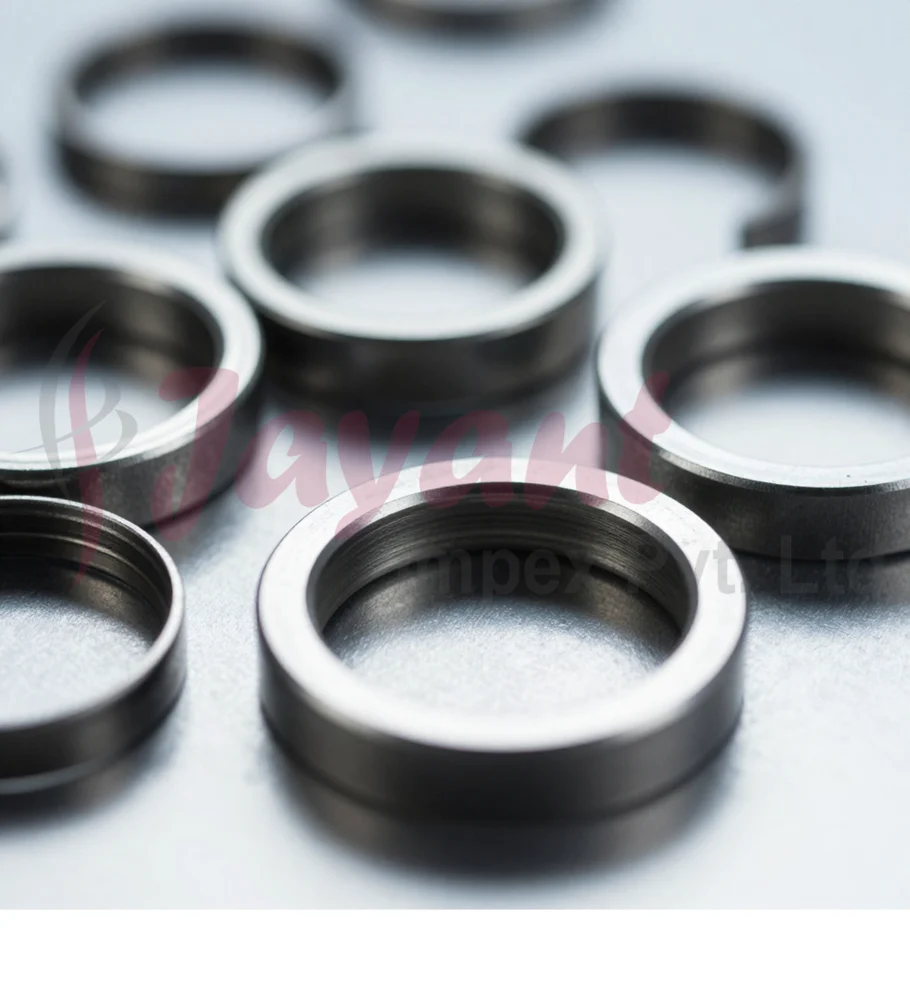

Industrial Customized Washers

Product Description

In industrial engineering, customized washers are often the "missing link" that allows a fastening system to survive extreme environments or unique mechanical constraints. While standard flat washers simply distribute load, customized variants are engineered for specific functions like vibration damping, electrical insulation, or precise spacing.

1. Specialized Mechanical Profiles

When standard DIN or ASME dimensions aren't sufficient, washers are custom-machined or stamped into specialized geometries:

• Conical (Belleville) Washers: Custom-engineered to act as heavy-duty springs. By adjusting the height-to-thickness ratio, engineers can create a specific spring rate to maintain bolt tension during thermal expansion or high-vibration cycles.

• Spherical (Self-Aligning) Washers: A two-piece set consisting of a male and female part. They allow a bolt to remain perpendicular even if the mounting surface is angled (up to 3° or 4°), preventing bending stress on the bolt shank.

• Tab & Lock Washers: Custom-stamped with internal or external tabs that are bent against a nut or a flat surface to physically prevent rotation in safety-critical applications.

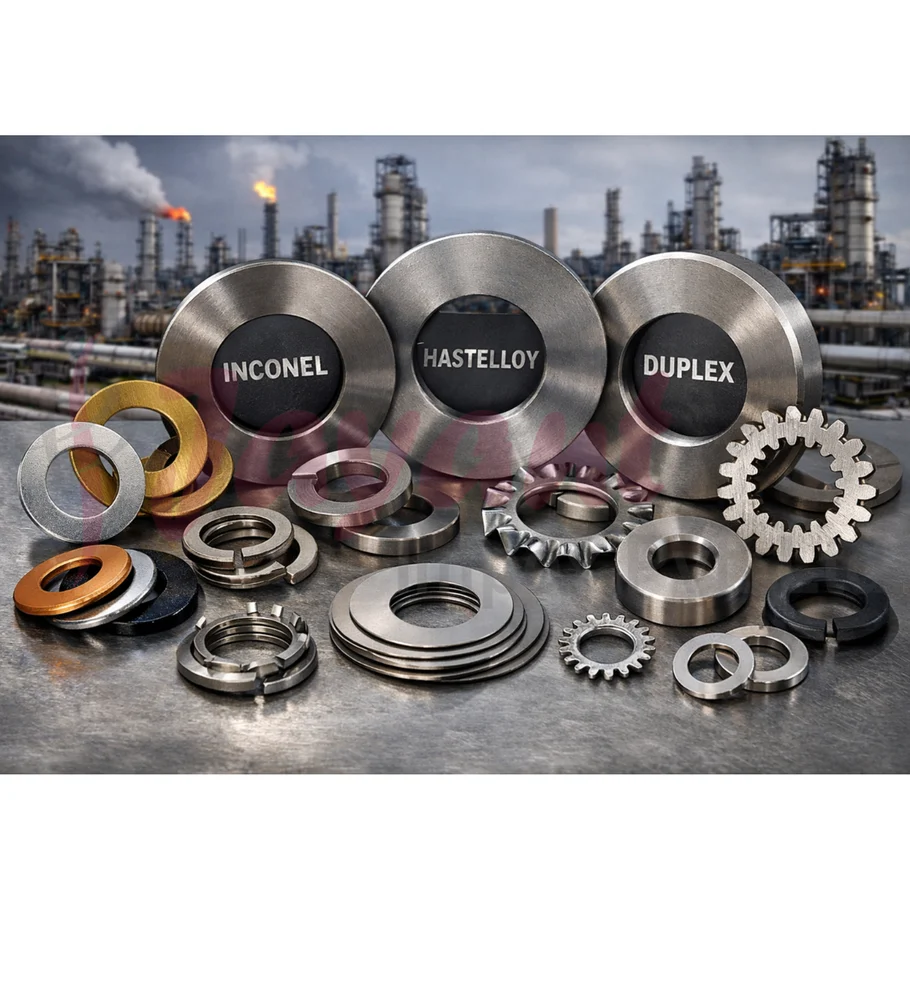

2. High-Performance Industrial Materials

Customization often focuses on the chemical and thermal properties of the material rather than just the shape.

3. Precision Customization Processes

Depending on the required tolerances and volume, different manufacturing methods are used:

• Laser & Waterjet Cutting: Best for low-volume prototypes or very thick plates where stamping dies would be too expensive.

• Precision Grinding: Used when "thickness tolerance" is critical (e.g., within $\pm 0.005\text{ mm}$). These are often called precision shims and are used to align gearboxes or motors.

• Through-Hardening & Case-Hardening: Custom heat treatments like nitriding or carburizing to increase surface hardness, preventing the washer from "dishing" under the extreme clamping force of a Grade 12.9 bolt.

4. Critical Design Factors

If you are specifying a custom washer, the following parameters are essential for the manufacturer:

1. ID (Inner Diameter): Must be slightly larger than the bolt diameter but tight enough to prevent centering issues.

2. OD (Outer Diameter): Limited by the "clearing" space around the bolt hole. A larger OD reduces the bearing pressure ($P = F/A$) on the substrate.

3. Flatness/Parallelism: In high-speed rotating equipment, a non-parallel washer can introduce a slight bend in the bolt, leading to fatigue failure.

4. Edge Treatment: Custom washers for aerospace often require radiused edges to prevent stress risers in the surrounding material.

5. Surface Coatings and Finishes

• Dacromet/Geomet: High-performance zinc-flake coatings for automotive and wind energy that offer superior corrosion resistance without the risk of hydrogen embrittlement (a common issue with electroplating).

• Xylan/PTFE: Applied to reduce friction during assembly, ensuring that torque values translate accurately into bolt tension.
