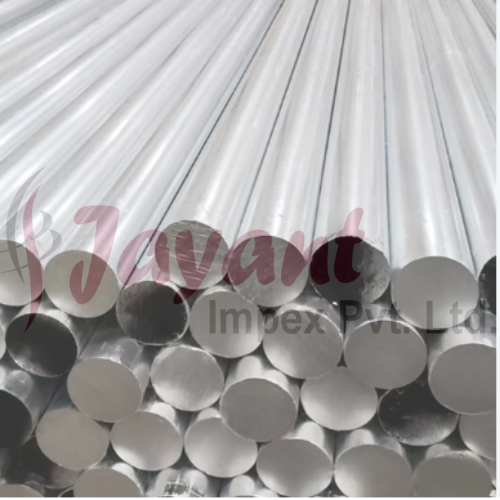

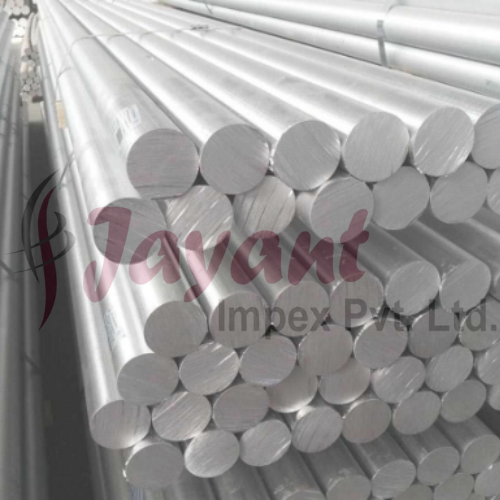

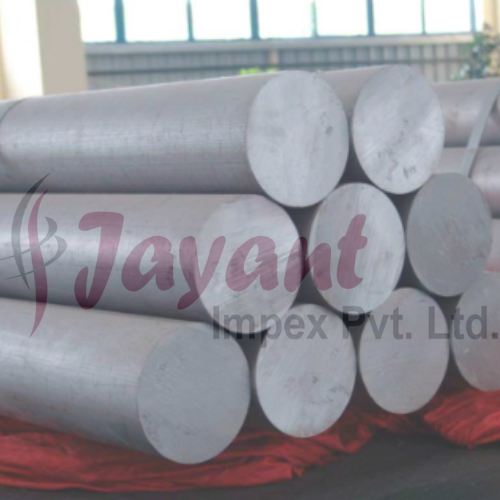

Inconel 690 Round Bars

Product Description

UNS N06690 (commonly known as Inconel 600 family upgrade: Inconel 690 / DIN 2.4642) is a high-chromium nickel superalloy specifically engineered to provide exceptional resistance to high-temperature corrosion, oxidizing chemicals, and severe stress-corrosion cracking (SCC).

Key Technical Attributes

• Ultra-High Chromium Content: Containing 27.0% to 31.0% Chromium (nearly double that of Inconel 600), it forms an exceptionally stable surface oxide film that resists aggressive oxidizing media such as nitric or nitric/hydrofluoric acid solutions.

• Chloride Stress-Corrosion Resistance: The minimum 58.0% Nickel base makes round bars practically immune to chloride-induced stress-corrosion cracking and sodium hydroxide degradation.

• Service Temperatures: Provides high thermal stability and excellent oxidation resistance up to 1100C (2012F).

Specifications & Dimensional Configurations

• Standard Codes: ASTM B166, ASME SB166 (Rods and Bars), ASTM B564 / ASME SB564 (Forging Stocks).

• Size Limits: Available from precision ground wires to heavy-forged shafts (diameters typically range from 3 mm to over 300 mm).

• Finishes: Supplied in black hot-rolled, rough-turned, peeled, or bright centerless ground conditions.

Procurement Options & Sourcing

If you are sourcing material for custom machining or structural framing, multiple standard configurations are widely supplied:

• For High-Precision Machining: The Inconel 690 Round Bar - Diameter 6-100 mm serves as an excellent foundational stock for precision engineering parts, featuring excellent weldability and cross-sectional density stability.

• For Small Structural Support & Tooling: The Inconel 690 Round Bars - Diameter: 6 Millimeter offers a polished finish and precise dimensions, designed primarily for high-temperature settings or structural support elements.

• For Large-Scale Fastener Feedstock: The Silver Inconel 690 Round Bars provide consistent metallurgical integrity tested stringently to meet rigorous quality standards for demanding applications.
