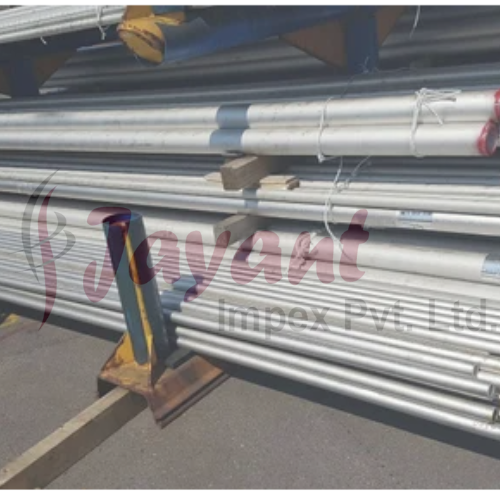

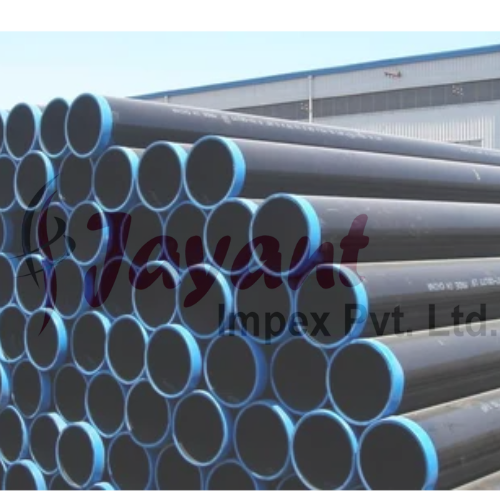

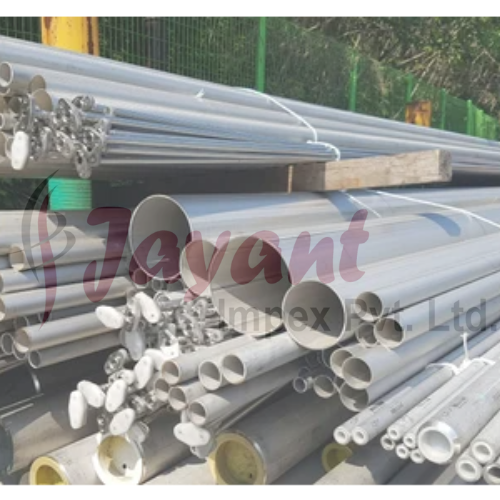

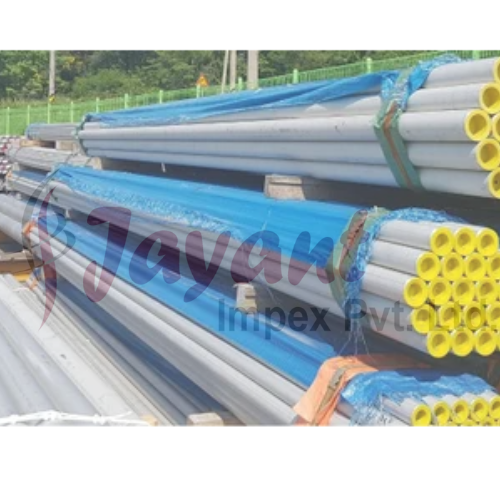

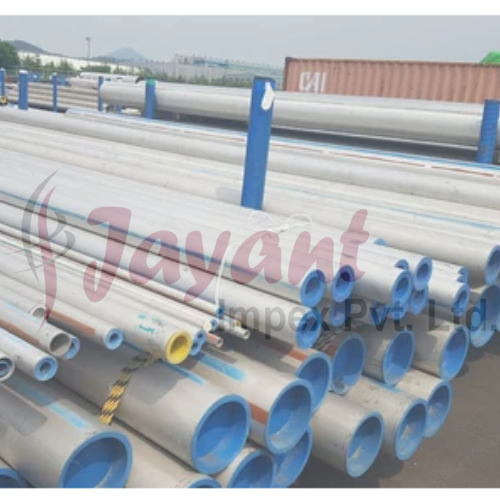

ERW Pipes

Name: ERW Pipes
Brand: JAYANT IMPEX
Price: 60.0 INR
Availability: InStock

60.0 INR/Piece

Get a Price/Quote

Product Details:

Temperature Range -20C to +400C
Coating Type Black Paint, Zinc Galvanized
Thread Type As per requirement
Bend Radius As per Diameter, Not intended for cold bending
Tolerance 0.5 mm
Diameter 21.3 mm - 508 mm
Sealing Type Dependent on Application
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

ERW Pipes Price And Quantity

Price 60.0 INR/Piece
Minimum Order Quantity 1 Piece

ERW Pipes Product Specifications

Temperature Range -20C to +400C
Length 6 m / 12 m / Custom Length
Color Black with Blue Ends
Rated Pressure As Per Standard Specification
Outer Diameter 21.3 mm to 508 mm
Standard ASTM A53, IS 1239, BS 1387
Thread Type As per requirement
Bend Radius As per Diameter, Not intended for cold bending
Product Type ERW Pipes
Coating Type Black Paint, Zinc Galvanized
Material Grade IS 1239, ASTM A53 Gr. A/B, API 5L Gr. B
Surface Treatment Black Painted, Galvanized
Connection Plain End / Beveled End
Shape Round
Sealing Type Dependent on Application
Diameter 21.3 mm - 508 mm
Tolerance 0.5 mm
Usage Industrial, Water, Plumbing, Structural
Flexibility Rigid
Application Oil and Gas Transmission, Water Supply, Construction
Thickness 2 mm to 12 mm
Connection Type Plain, Screwed, Grooved
Material Mild Steel / Carbon Steel
Yield Strength 195 - 415 MPa
Section Shape Circular
Tensile Strength 330 - 550 MPa

Corrosion Resistance High (if galvanized/coated)
End Protection Plastic Caps on Ends
Weight As per size & thickness
Manufacturing Process Cold Formed from Hot Rolled Coil
Packing Bundles with Steel Strips / Loose
Inspection 100% Hydrostatic & Eddy Current Tested
Welding Type Electric Resistance Welded (ERW)

Product Description

ERW (Electric Resistance Welded) pipes are manufactured by cold-forming a flat steel strip (skelp) into a cylindrical shape and passing an electric current across the meeting edges to fuse them together through resistance heating.

Unlike conventional arc welding processes, modern ERW pipe manufacturing requires no filler metalthe bond relies entirely on high-frequency electrical current (HFW) combined with mechanical pressure from squeeze rolls.

Manufacturing Process

Modern high-frequency welding (HFW) typically follows a multi-step continuous line:

Uncoiling & Leveling: Hot-rolled coil steel strip is uncoiled, flattened, and trimmed to precise width.
Cold Roll Forming: A series of roller dies progressively bend the flat strip into a open circular profile.
High-Frequency Welding: High-frequency current (typically 100 kHz to 500 kHz) concentrates along the meeting edges. The localized electrical resistance heats the steel to its forging temperature (~1350C to 1400C).
Squeeze & Flash Removal: Squeeze rolls press the molten edges together to form a solid forged bond. Continuous cutting tools scrape away excess internal and external weld flash (bead).
Seam Heat Treatment: The heat-affected zone (HAZ) is inline induction-annealed to normalize the microstructure and restore mechanical toughness around the weld seam.
Sizing & NDT Inspection: The tube is sized to exact outer diameter tolerances and passed through non-destructive ultrasonic or eddy-current testing before final hydrostatic testing.

Comparison: ERW vs. Seamless vs. LSAW

Feature	ERW (Electric Resistance Welded)	Seamless (SMLS)	LSAW (Longitudinal Submerged Arc)
Raw Material	Hot-Rolled Strip / Coil	Solid Steel Billet	Heavy Steel Plate
Filler Metal	None (Forged seam)	None (Solid extrusion/piercing)	Wire & Flux (Submerged arc)
Diameter Range	1/2" to 24" (DN15 DN600)	1/8" to 26" (DN6 DN650)	16" to 60"+ (DN400 DN1500+)
Wall Thickness	Light to medium	Medium to heavy	Heavy / Extra-heavy
Dimensional Tolerance	Extremely uniform wall thickness	Variable wall eccentricity	Very precise
Cost Efficiency	High (Cost-effective for long runs)	Higher manufacturing cost	Higher per-ton production cost

Key Standards & Material Grades

ERW pipes are specified across major international standards based on operating pressure and application:

ASTM A53 / A135 / A500: General structural, plumbing, and low-pressure fluid transport (Grades A, B, C).
API 5L (Line Pipe): Oil and gas transportation lines (Grades B through X70; PSL1 and PSL2 levels).
EN 10217-1 / EN 10255: European pressure purposes and non-alloy steel tubes (e.g., P235TR1, S235JR).
DIN 2458 / ISO 3183: Metric dimensional and delivery standards for welded steel pipes.

Common Applications

Fluid Transport: Low-to-medium pressure water mains, fire protection lines, HVAC chilled water, and gas distribution.
Oil & Gas Gathering: Onshore flowlines and transmission pipelines operating under moderate pressure regimes.
Structural & Mechanical: Scaffolding, piling, hollow structural sections (HSS), automotive shafts, and furniture tubing.
Casing & Tubing: Low-depth water wells and shallow oil/gas well casing (API 5CT ERW grades).

Precision Engineering and Surface Protection

Our ERW pipes are crafted with meticulous attention to detail, employing a cold-forming process from hot rolled coils. Each pipe undergoes rigorous hydrostatic and eddy current testing, with end protection provided by durable plastic caps. A high-quality external coating-either black paint or zinc galvanization-further shields the pipes from corrosion and mechanical wear, ensuring longevity even in harsh environments.

Versatile Applications and Customization

ERW Pipes are extensively employed across industries for water supply, oil and gas transmission, construction, plumbing, and various structural applications. Available in a wide range of diameters (21.3 mm to 508 mm) and thicknesses (2 mm to 12 mm), with customizable lengths and ends (plain, beveled, screwed, threaded), they provide adaptable solutions meeting standard specifications and demanding project requirements.

FAQ's of ERW Pipes:

Q: How are ERW Pipes with end protection manufactured?

A: These pipes are produced using Electric Resistance Welding (ERW), where cold-formed pipes are shaped from hot rolled coils and joined via a high-frequency electric current along the seam. End protection is added by fitting plastic caps to prevent damage during transit and handling.

Q: What advantages do galvanized or coated ERW pipes offer?

A: Galvanized or zinc-coated ERW pipes exhibit high corrosion resistance, making them suitable for water, oil, gas, and industrial applications. The protective coating extends the service life, particularly in environments where pipes are exposed to moisture or chemicals.

Q: When should ERW Pipes be used in construction and industrial projects?

A: ERW Pipes are ideal for structural, water supply, plumbing, and oil and gas transmission projects requiring precision, strength, and reliable performance. Their adaptability in length, diameter, and finish supports diverse and custom project requirements.

Q: Where are these pipes commonly supplied and who can purchase them in India?

A: These pipes are widely available from dealers, exporters, fabricators, manufacturers, producers, retailers, suppliers, and traders across India, supporting a wide distribution network for timely and reliable supply.

Q: What is the inspection and quality assurance process for these pipes?

A: Each ERW pipe undergoes 100% hydrostatic and eddy current testing. These stringent inspections ensure every pipe meets the required tolerance (0.5 mm) and quality standards such as ASTM A53, IS 1239, and BS 1387 before dispatch.

Q: How do end caps benefit ERW pipes during transportation and installation?

A: Plastic caps on pipe ends protect against mechanical damage, contamination, and corrosion ingress, ensuring pipes reach their destination in optimal condition and maintain structural integrity during storage and installation.

Q: What type of surface treatment is available for ERW pipes?

A: Surface treatments include black painting and zinc galvanizing. These finishes enhance corrosion resistance, extend the pipe's lifespan, and are selected based on the intended use and environmental exposure conditions.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in ' Pipes Tubes' category

Seamless, Welded ASTM A182 F53 Super Duplex Steel Pipes Price : 558.0 INR/Piece Minimum Order Quantity : 1 Rated Pressure : Up to 6000 psi (varies by size and thickness) Color : Metallic Silver Length : Single Random, Double Random, or Cut Lengths up to 12 meters Temperature Range : 50C to +300C Product Type : Other, Pipe Coating Type : None (Bare), as requested Material Grade : F53 (UNS S32750) Thread Type : NPT, BSPT, as specified Standard : Other, ASTM A182 F53 Bend Radius : As per ASME B36.19/Desired Specification Outer Diameter : 6 mm to 630 mm Usage : Industrial, Chemical, Petrochemical, Oil & Gas, Marine Tolerance : 0.5% or as specified Diameter : 6 mm to 630 mm Connection : Other, Welded, Seamless Shape : Round Surface Treatment : Other, Pickled, Polished, Annealed Tensile Strength : Minimum 800 MPa Yield Strength : Minimum 550 MPa Section Shape : Other, Circular Material : Other , Super Duplex Steel Connection Type : Butt Weld, Socket Weld, Threaded Thickness : 1 mm to 50 mm or as required Application : other, High Corrosive Environments, Pressure Piping, Marine Applications Flexibility : Rigid Sealing Type : Metal to Metal, Welded

Send Inquiry

304 Stainless Steel Pipe Price : 275.0 INR/Kilograms Minimum Order Quantity : 1 Rated Pressure : Dependent on wall thickness and pipe rating Color : Metallic Silver Length : 6 meter (standard), Custom cut lengths available Temperature Range : 196C to +870C Product Type : Other, Pipe Coating Type : Uncoated / No additional coating Material Grade : SS 304 / 304L Thread Type : NPT / BSP (if threaded ends specified) Standard : Other, ASTM A312 / A213 / A249 Bend Radius : Depends on pipe diameter and wall thickness Outer Diameter : 6mm to 630mm Usage : Industrial, Construction, Plumbing, Fabrication Tolerance : 0.1mm Diameter : Varies (as per specification) Connection : Other, Welded / Seamless Shape : Round Surface Treatment : Other, Annealed/Pickled/Polished Tensile Strength : 515 MPa (min) Yield Strength : 205 MPa (min) Section Shape : Other, Circular Material : Other , 304 Stainless Steel Connection Type : Beveled End / Plain End / Threaded Thickness : 1mm to 20mm Application : other, Oil & Gas Industry, Chemical Processing, Water Supply, Food Industry Flexibility : Rigid Sealing Type : Depends on end connection

Send Inquiry

Stainless Steel Pipes Price : 300.0 INR/Piece Minimum Order Quantity : 1 Rated Pressure : Up to 6000 psi Color : Silver Length : 1 to 6 meters, custom lengths available Temperature Range : 196C to 870C Product Type : Other, Stainless Steel Pipes Coating Type : No external coating (natural polished surface) Material Grade : 304, 316, 202, 310, 321, 347 and others Thread Type : NPT, BSPT Standard : Other, ASTM A312 / A213 / A269 / A554 Bend Radius : Minimum 2.5 x outer diameter Outer Diameter : 6 mm to 630 mm Usage : Industrial, Construction, Architectural Tolerance : 0.1 mm Diameter : 6 mm to 630 mm Connection : Other, Welded / Seamless Shape : Round Surface Treatment : Other, Polished Tensile Strength : 515 750 MPa Yield Strength : 205 450 MPa Section Shape : Other, Circular Material : Stainless Steel Connection Type : Plain End, Beveled End, Threaded End Thickness : 1 mm to 20 mm Application : other, Chemical Industry, Oil & Gas, Food Processing, Construction, Automotive Flexibility : Rigid Sealing Type : Metallic

Send Inquiry

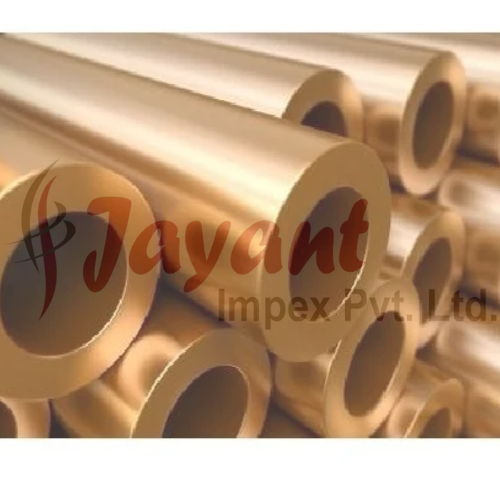

Non Ferrous Tubes Price : 50.0 INR/Meter Minimum Order Quantity : 1 Rated Pressure : Up to 40 Bar Color : Silver, Golden, Reddish Length : Up to 6 meters or as required Temperature Range : 196C to 400C Product Type : Other, Non Ferrous Tubes Coating Type : None, Nickel Plated, Tin Plated Material Grade : C12200, C11000, C70600, C68700, C44300, 6063, 6082 Thread Type : NPT, BSP, BSPT Standard : Other, ASTM, DIN, JIS, BS, EN Bend Radius : Custom as required Outer Diameter : 4 mm 219 mm Usage : Industrial, Plumbing, HVAC, Condenser, Heat Exchanger Tolerance : 0.05 mm Diameter : Up to 219 mm Connection : Other, Welded, Seamless Shape : Other, Round, Square, Rectangular Surface Treatment : Other, Polished, Annealed, Pickled, Bright Tensile Strength : 210 400 MPa Yield Strength : 70 350 MPa Section Shape : Other, Circular, Rectangular, Square Material : Other , Copper, Brass, Aluminium, Bronze, Cupro Nickel Connection Type : Butt Weld, Socket Weld, Threaded Thickness : 0.5 mm 20 mm Application : other, Oil & Gas, Chemical, Power, Refrigeration, Marine Flexibility : Rigid, Flexible (on request) Sealing Type : Metal to Metal, Gasket
