Conical Spring Washers

Product Description

Conical spring washers, most commonly known as Belleville washers, are disc-shaped fasteners designed to provide extremely high spring tension within a very small space. Unlike a standard flat washer, they are shaped like a shallow cone, allowing them to act as a heavy-duty spring when compressed.

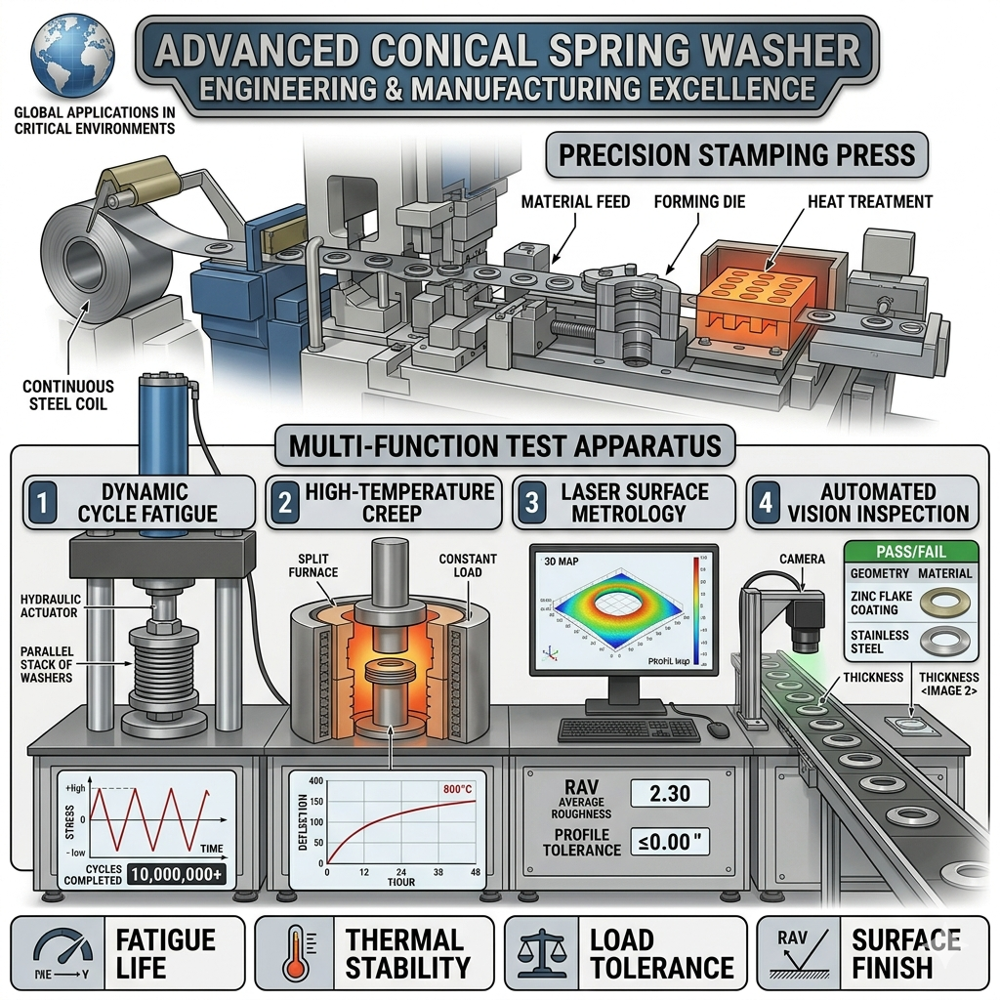

How They Work

When a load is applied to a conical washer, it flattens. Because the washer is made of high-strength, heat-treated material, it resists this flattening with a massive amount of counter-force. This makes them significantly more powerful than bowed or wave washers.

Key Industrial Advantages

• High Load Capacity: They can support very heavy loads that would easily crush other types of spring washers.

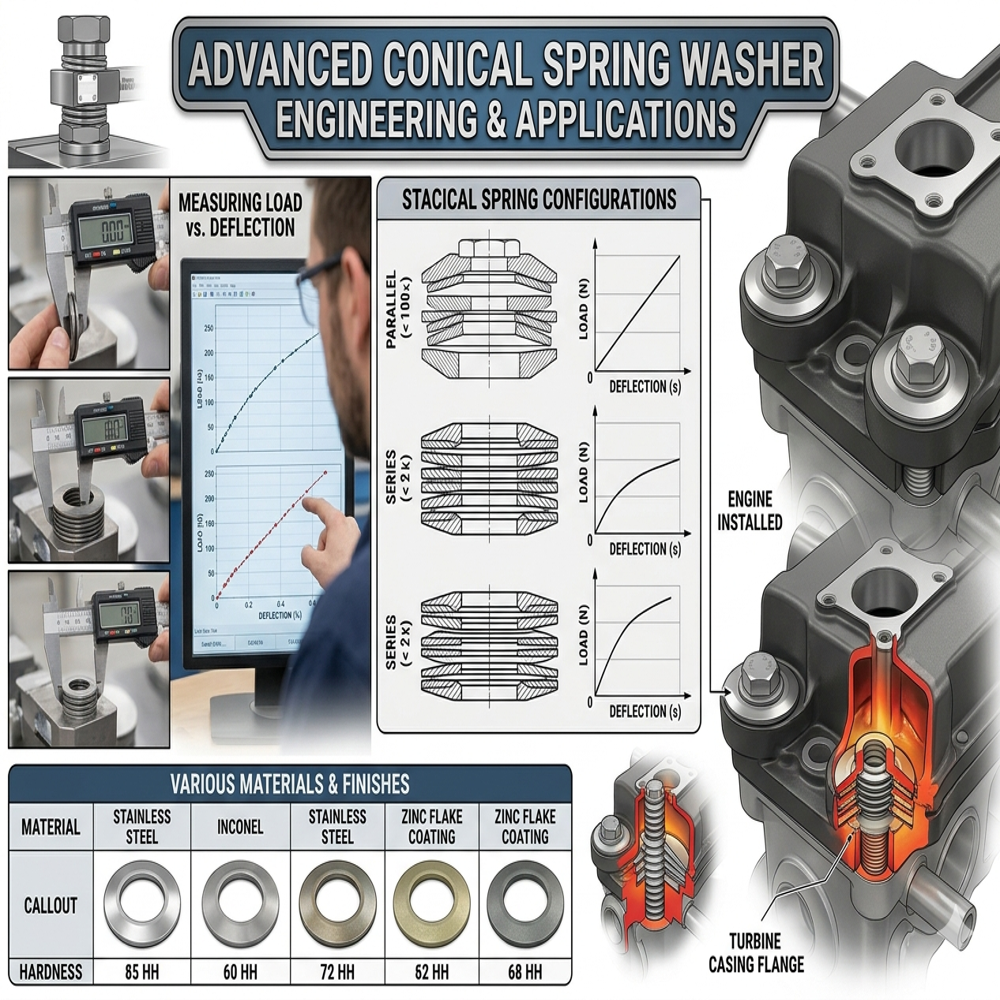

• Stackability: You can stack multiple washers to change the spring characteristics:

  • In Series (Opposite directions): Increases the distance the spring can travel (deflection).

  • In Parallel (Same direction): Increases the total load capacity (stiffness).

• Vibration Resistance: They maintain a constant "live" load on a bolted joint, preventing the nut from backing off even under extreme mechanical vibration.

• Thermal Compensation: They are excellent for joints that undergo temperature swings (like engine manifolds), as they expand and contract to maintain a constant clamping force.

Common Applications

• Heavy Machinery: Used in the assemblies of industrial presses, turbines, and heavy construction equipment.

• Electrical Switchgear: Maintaining pressure on busbars and electrical connections to prevent overheating from loose joints.

• Clutch & Brake Systems: Providing the necessary return force in automotive and industrial braking mechanisms.

• Structural Engineering: High-tension bolting for bridges and steel frameworks.

Material & Finish

• Chrome Vanadium (50CrV4): The engineering standard for high-fatigue life and heavy loads.

• Stainless Steel (304/316): Used for outdoor structural anchors, food processing, and marine applications to prevent corrosion-related failure.

• High-Carbon Spring Steel: A cost-effective choice for general industrial repairs, usually finished with Zinc Flake or Phosphate coating to provide lubrication and rust resistance.

Comparison: Conical vs. Other Washers

Recommended Options

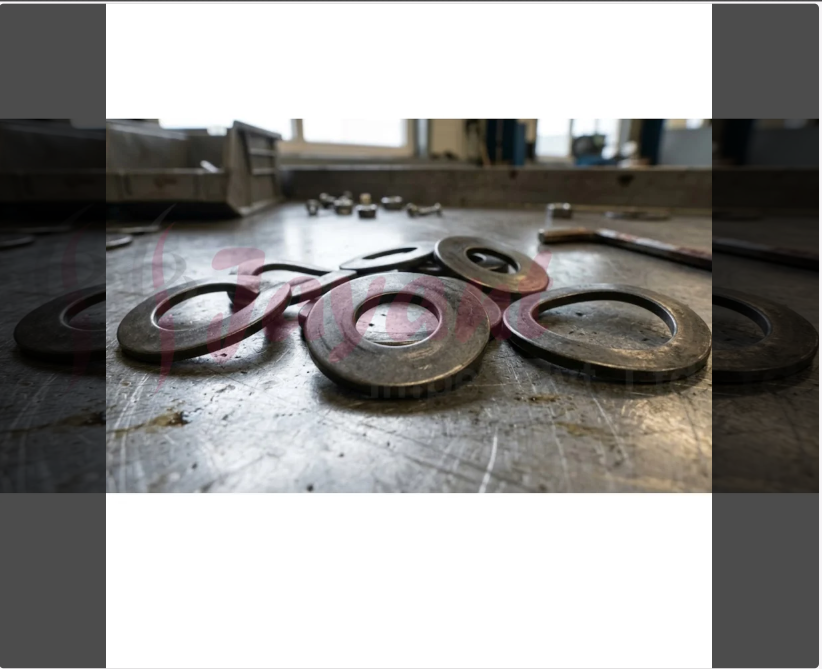

Industrial Grade Conical Spring Washers

These heat-treated spring steel washers are built for heavy-duty industrial use. They provide the necessary tension for high-torque bolting in automotive and machinery applications.

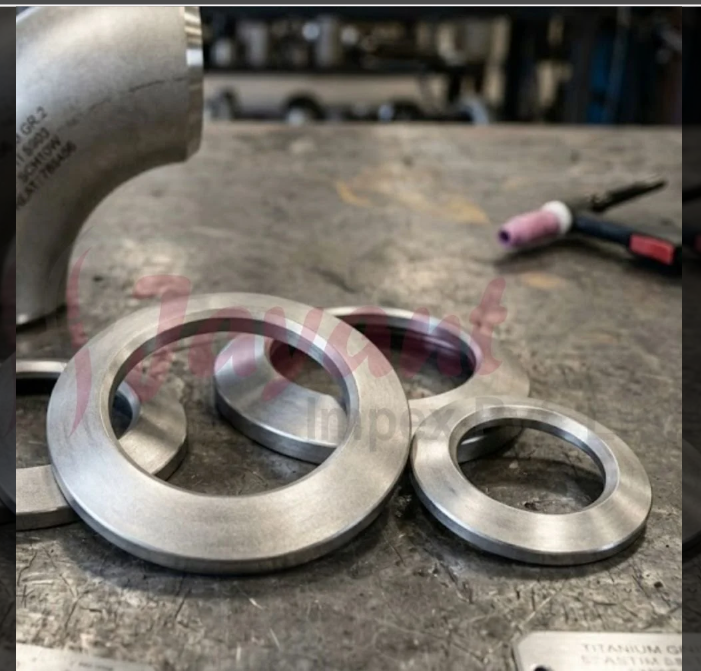

Stainless Steel 304 Belleville Set

Ideal for outdoor fixtures or marine hardware. These maintain their spring tension without rusting, even when exposed to harsh weather or salt spray.

Important Installation Tip

Ensure the "crown" (the top of the cone) is facing the bolt head or the nut. If installed upside down, the washer may not provide the intended spring force and could potentially damage the surface of the material you are fastening.
