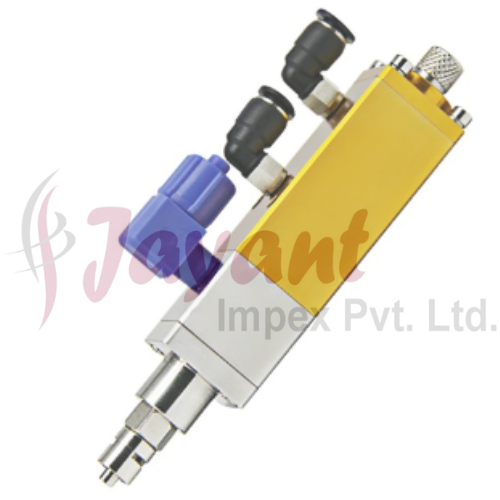

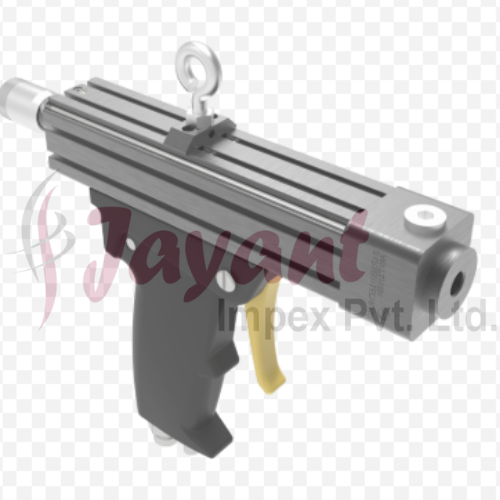

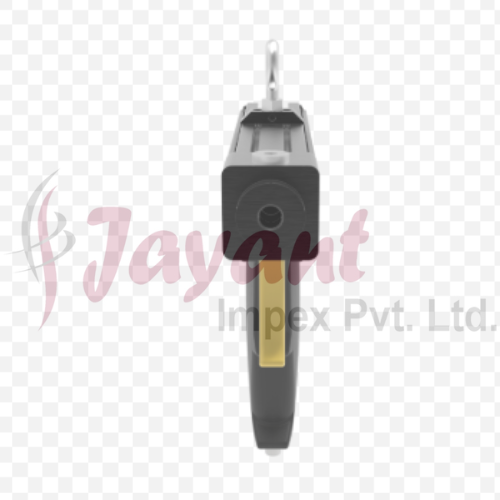

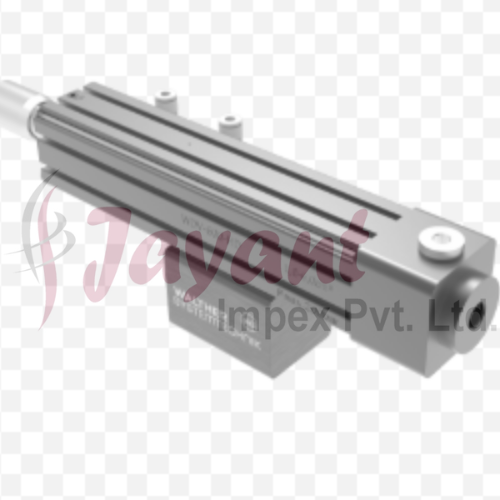

Chamber Dispensing Valve

Product Description

1.The Filling Phase (Loading):Chamber Intake.

The fluid enters the valve housing under low pressure. An internal piston, spool, or diaphragm retracts, drawing fluid into a precision-machined metering chamber. Air pressure or a mechanical stop determines exactly how far back the piston moves, defining the fixed shot volume.

2.The Dispensing Phase (Discharge):Material Delivery.

An inlet seal closes to prevent material from backing up into the supply line. Concurrently, the outlet nozzle path opens, and the piston moves forward, mechanically forcing the exact volume of fluid trapped in the chamber out through the nozzle.

Internal Architecture & Mechanics

Industrial systems use various mechanical designs to actuate the chamber, depending on the fluid's properties. For high-speed or micro-dot requirements, piezo-driven actuators are often utilized to rapidly cycle the internal needle and piston assembly.

• Piezostack & Piston: Rapidly flexes to drive the piston down with massive force and speed.

• Dispensing Chamber: The central cavity where the precise fluid volume is isolated and pressurized.

• Ball-Needle & Seat: Seals the bottom of the chamber to prevent drooling, snapping clean when fluid is discharged through the nozzle.

Core Advantages

• True Volumetric Accuracy: Because the shot size is physically determined by the chamber's dimensions rather than timing, it guarantees shot-to-shot consistency (often down to variations of less than 1%).

• Viscosity Independence: If a fluid thins out as the factory floor warms up during the day, a time-pressure valve will accidentally dispense too much. A chamber valve still dispenses the exact same volume.

• Zero Drooling or Stringing: Most chamber valves feature a "snuff-back" or suck-back mechanism. When the piston retracts for the next cycle, it creates a slight vacuum that pulls material back into the nozzle, ensuring a clean break.
