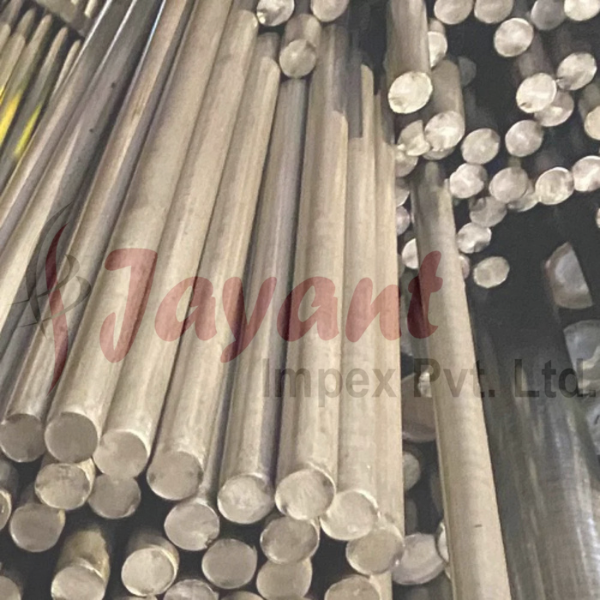

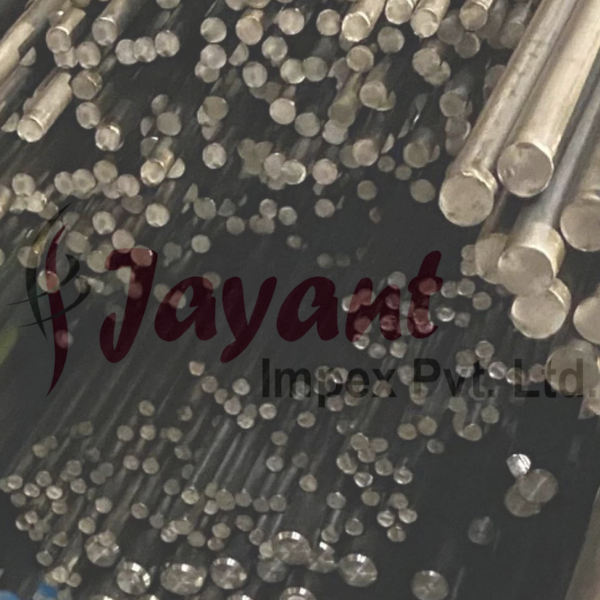

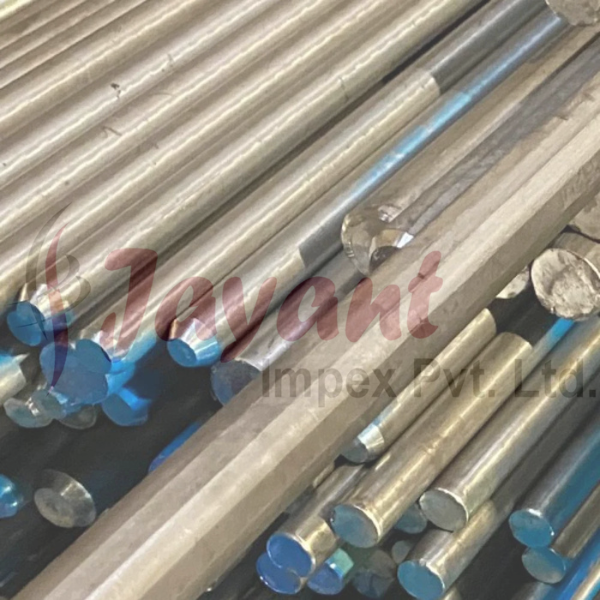

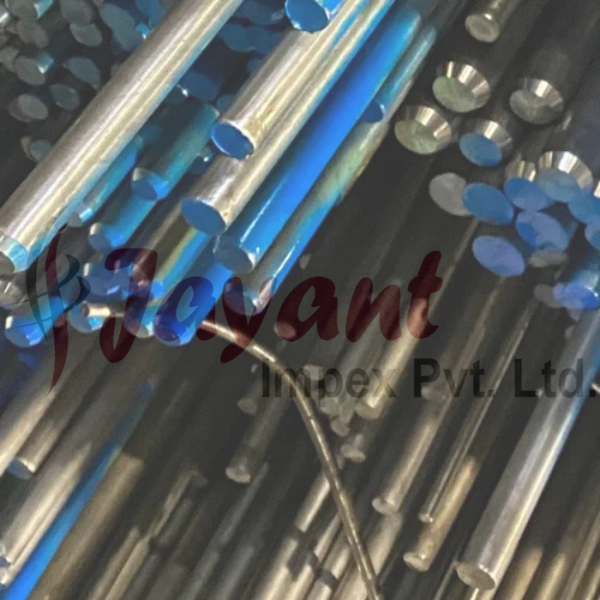

ASTM A182 F57, ASTM A959 (2004), A276, A312, A632, A176, A580 F57 Round Bar, Rod, Bars

Product Description

1. Grade F57 Core Standards

ASTM A182 Grade F57

This is the primary specification for this material when used in high-pressure or high-temperature systems.

• Scope: Covers forged or rolled alloy and stainless steel pipe flanges, forged fittings, valves, and parts.

• F57 Significance: Under A182, F57 explicitly dictates the chemical and mechanical rules for UNS S39277 Super Duplex. Sourcing an "A182 F57 Bar" means the bar has been processed with the heavy hot-forging reduction ratios required for pressure-vessel component integrity.

ASTM A959 (2004)

• Scope: Standard Guide for Specifying Harmonized Standard Grade Compositions for Wrought Stainless Steels.

• Significance: This guide acts as the master cross-reference matrix used by ASTM committees to harmonize chemical composition limits across different product forms (bars, plates, tubes) for specific alloys like UNS S39277.

2. Product Form Standards for Bars & Rods

When F57 / UNS S39277 is pulled, rolled, or forged into long bar shapes, it must comply with standard structural shapes specifications:

ASTM A276

• Scope: Standard Specification for Stainless Steel Bars and Shapes.

• Significance: This is the universal standard for ordering stainless steel round bars, rods, hexagons, and squares. It defines the allowable dimensional tolerances, surface finish options (peeled, turned, or cold-drawn), and structural testing profiles.

ASTM A580

• Scope: Standard Specification for Stainless Steel Wire.

• Significance: This standard governs smaller diameter rods and coils (typically under 0.5 inches or 12.7 mm). If you are sourcing thin diameter F57 wire rod for redrawing, cold heading, or fasteners, A580 sets the tensile and ductility parameters.

3. Related Product Forms (Pipes & Tubes)

The other standards in your list govern how this identical chemistry is deployed in fluid-handling and legacy product forms:

• ASTM A312: The standard specification for seamless, straight-seam welded, and heavily cold-worked austenitic and duplex stainless steel pipes. F57 pipe under this specification is used for aggressive offshore oil/gas lines and chemical transport.

• ASTM A632: Governs seamless and welded austenitic stainless steel tubing for general corrosive or sub-zero service, specifically focusing on small-diameter and thin-wall configurations (instrumentation tubing).

• ASTM A176: A legacy, archived ASTM standard that historically covered chromium stainless steel plate, sheet, and strip. (Modern specifications typically defer to ASTM A240 for duplex and super duplex flat-rolled sheets).

4. Typical Material Profile: F57 Round Bar

When a bar is certified to ASTM A182 F57 / A276, it brings the following mechanical thresholds to critical industrial builds:

Primary Applications

• Subsea Wellhead Components: High-stress valve shafts, chokes, and marine bolting.

• Desalination Systems: High-pressure pump shafts and rotating rods exposed to continuous hot brine.

• Downhole Tools: Specialized drilling mandrels and slickline tools operating in sour ($H_2S$) gas environments.
