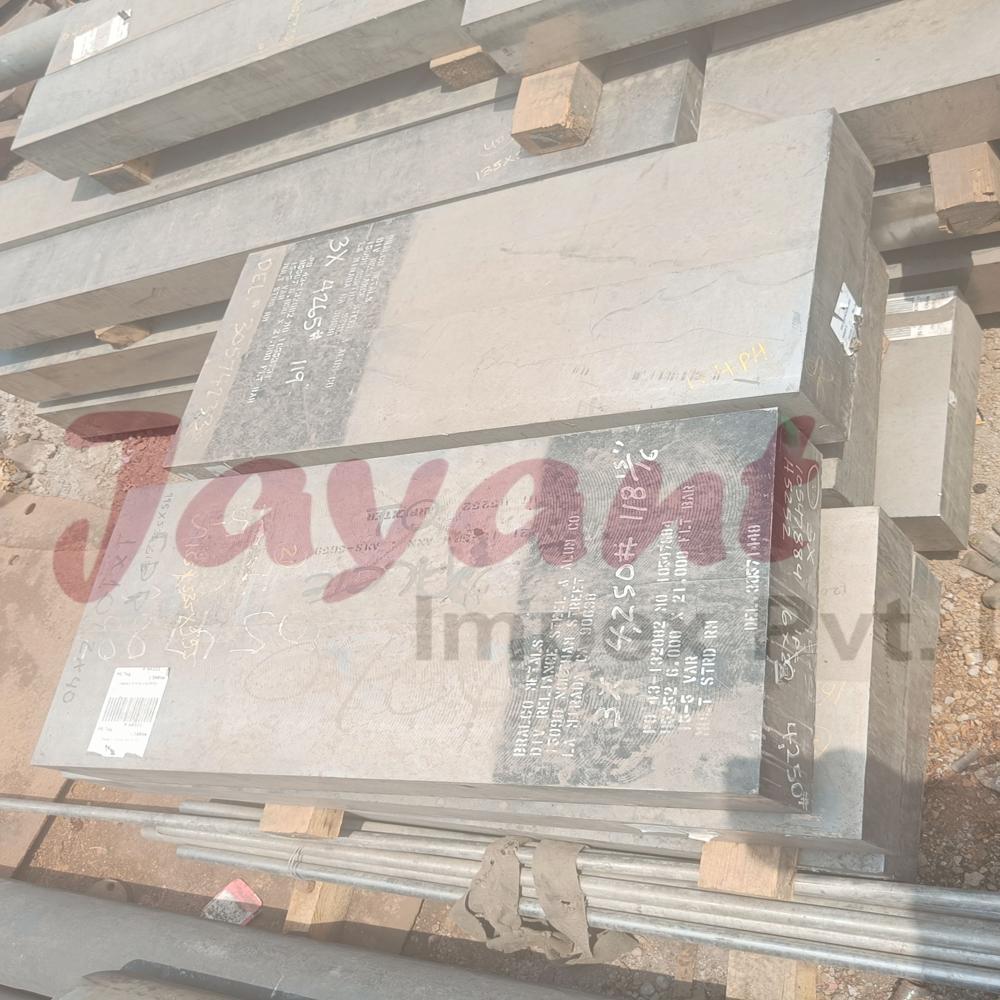

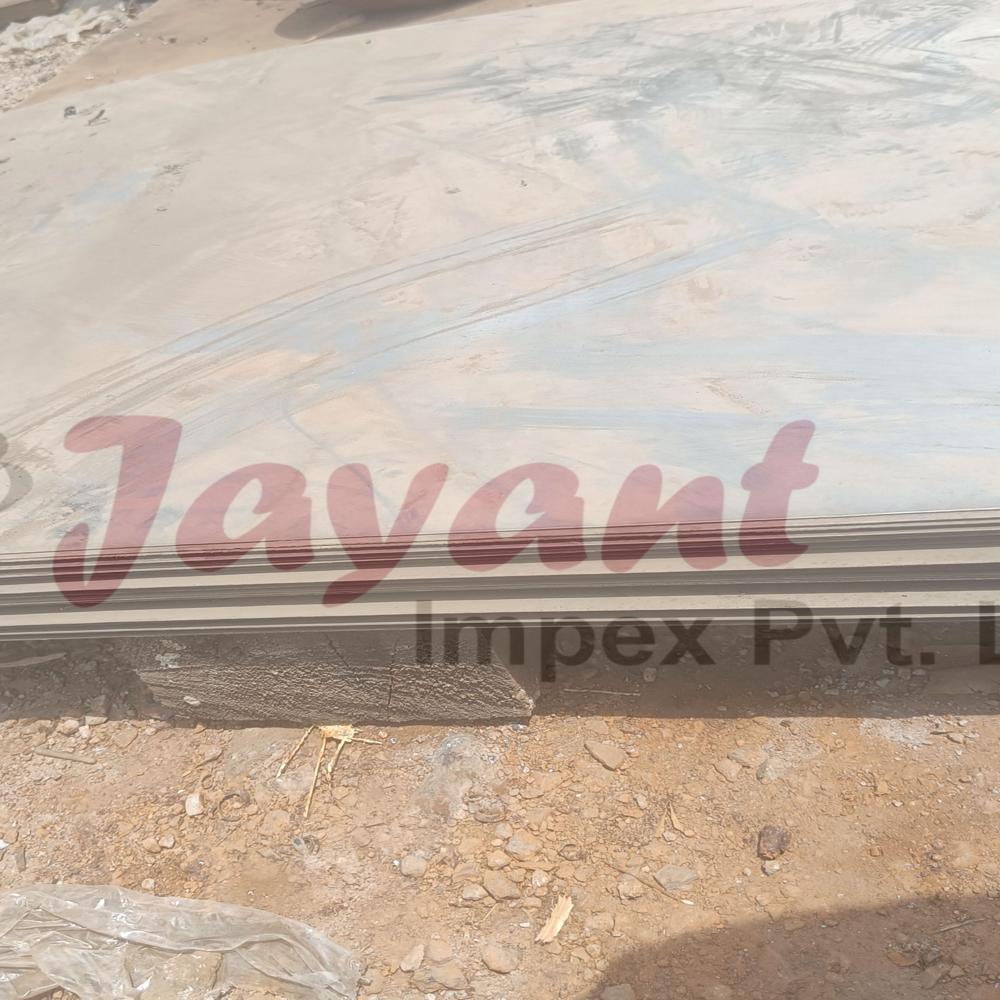

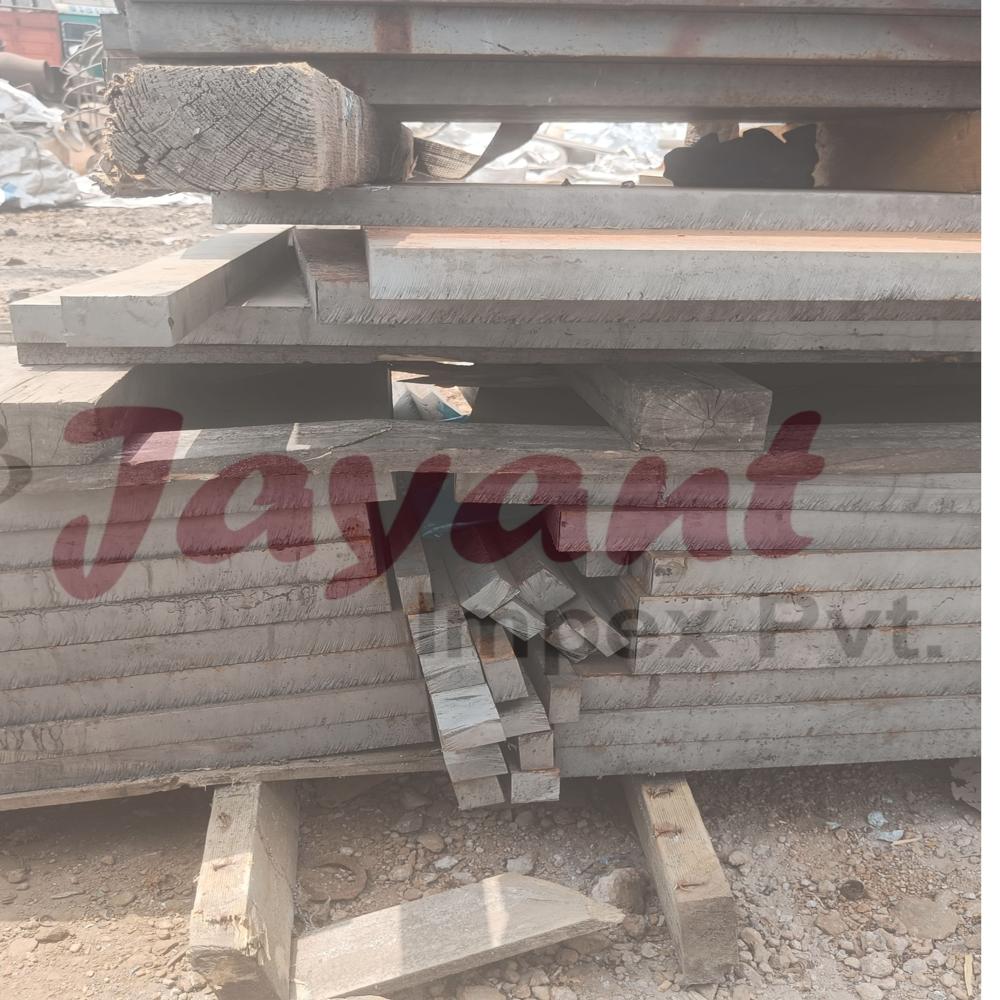

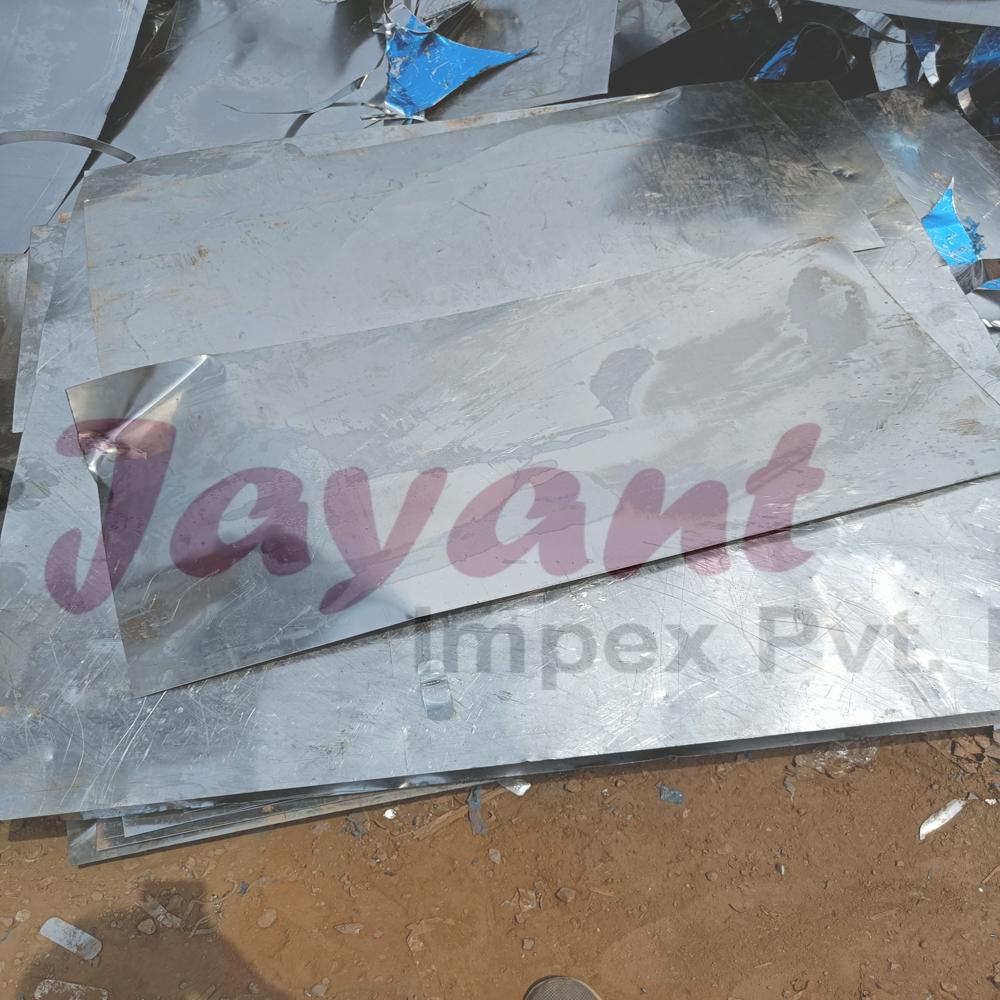

Aluminium ENAW-AlMg3 Plates & Sheets (EU EN, DIN, WNR AlMg3)

Aluminium ENAW-AlMg3 Plates & Sheets (EU EN, DIN, WNR AlMg3)

380.0 INR/Piece

Get a Price/Quote

Product Details:

Size Custom Cut As per Requirement
Coating Type Optional: PVC protective film
Material Composition % Al 95-97%, Mg 2.6-3.6%, Mn <0.5%, Others trace
Hardness 60-80 HB
Product Form Plate & Sheet
Recyclable 100% Recyclable
Diameter N/A (Flat Product)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Aluminium ENAW-AlMg3 Plates & Sheets (EU EN, DIN, WNR AlMg3) Price And Quantity

Price 380.0 INR/Piece
Minimum Order Quantity 1000 Piece

Aluminium ENAW-AlMg3 Plates & Sheets (EU EN, DIN, WNR AlMg3) Product Specifications

Product Form Plate & Sheet
Color Silver/Metallic
Recyclable 100% Recyclable
Application Construction, Mechanical Engineering, Shipbuilding, Marine Applications, Structural Components, Transport, Architecture, General Fabrication
Material Grade EN AW-5754 / AlMg3
Diameter N/A (Flat Product)
Tensile Strength 190-270 MPa
Heat Resistance Yes
Surface Mill Finish, Smooth, Available with PVC coating
Steel Standard EN 485-2, DIN 1725.1 / EN 573-3
Shape Flat Plate/Sheet
Corrosion Resistant Excellent, especially in marine and industrial environments
Grade ENAW-AlMg3 (EN 5754, DIN 3.3535, WNR 3.3535)
Usage Fabrication, Automotive, Marine, Construction, Equipment Manufacturing
Thickness 0.5 mm to 100 mm
Size Custom Cut As per Requirement
Dimension (L*W*H) Customized, Typically up to 2500mm x 6000mm
Steel Product Type Plates & Sheets
Coating Type Optional: PVC protective film
Material Composition % Al 95-97%, Mg 2.6-3.6%, Mn <0.5%, Others trace
Composition Al-Mg (Aluminium with around 3% Magnesium)
Weight Depends on size and thickness, Calculated as per standard density (2.66-2.69 g/cm3)
Product Name Aluminium ENAW-AlMg3 Plates & Sheets
Hardness 60-80 HB
Steel Type Not Steel, Aluminium Alloy (ENAW-AlMg3)
Finish Type Mill, Brushed, or Custom Finish

Surface Protection Can be supplied with interleaved paper or PE/PVC foil
Thermal Conductivity 130-160 W/m.K
Density 2.66-2.69 g/cm3
Magnetic Properties Non-magnetic
Electrical Conductivity Approx. 30-34% IACS
Yield Strength 80-220 MPa (Depending on temper)
Standard Tolerance EN 485 tolerance or as specified
Weldability Very Good (Suitable for TIG and MIG welding)
Elongation at Break 12-20% (Depending on temper)
Formability Excellent

Product Description

EN AW-5754 (AlMg3) is a medium-strength, non-heat-treatable alloy known for its excellent atmospheric corrosion resistance and high weldability. In European standards, "AlMg3" is the chemical designation, while 5754 is the numerical grade.

1. Key Designations and Equivalents

This alloy is a "workhorse" of the European manufacturing industry, often specified under several synonymous codes.

Standard	Designation	Material Number
EU EN	EN AW-5754	-
DIN (Germany)	AlMg3	3.3535
WNr	3.3535	-
ISO	AlMg3	-
AFNOR (France)	AG3	-

2. Typical Mechanical Properties

The properties of AlMg3 vary significantly based on the temper. For plates and sheets, the most common states are O (annealed) and H111 (lightly work-hardened).

Property	Annealed (O / H111)	Work-Hardened (e.g., H22/H24)
Tensile Strength ( $R_m$ )	190 240 MPa	240 280 MPa
Yield Strength ( $R_{p0.2}$ )	80 MPa (Min)	160 200 MPa
Elongation ( $A_{50mm}$ )	12 18%	5 9%
Hardness (HB)	55	70

3. Key Engineering Characteristics

Corrosion Resistance: Excellent. It is particularly resistant to seawater and industrial polluted atmospheres.
Weldability:Very High. It is easily welded using MIG or TIG methods and retains much of its strength in the weld zone.
Surface Finish: It is highly suitable for anodizing, making it a favorite for architectural facades and decorative trim.
Formability: Excellent cold-working properties. In the "O" temper, it can be easily bent, drawn, or spun into complex shapes without cracking.

4. Common Applications

Automotive: Internal structural panels, floor plates, and body components.
Marine: Small boat hulls, internal ship partitions, and marine hardware.
Architecture: Decorative facades, signage, and internal fittings.
Industrial: Welded pressure vessels, chemical processing equipment, and food-grade storage.
Flooring: Frequently used for tread plates (checker/quintet plates) due to its durability.

5. Fabrication Notes

Machinability: Fair. Like most 5000-series alloys, it can be "gummy." Use sharp tools and high speeds to avoid chip buildup.
Bending: It has a tight bending radius in the H111 condition, typically $1 times$ thickness, making it ideal for folded sheet metal parts.

Outstanding Corrosion Resistance and Versatility

ENAW-AlMg3 Plates & Sheets excel in environments where resistance to corrosion is crucial. Thanks to their aluminium-magnesium composition, they are especially well suited to marine, chemical, and industrial settings. Their versatility extends to a range of finishes and thickness options, ensuring they can be tailored for every specialized application.

Unmatched Formability and Process Capabilities

These plates and sheets are highly formable, making them a favorite for fabricators and manufacturers. Their very good weldability - compatible with both TIG and MIG welding - makes processing efficient and flexible. They can also be custom cut to any dimension within the available size range, ensuring minimal waste for your projects.

Comprehensive Quality and Standards Compliance

Manufactured according to EN 485-2, DIN 1725.1, and EN 573-3 standards, ENAW-AlMg3 Plates & Sheets guarantee consistent quality and reliability. Available with optional PVC surface protection, they arrive in optimal condition and meet demanding industry requirements in strength, hardness, and performance.

FAQ's of Aluminium ENAW-AlMg3 Plates & Sheets (EU EN, DIN, WNR AlMg3):

Q: How are Aluminium ENAW-AlMg3 Plates & Sheets typically used in industry?

A: These plates and sheets are commonly used in construction, shipbuilding, automotive, mechanical engineering, and general fabrication due to their excellent corrosion resistance, formability, and reliable mechanical properties.

Q: What benefits does the ENAW-AlMg3 alloy offer compared to other aluminium alloys?

A: ENAW-AlMg3 combines high corrosion resistance, especially in marine environments, with very good formability and weldability, making it a versatile material for a wide spectrum of demanding applications.

Q: When should I specify PVC or PE surface protection for these plates and sheets?

A: It's advisable to request PVC or PE/foil protection if your application requires a pristine surface finish, during storage, handling, or transport to prevent scratches and oxidation.

Q: Where can Aluminium ENAW-AlMg3 Plates & Sheets be supplied and fabricated?

A: They are available from reputable dealers, exporters, fabricators, manufacturers, and suppliers across India, offering both mill finish and custom finishes, with options for custom cutting as per project requirements.

Q: How are these aluminium plates and sheets processed or fabricated?

A: Thanks to their excellent formability and very good weldability, they can be easily cut, bent, formed, or welded using standard TIG or MIG welding methods, accommodating a wide variety of fabrication processes.

Q: What is the process for calculating the weight of a specific plate or sheet?

A: Weight is determined based on the standard aluminium density (2.66-2.69 g/cm3), multiplied by the plate's dimensions (length, width, and thickness). Precise calculation ensures accurate quotes and logistics.

Q: How does the ENAW-AlMg3 alloy perform in terms of recyclability?

A: Aluminium ENAW-AlMg3 is 100% recyclable without loss of properties, making it a sustainable choice for environmentally conscious projects and initiatives.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Steel Sheets And Plate' category

Aluminium UNI P-AlMg3.5 Plates - UNS A95154 Plates, Sheets Price : 395.0 INR/Unit Minimum Order Quantity : 1000 Steel Product Type : Other, Plate, Sheet Dimension (L*W*H) : Customizable as per requirement, Standard sizes available Steel Type : Other, Aluminium Alloy Weight : Varies depending on size and thickness Product Name : Other, Aluminium UNI PAlMg3.5 Plates UNS A95154 Plates, Sheets Color : Silver, Metallic Grey Application : Other, Aerospace, Shipbuilding, Automotive, Marine, Construction, Structural Components, Pressure Vessels Shape : Other, Rectangular, Square, Customized Steel Standard : Other, UNI, EN, ASTM B209, BS, JIS Grade : PAlMg3.5, UNS A95154 Thickness : 0.5 mm 150 mm Surface : Mill Finish, Bright, Smooth, Polished Coating Type : Uncoated or as specified Material Composition % : Aluminium 94.2%, Magnesium 3.44.4%, others balance Composition : Al 94.2%, Mg 3.44.4%, Mn 0.6%, Fe 0.5%, Si 0.4%, Cu 0.1%, Zn 0.2%, Ti 0.2% Size : Customizable length and width, standard widths up to 2500 mm, lengths up to 6000 mm Hardness : Brinell 7595 HB Finish Type : Plain, Polished, Brushed as specified Recyclable : Yes, 100% recyclable Material Grade : UNI PAlMg3.5, UNS A95154 Diameter : Not applicable for plates; for customized parts as per requirement Product Form : Plate, Sheet Usage : Structural, Fabrication, Engineering, Marine, Aerospace applications Corrosion Resistant : Yes, excellent corrosion resistance Heat Resistance : Yes Tensile Strength : 240330 MPa

Send Inquiry

2014 - AlCuSiMg Aluminium Plates & Sheets (DIN, WNR) Price : 505.0 INR/Piece Minimum Order Quantity : 1000 Steel Product Type : Other, Plates & Sheets Dimension (L*W*H) : Customizable; Standard widths and lengths available Steel Type : Other, Aluminium Alloy Weight : Varies as per size and thickness Product Name : Other, 2014 AlCuSiMg Aluminium Plates & Sheets Color : Silvery Application : Other, Aerospace, Automotive, Engineering, Transport, Defense, General Fabrication Shape : Other, Rectangular, Custom Cuts Available Steel Standard : Other, DIN, WNR (EN 573, EN 485, ASTM B209 equivalent) Grade : 2014 Thickness : 0.5 mm to 150 mm Surface : Mill Finish, Brushed, Polished Coating Type : Uncoated or Surface Treatment Available Material Composition % : Al 90.7%, Cu 4.4%, Si 0.8%, Mg 0.5%, Mn 0.6% Composition : Aluminium 90.7%, Copper 4.4%, Silicon 0.8%, Magnesium 0.5%, Manganese 0.6%, Fe, Zn, TiTraces Size : Standard and Custom Sizes Hardness : 120 HB (Brinell) Finish Type : Mill, Brushed, Polished Recyclable : Yes, 100% Material Grade : 2014 AlCuSiMg Diameter : N/A for sheets/plates Product Form : Plate, Sheet Usage : Machining Parts, Structural & Aircraft Components, HighStrength Applications Corrosion Resistant : ModerateRecommended with protective treatment Heat Resistance : Yes Tensile Strength : 440 MPa 483 MPa

Send Inquiry

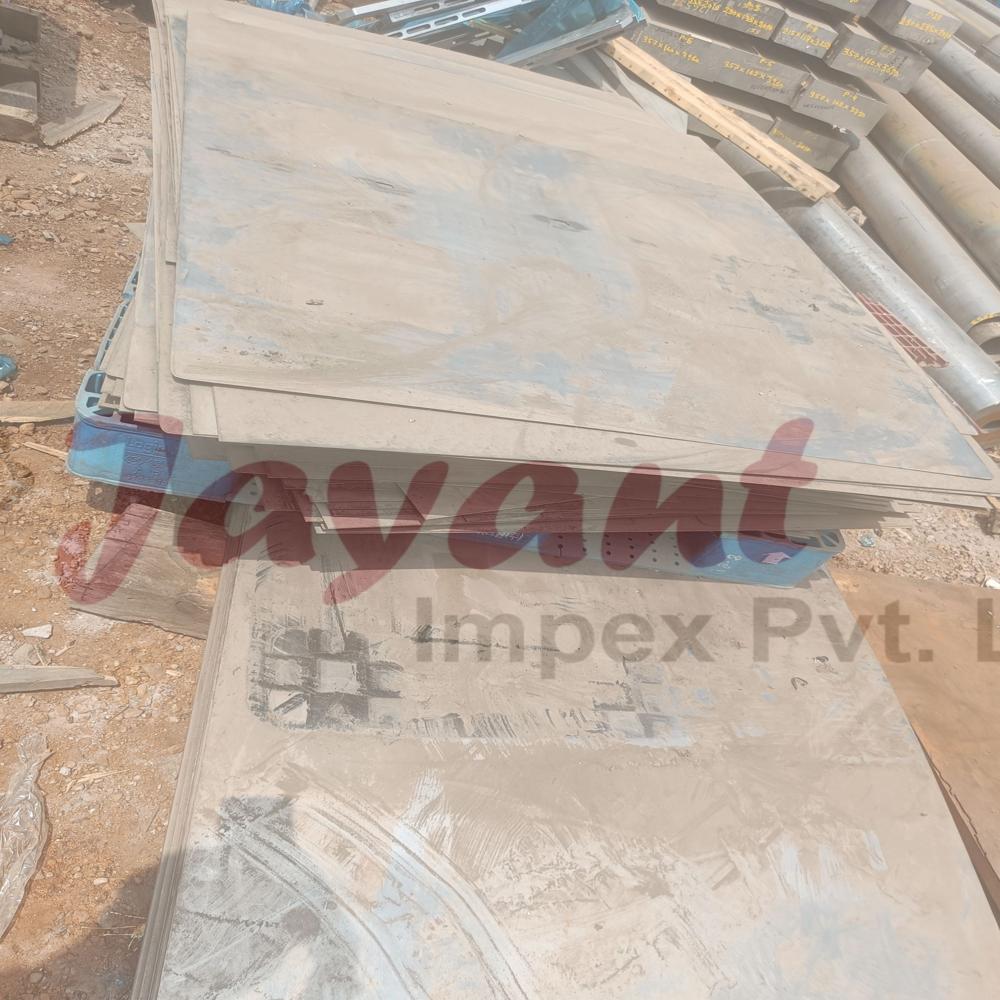

5754-AlMg3 Aluminium Plates, Sheet(SS, ONORM, PN, ISO AlMg3) Price : 385.0 INR/Unit Minimum Order Quantity : 1000 Steel Product Type : Other, Plate/Sheet Dimension (L*W*H) : Customizable, typical: 1000mm x 2000mm x (0.2mm 100mm) Steel Type : Other, Aluminium Alloy Weight : Depends on size and thickness, typically as per order Product Name : Other, 5754AlMg3 Aluminium Plates, Sheet Color : Silver Application : Other, Shipbuilding, vehicle bodies, rivets, marine, and pressure vessels Shape : Other, Rectangular, Sheet, Plate Steel Standard : Other, SS, ONORM, PN, ISO AlMg3 Grade : 5754 / AlMg3 Thickness : 0.2 mm 100 mm Surface : Mill finish or as required Coating Type : Uncoated, can be coated on request Material Composition % : Al: >92.6%, Mg: 2.63.6%, Cr: 0.3%, Mn: 0.5%, others (each <0.05%) Composition : AluminiumMagnesium Alloy Size : Custom sizes available Hardness : Brinell 60 HB Finish Type : Natural or polished Recyclable : Yes Material Grade : 5754 Diameter : N/A for sheet/plate Product Form : Sheet/Plate Usage : Construction, marine, automotive, equipment Corrosion Resistant : Excellent marine and industrial resistance Heat Resistance : Yes Tensile Strength : 190 330 MPa
