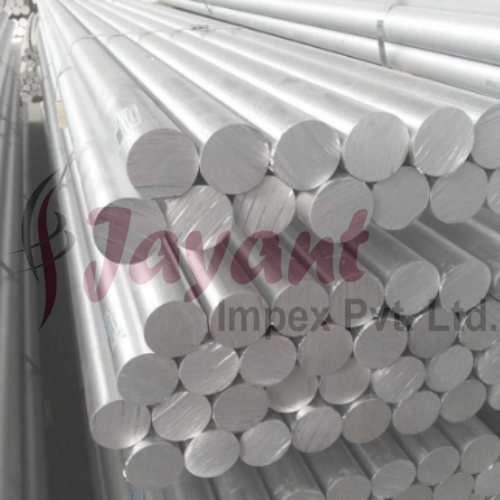

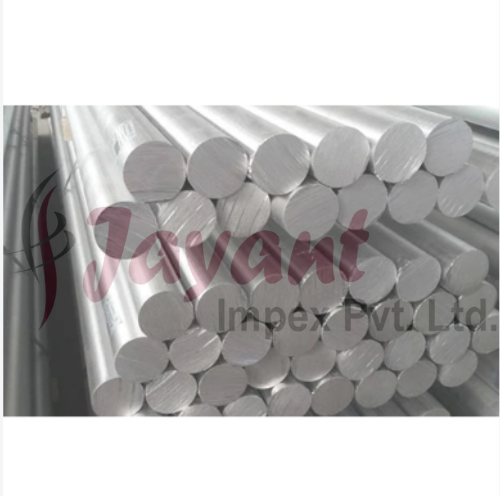

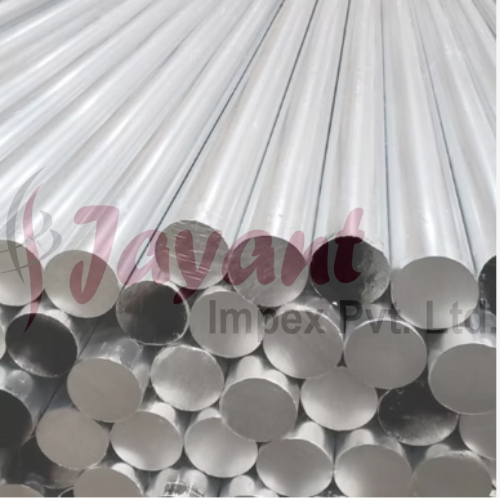

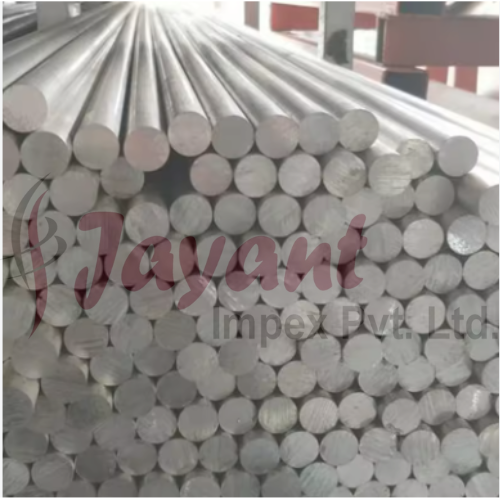

1.4594 Precipitation Hardening Steel Round Bar, 1.4594 Rods & 1.4594 Bars

Product Description

1. Dimensional Tolerances & Surface Finishes

Because 1.4594 is a premium alloy often destined for high-speed rotating shafts or safety-critical aerospace fasteners, the bar's dimensional precision matters immensely. The material is commonly specified in three delivery forms:

• Bright Bars (Cold Drawn / Centerless Ground): * Tolerances: Typically held to strict ISO h9, h10, or h11 classes.

  • Application: Ready for direct automatic feeding into CNC machining centers. The smooth, scale-free surface minimizes machine setup time and preserves tool edges.

• Peeled and Turned Bars: * Tolerances: Usually conforming to ISO k11, k12, or DIN 1013 limits.

  • Application: The rough outer hot-rolled layer is removed, leaving a bright but slightly coarser finish. Ideal if you plan to machine away the entire outer diameter anyway.

• Hot Rolled / Forged Black Bars: * Tolerances: Wider, non-precision manufacturing tolerances.

  • Application: Heavy industrial components or raw stock intended for downstream open-die forging or severe shape alteration.

2. Hardness and Tensile Mapping by EN Condition

When buying 1.4594, the suffix appended to the number dictates the exact mechanical properties the mill must prove in their laboratory. Ensure your paperwork matches your structural needs:

3. Why 1.4594 Dominates in Pump and Compressor Shafts

Designers specifically choose 1.4594 round bars over basic martensitic options (like 1.4418 or 1.4122) for two main reasons:

1. Minimal Distortion During Hardening: Because the precipitation-hardening mechanism relies on sub-microscopic intermetallic aging rather than a violent thermal water/oil quench, the physical movement (volumetric change) of the bar during final heat treatment is incredibly small. You can rough-machine your shafts to near-final dimensions while the steel is soft (+A), age it to peak strength (+P1070), and perform only a light final grind to hit your final tolerances.

2. Fatigue Endurance: The addition of Molybdenum ($1.20 - 2.00\%$) and Copper ($1.20 - 2.00\%$) drastically reduces the material’s susceptibility to corrosion fatigue—a critical factor for pump rotors handling brackish or chemically aggressive process waters.

4. Quality Documentation for Procurement

When auditing your inbound material test certificates (MTRs) for 1.4594 round bars, cross-verify that the following data is legally documented:

• Compliance with EN 10204 3.1: (or 3.2 if third-party inspected), guaranteeing complete heat traceability from the melting furnace to the finished rod.

• Impact Testing (Charpy V-Notch): If ordered in the +P850 condition for low-temperature or marine environments, verify that the energy absorption meets the required Joules (typically min $40\text{ J}$ to $60\text{ J}$ at room temperature, depending on the exact sub-specification).
