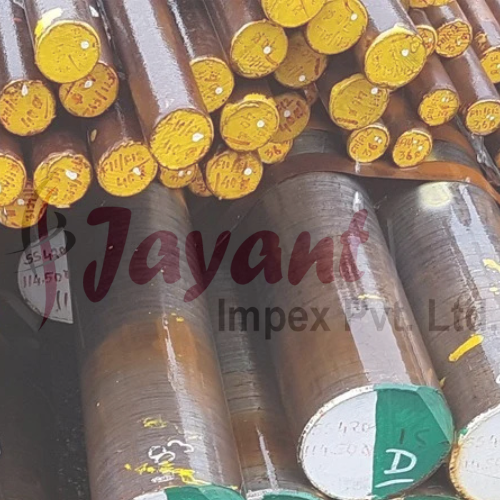

Stainless Steel 15-5PH UNS S15500, Ch 15N5D Round Bars

Product Description

It looks like the query for Stainless Steel 15-5PH / UNS S15500 / Ch 15N5D has come back around as well. Let’s bypass the introductory properties and focus purely on the deep-level production and metallurgical criteria that separate this premium alloy from 17-4PH: Consumable Electrode Remelting (VAR vs. ESR) and its impact on fracture toughness ($K_{1c}$).

Processing Cleanliness: VAR vs. ESR

The exceptional transverse (through-thickness) ductility of 15-5PH is directly tied to the melting practices dictated by aerospace and defense specifications like AMS 5659. Standard 17-4PH is typically air-melted, whereas 15-5PH requires specialized remelting techniques to eliminate microscopic inclusions and clean up the microstructure:

1. Vacuum Arc Remelting (VAR)

• The Process: An ingot acts as a consumable electrode inside a sealed vacuum chamber. An electric arc melts the tip of the electrode, allowing droplets of steel to fall into a water-cooled copper mold.

• Metallurgical Effect: The high vacuum environment pulls out dissolved volatile gases (such as hydrogen, oxygen, and nitrogen). It dramatically reduces macro-segregation of alloying elements and ensures a highly uniform distribution of the copper precipitates during aging.

2. Electro-Slag Remelting (ESR)

• The Process: The ingot is remelted through a chemically active, molten slag blanket (typically a blend of calcium fluoride, alumina, and lime) at atmospheric pressure.

• Metallurgical Effect: The slag acts as a chemical filter, washing away non-metallic inclusions—specifically sulfur stringers. This drops the sulfur content to ultra-low levels (frequently under $0.005\%$), effectively eliminating the directional weak points that cause directional tearing under multi-axis loads.

Plane-Strain Fracture Toughness ($K_{1c}$)

Because of this melt cleanliness, 15-5PH round bars display superior Fracture Toughness ($K_{1c}$) compared to standard 17-4PH, making it much safer for fracture-critical aerospace components where a catastrophic, unannounced brittle failure cannot be tolerated.

The plane-strain fracture toughness varies significantly by aged condition:

• Condition H900 (Peak Hardness): $K_{1c} \approx 77\text{ to }88\text{ MPa}\cdot\sqrt{\text{m}}$ ($70\text{--}80\text{ ksi}\cdot\sqrt{\text{in}}$). While high for a martensitic steel at this strength level ($1310\text{ MPa}$ tensile), it is at its most crack-sensitive state.

• Condition H1050 (Balanced): $K_{1c} \approx 110\text{ to }132\text{ MPa}\cdot\sqrt{\text{m}}$ ($100\text{--}120\text{ ksi}\cdot\sqrt{\text{in}}$). This represents the sweet spot for structural aircraft parts, offering high yield strength with outstanding resistance to unstable crack growth.

• Condition H1150 (Overaged): $K_{1c} > 165\text{ MPa}\cdot\sqrt{\text{m}}$ ($150+\text{ ksi}\cdot\sqrt{\text{in}}$). The matrix behaves with exceptional ductility, heavily suppressing sub-critical crack growth.

Transverse vs. Longitudinal Directional Performance

When machining complex geometries from large-diameter round bars, the core of the bar experiences high three-dimensional stresses. The table below illustrates how 15-5PH maintains uniform properties across different axes compared to the directional drop-off seen in standard 17-4PH:
