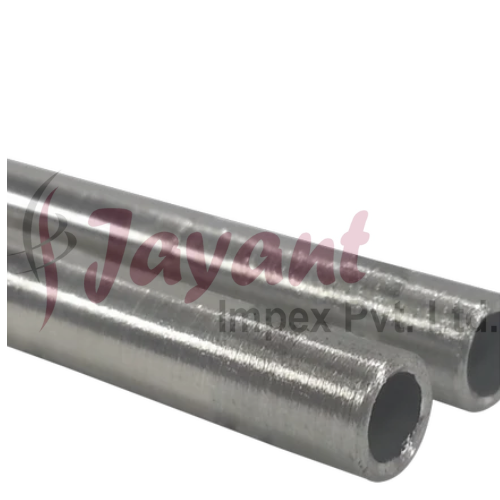

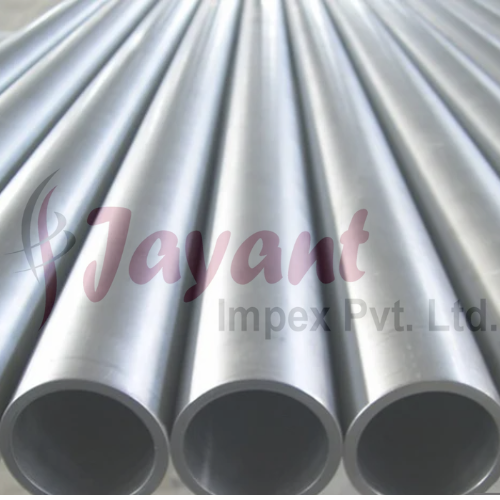

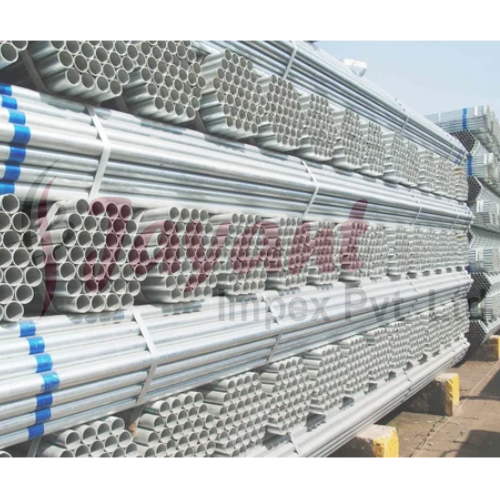

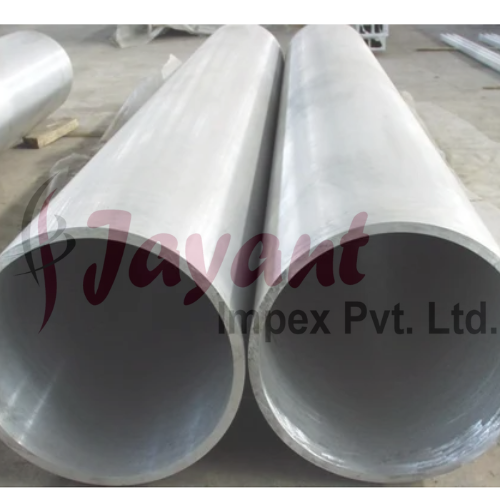

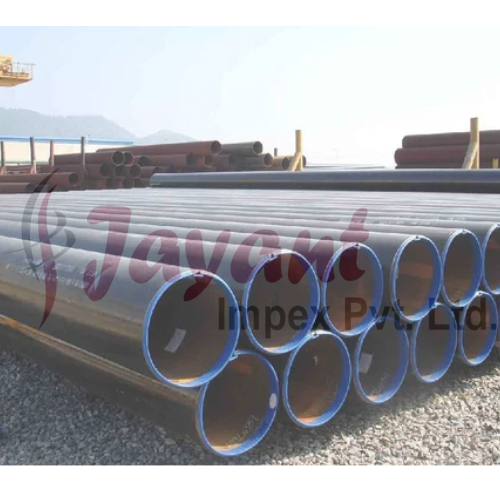

Seamless, Welded Super Duplex Stainless Steel 2507 Pipes

Seamless, Welded Super Duplex Stainless Steel 2507 Pipes Price And Quantity

• Minimum Order Quantity 1 Kilograms
• Price 516.0 INR/Kilograms

Seamless, Welded Super Duplex Stainless Steel 2507 Pipes Product Specifications

• Color Metallic Silver
• Rated Pressure Up to 6000 psi (varies by size/thickness)
• Standard ASTM A790, ASTM A928, ASME SA790, ASME SA928
• Thread Type NPT, BSP (for threaded types)
• Coating Type Uncoated/Request Based
• Flexibility Semi-Rigid
• Section Shape Circular
• Application Corrosive Environments, Structural, Piping
• Material Super Duplex Stainless Steel
• Temperature Range -50C to +300C (as per grade)
• Connection Type Welded, Threaded, Flanged
• Sealing Type Metal-to-Metal Seal or Gasket (per connection type)
• Shape Round
• Product Type Seamless, Welded Pipe
• Material Grade UNS S32750 / S32760 (2507)
• Connection Plain End, Beveled End, Threaded
• Diameter 6 mm to 630 mm
• Outer Diameter 6 mm to 630 mm
• Bend Radius Minimum 2.5 x OD (recommendation)
• Yield Strength 550 MPa
• Thickness 3 mm to 30 mm (customizable)
• Tensile Strength 800 MPa
• Surface Treatment Polished, Pickled, Annealed
• Tolerance 0.5% or as per standard/as required
• Length 6 m, 12 m, or custom length
• Usage Industrial, Marine, Chemical Processing, Oil & Gas

• Marking Standard marking on pipe body as per order specification
• Elongation 15% (in 50 mm)
• Testing Hydrostatic, Ultrasonic, Eddy Current as required
• Heat Treatment Solution Annealed at 1130C minimum
• Impact Strength Minimum 27 J at -46C
• Hardness 32 HRC
• Magnetic Permeability <1.02 (at 800 H) in annealed condition
• Density 7.8 g/cm3
• Corrosion Resistance Excellent (suitable for Highly Corrosive Environments)
• Manufacturing Process Hot Finished / Cold Drawn
