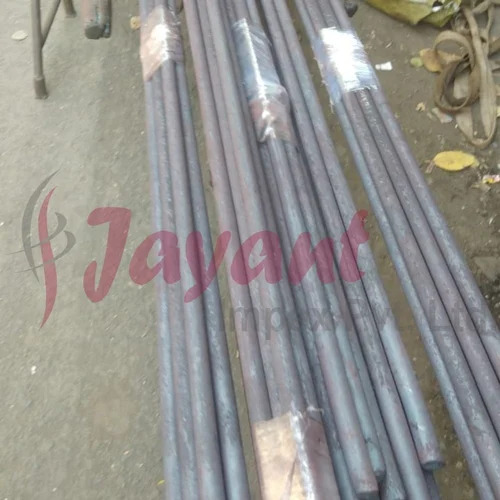

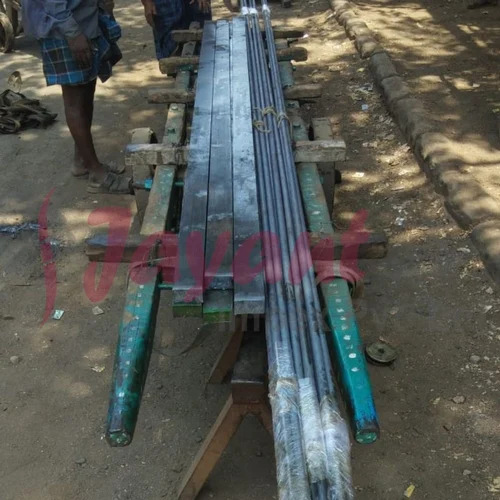

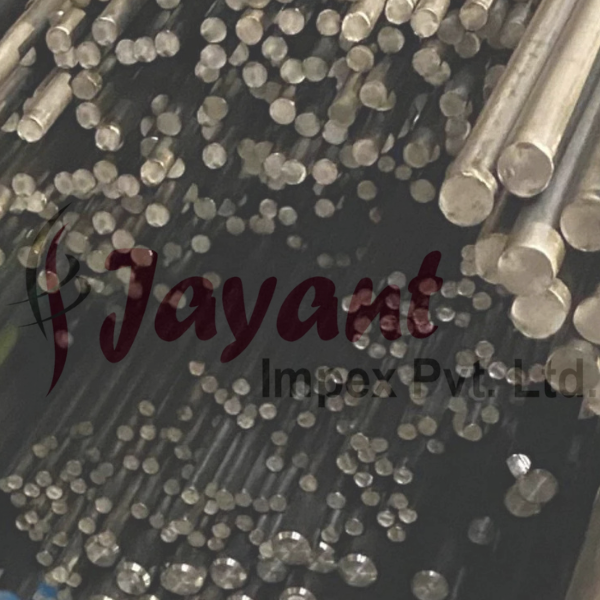

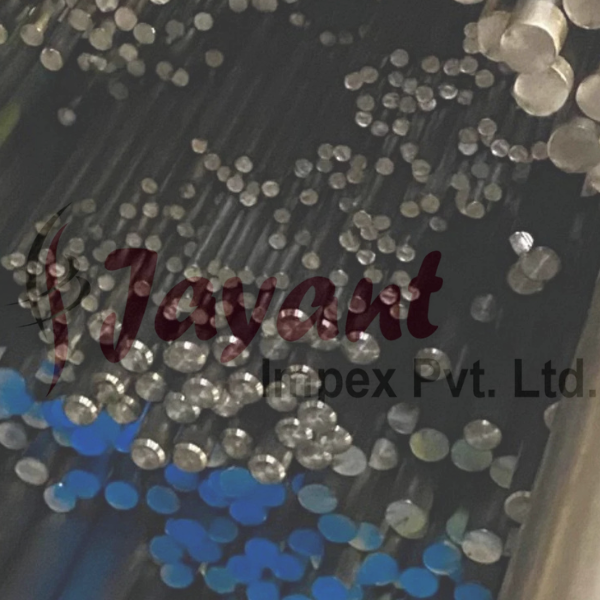

P900 Cr-Mn-N Steel Round Bar

Product Description

P900 is the proprietary commercial designation (often associated with manufacturers like Böhler or Energietechnik Essen) for the high-nitrogen austenitic steel officially classified as Material Number 1.3816 (X8CrMnN18-18).

It is considered one of the highest-performing "Retaining Ring" steels in the world, specifically engineered to provide an extraordinary combination of yield strength and resistance to stress corrosion cracking (SCC).

Chemical Composition & Specifications

P900 is often referred to as an "18/18" steel due to its balanced Chromium and Manganese content.

Why P900 is Unique

1. Ultra-High Nitrogen Content: While the other Cr-Mn steels you mentioned (like 1.3815 or 1.3817) have nitrogen levels around 0.10–0.40%, P900 uses pressure electroslag remelting (PESR) to force up to 0.90% nitrogen into the lattice. This acts as a massive strengthening agent without sacrificing ductility.

2. Superior Corrosion Resistance: With nearly 19% Chromium, P900 offers significantly better corrosion protection than 1.3815 or 1.3817. It was specifically developed to solve the "pitting" and stress corrosion issues that plagued earlier generator ring alloys.

3. Non-Magnetic Stability: It is 100% austenitic and remains strictly non-magnetic even after heavy cold-forming or exposure to cryogenic temperatures.

Mechanical Performance

P900 round bars are typically supplied in a cold-stretched or cold-expanded condition to meet specific strength classes:

• Yield Strength ($R_{p0.2}$): Can reach over 1200 MPa.

• Tensile Strength ($R_m$): Often ranges from 1300 to 1500 MPa.

• Fracture Toughness: Remains very high even at high strength levels, making it "fail-safe" for rotating machinery.

Typical Applications

• High-End Generator Retaining Rings: Its primary global application.

• Non-Magnetic Drill Collars: Used in oil/gas exploration where high strength and zero magnetic interference are required for directional drilling.

• Aerospace Components: High-strength, non-magnetic fasteners and structural parts.

• Fusion Research: Components for superconducting magnets.

Comparison with Previous Grades

Processing Recommendations

• Machining: Because P900 is designed to be incredibly tough and work-hardens instantly, it is difficult to machine. It requires slower speeds than 1.3815 and high-pressure coolant to manage heat.

• Surface Finish: Due to its chromium content, it takes a very high polish, which is essential for avoiding stress risers in high-speed rotating parts.
