P20, P20Ni,Plastic Mould Steel Bars Scrap P20, P20Ni,Plastic Mould Steel Bars Scrap P20, P20Ni,Plastic Mould Steel Bars Scrap P20, P20Ni,Plastic Mould Steel Bars Scrap P20, P20Ni,Plastic Mould Steel Bars Scrap

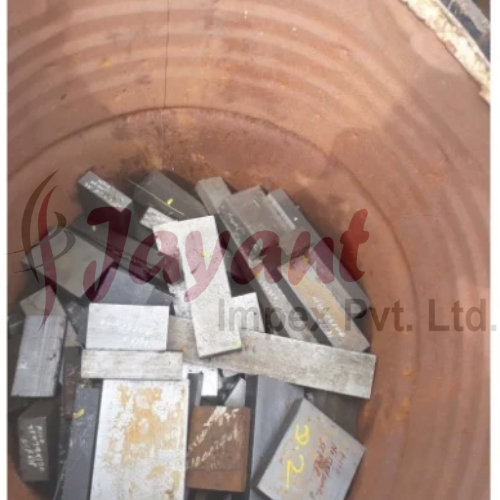

P20, P20Ni,Plastic Mould Steel Bars Scrap

65.0 INR/Kilograms
Get a Price/Quote

Product Details:

Request To Call Back Send Inquiry
X

P20, P20Ni,Plastic Mould Steel Bars Scrap Price And Quantity

  • 65.0 INR/Kilograms
  • 1 Kilograms

Product Description

DIN 1.2316 (X36CrMo17 / X38CrMo16) is a martensitic stainless tool steel specifically engineered for plastic mold applications where high corrosion resistance, high polishability, and uniform hardness across heavy cross-sections are required. Containing 15.00 to 17.50 percent chromium and 0.80 to 1.30 percent molybdenum, it offers superior resistance to corrosive plastics (such as PVC and recycled materials) compared to standard 1.2083 / AISI 420 steels. It is typically supplied in a pre-hardened condition (280 to 325 Brinell).

Material Classification and Cross Reference

Material Designation Alloy Family Primary Form Application Method Equivalent Standard
DIN 1.2316 Martensitic Stainless Tool Steel Hot Rolled Forged Round Bar Machining Precision EDM Polishing EN ISO 4957 X38CrMo16
DIN X36CrMo17 Martensitic Stainless Tool Steel Flat Bar Forged Block Deep Cavity Injection Moulding DIN 17350 Standard Grade
AISI 420F Modified High Chromium Stainless Tool Steel Turned Peeled Round Bar CNC Milling Slotting Turning ASTM A681 USA Grade
JIS SUS420J2 Modified High Chromium Stainless Tool Steel Precision Ground Flat Plate Mirror Finish Mould Tooling JIS G4303 Japanese Standard

Nominal Chemical Composition

Element Element Name Minimum Mass Fraction Maximum Mass Fraction Nominal Value
Fe Iron Balance Balance 79.40
Cr Chromium 15.50 17.50 16.50
Mo Molybdenum 0.80 1.30 1.05
C Carbon 0.33 0.45 0.38
Mn Manganese 0.00 1.00 0.60
Si Silicon 0.00 1.00 0.50
Ni Nickel 0.00 1.00 0.50
P Phosphorus 0.00 0.03 0.015
S Sulfur 0.00 0.03 0.015

Physical and Mechanical Properties

Property Value Range Metric Units Imperial Units
Density 7.70 Grams per Cubic Centimeter 0.278 Pounds per Cubic Inch
Hardness Pre Hardened 28 to 32 Rockwell C Rockwell C
Hardness Quenched and Tempered 48 to 52 Rockwell C Rockwell C
Tensile Strength Ultimate 950 to 1100 Megapascals 138000 to 160000 Pounds per Square Inch
Yield Strength 800 to 920 Megapascals 116000 to 133000 Pounds per Square Inch
Modulus of Elasticity 215 Gigapascals 31200000 Pounds per Square Inch
Thermal Conductivity at 20 Celsius 18 to 20 Watts per Meter Kelvin 125 to 138 BTU Inch per Hour Square Foot Fahrenheit
Thermal Expansion Coefficient 10.5 to 12.0 Micrometers per Meter Kelvin 5.83 to 6.67 Microinches per Inch Fahrenheit
Maximum Service Temperature 400 Celsius 752 Fahrenheit
