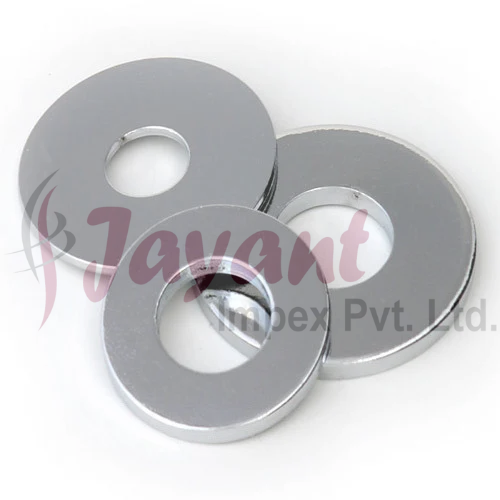

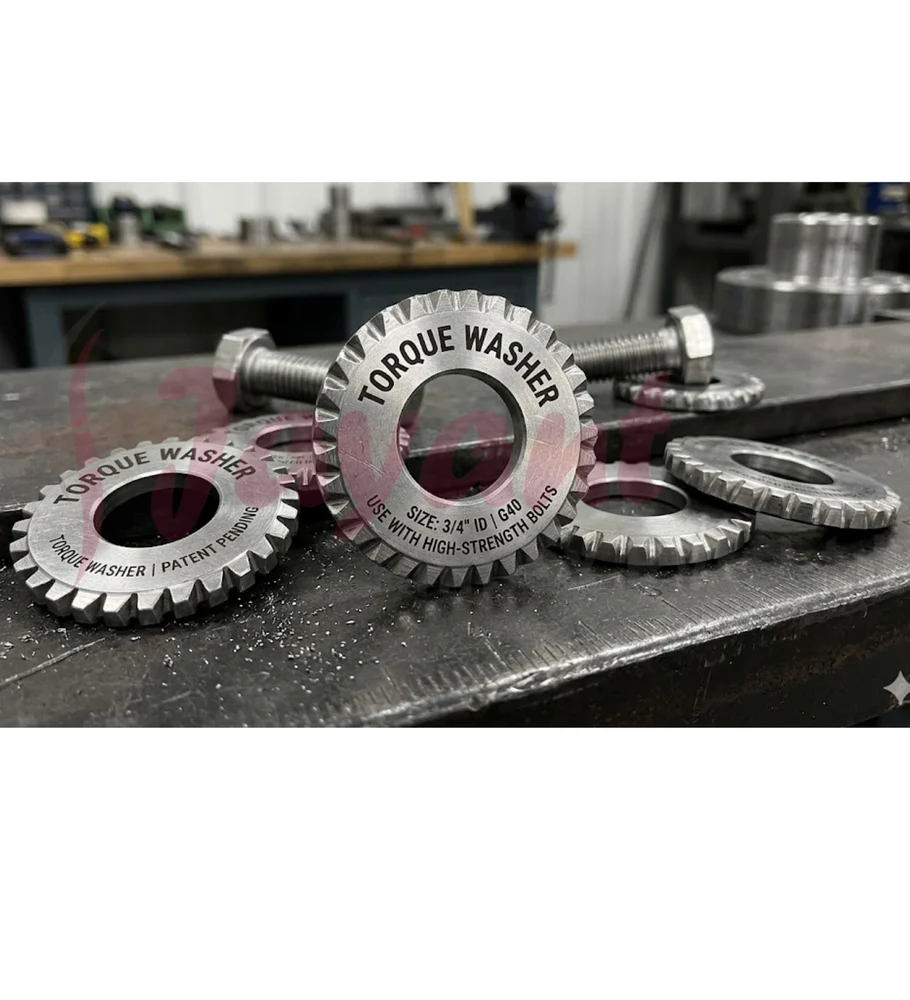

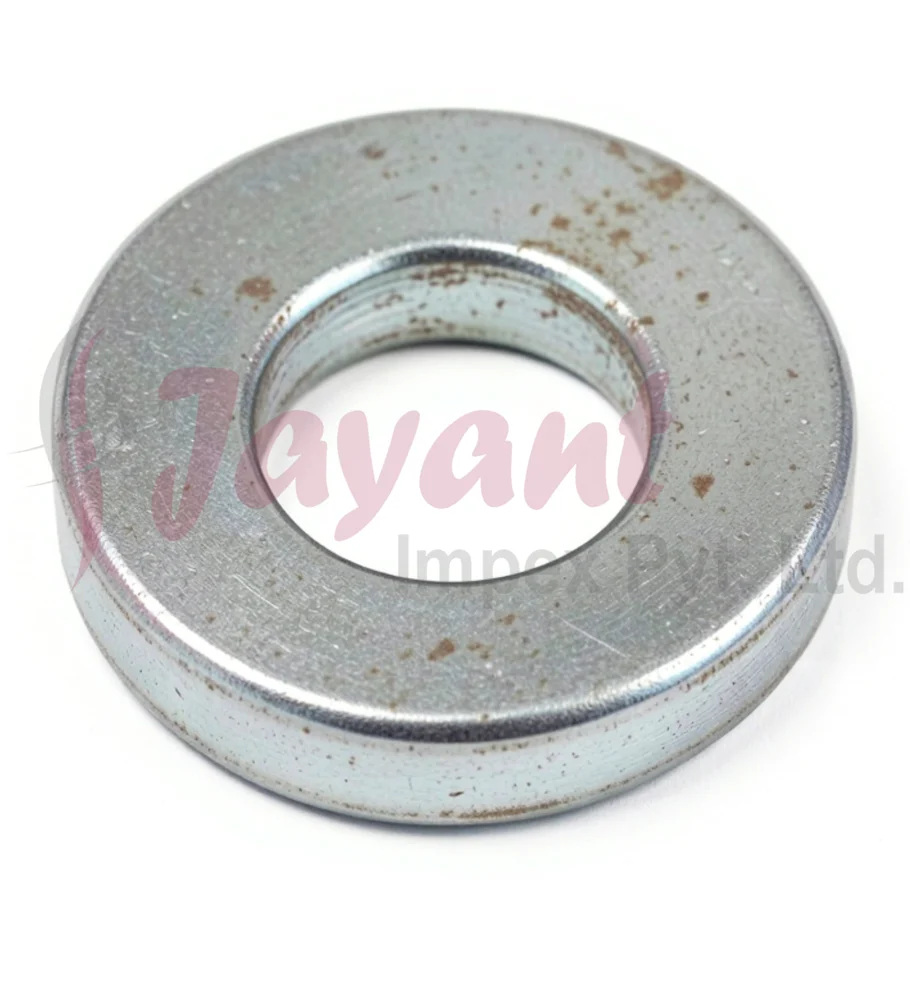

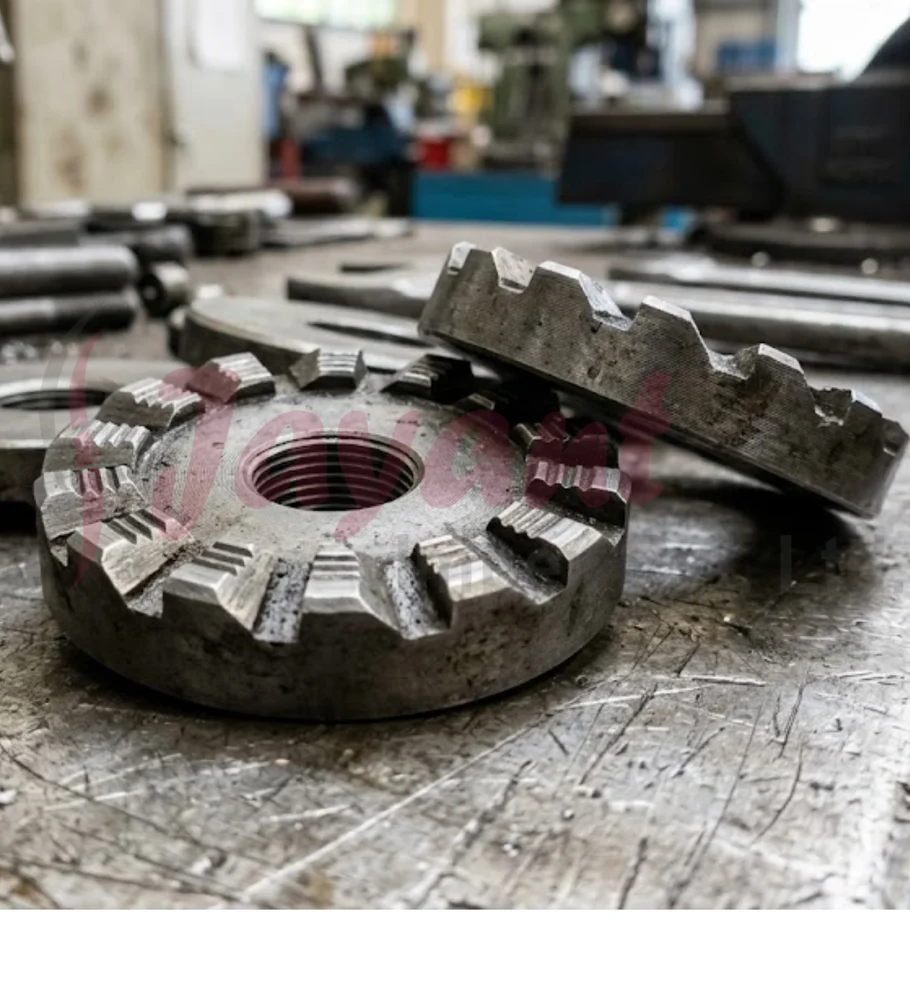

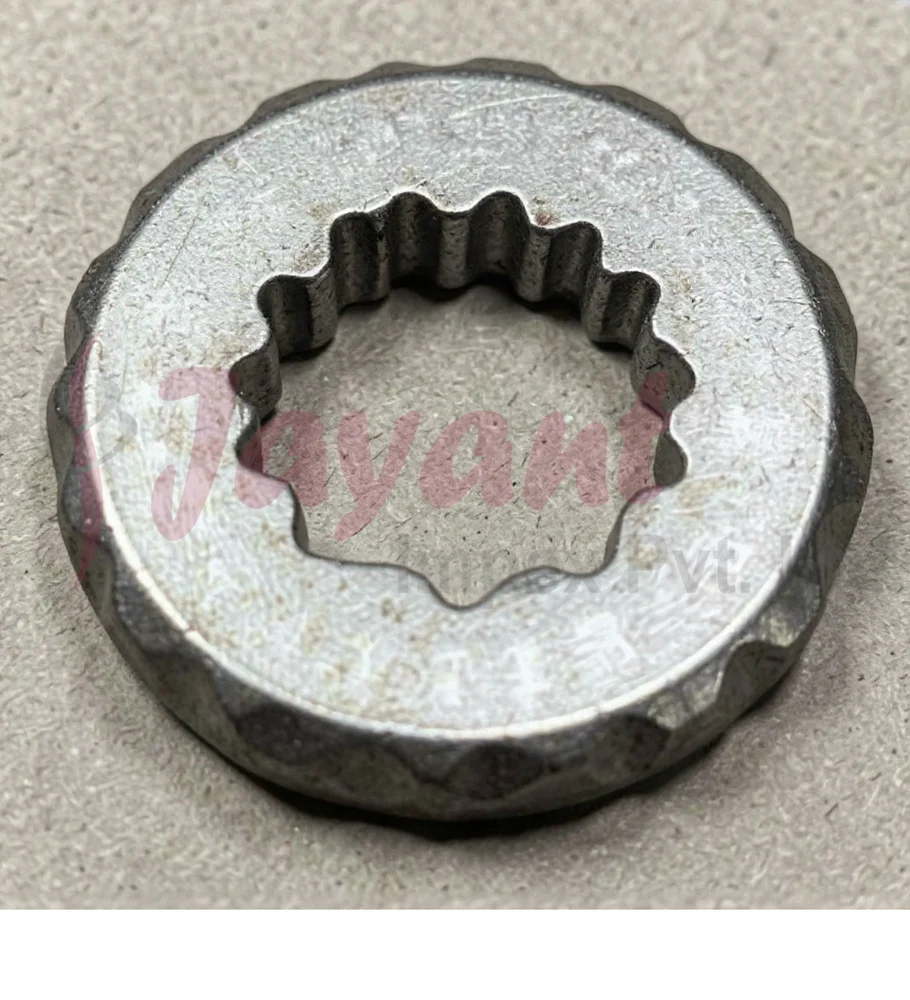

Industrial Torque Washers

Product Description

In industrial engineering, torque washers (often referred to as load-indicating washers or direct tension indicators - DTIs) are specialized fasteners designed to provide a visual or mechanical confirmation that a bolt has reached its required clamping force.

Unlike standard washers, which simply distribute load, torque washers act as a built-in "sensor" for the assembly.

1. Types of Torque/Load-Indicating Washers

A. Direct Tension Indicators (DTI)

These are the most common industrial torque washers, widely used in structural steel and bridge construction.

• Mechanism: The washer features several small protrusions (bumps) on one side. As the bolt is tightened, these protrusions are crushed.

• Verification: A "feeler gauge" is used to measure the remaining gap. Once the gap is reduced to a specified thickness, the bolt has reached its required tension, regardless of the torque applied to the nut.

• Standard: Typically governed by ASTM F959.

B. "Squirter" Washers

A variation of the DTI used for rapid visual inspection.

• Mechanism: The cavities under the protrusions are filled with a bright orange or red silicone.

• Verification: When the correct tension is reached and the bumps are crushed, the silicone "squirts" out. This allows a safety inspector to verify hundreds of bolts from a distance without needing a gauge or a torque wrench.

C. Square-Hole Torque Washers (Carriage Bolt Washers)

Common in timber construction and heavy-duty crating.

• Mechanism: Features a square center hole and aggressive teeth or "nibs" on the underside.

• Function: The teeth bite into the wood or soft metal, while the square hole locks onto the neck of a carriage bolt. This allows the bolt to be torqued from the nut side without the bolt head spinning.

2. Why Use Washers Instead of a Torque Wrench?

Industrial environments often present variables that make torque wrenches unreliable:

• Friction (The "K-Factor"): Rust, dirt, or improper lubrication on threads can cause a torque wrench to "click" early, even if the bolt is still loose.

• Accuracy: DTIs measure tension (the actual stretching of the bolt), which is the true goal of tightening, whereas a torque wrench only measures rotational resistance.

3. Material and Grade Specifications

Because these washers must crush at very specific, predictable loads, they are manufactured with high metallurgical precision.

• Materials: Usually heat-treated carbon steel or stainless steel for corrosive environments.

• Compatibility: They must be matched to the grade of the bolt. For example, an ASTM A325 bolt requires a different DTI than an ASTM A490 bolt because the higher-strength A490 requires significantly more force to crush the protrusions.

4. Technical Considerations for Selection

5. Common Industrial Applications

• Wind Turbines: Used in the assembly of tower sections where vibration is constant and tension must be guaranteed.

• Bridge Bolting: Ensures that the hundreds of bolts in a gusset plate are sharing the load equally.

• Mining & Heavy Machinery: Used in vibrating screens and crushers where self-loosening is a major safety risk.
