Expansion Bolt Industrial

Product Description

In industrial engineering, expansion bolts are the primary mechanical solution for anchoring structural components, heavy machinery, and safety systems into solid substrates like concrete, brick, or stone. Unlike standard bolts that rely on pre-tapped holes or nuts, expansion bolts generate their own "friction-lock" or "keying-lock" within the material.

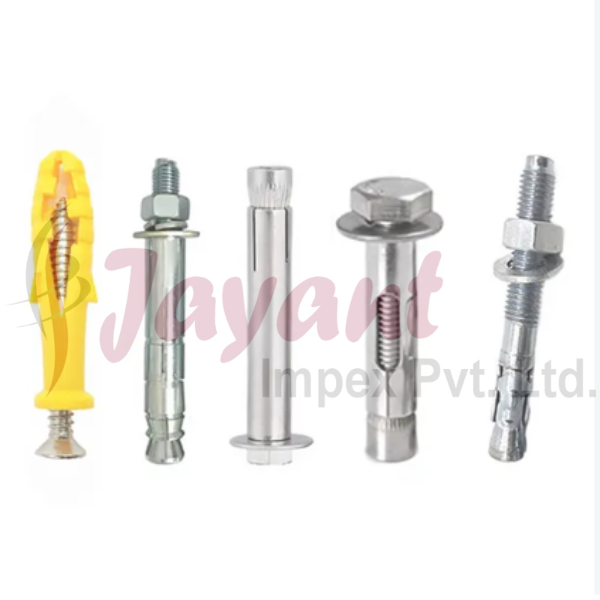

Core Industrial Varieties

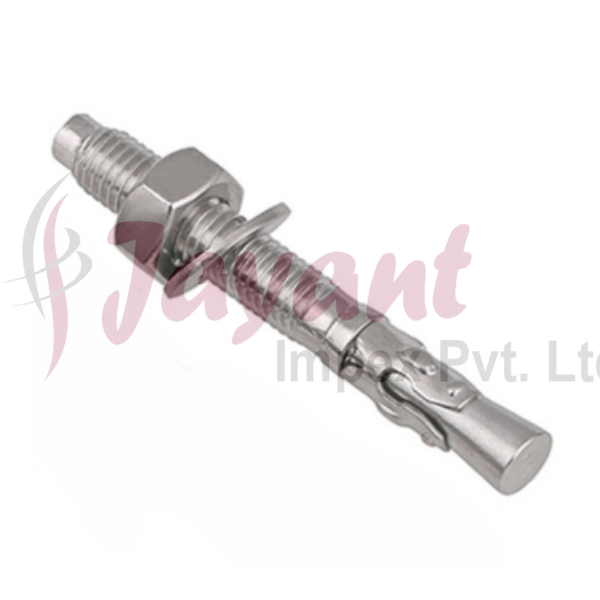

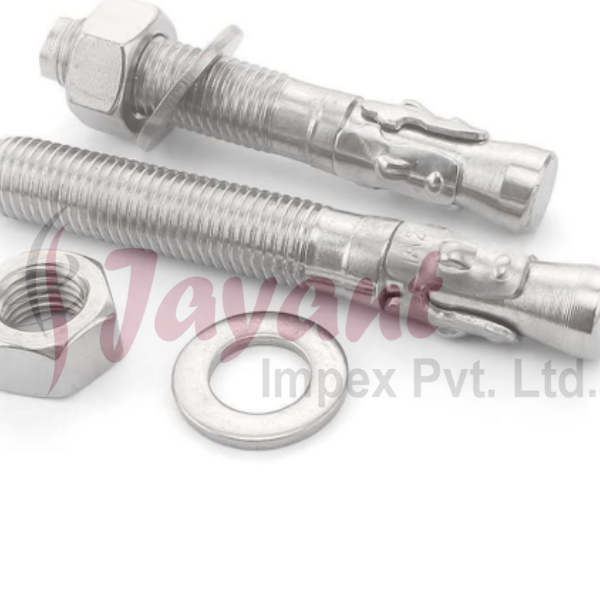

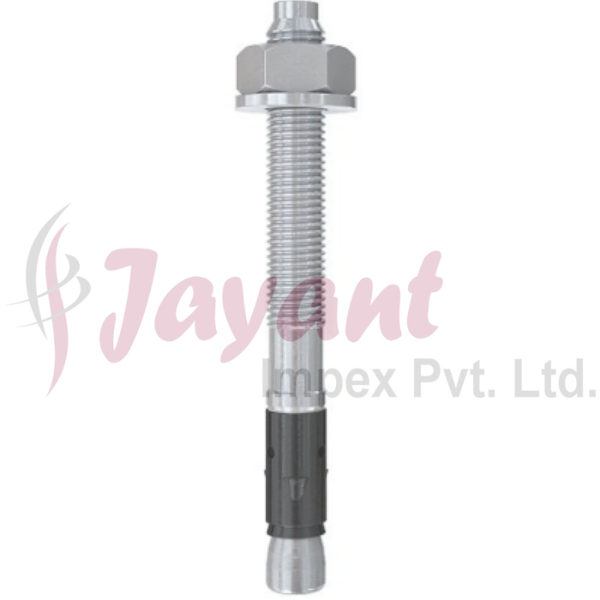

1. Wedge Anchors (Through-Bolts)

The most common heavy-duty expansion bolt for industrial flooring and structural steel.

• Mechanism: As the nut is tightened, the tapered end of the bolt is pulled upward, forcing a small expansion clip to flare out and "bite" into the concrete.

• Application: Securing warehouse racking, structural columns, and heavy manufacturing equipment to concrete slabs.

• Key Advantage: Allows for "push-through" installation, meaning you can drill the hole directly through the pre-aligned fixture.

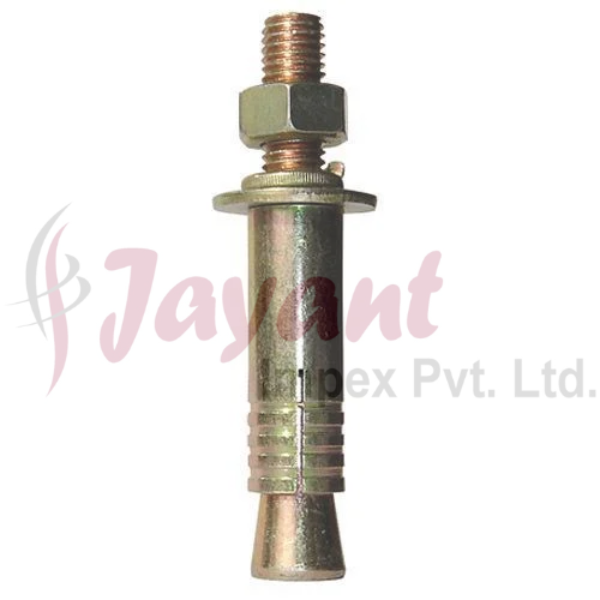

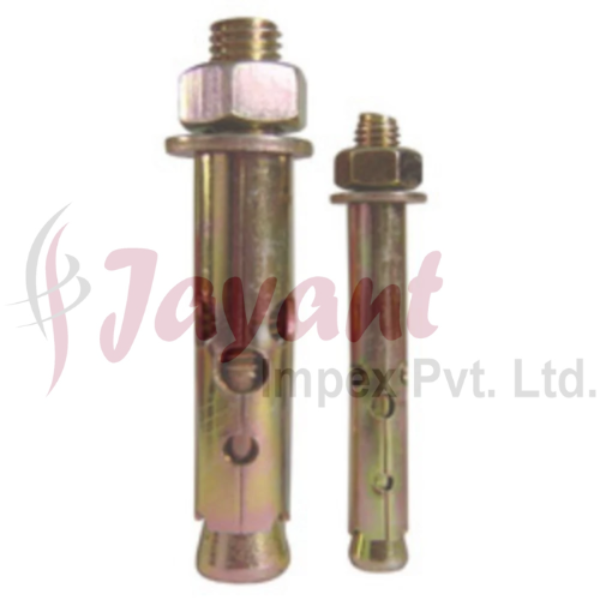

2. Sleeve Anchors

Versatile fasteners used when the base material might be slightly less consistent (such as brick or medium-density concrete).

• Mechanism: The bolt is surrounded by a split sleeve that expands along its entire length as the bolt is tightened.

• Application: Mounting electrical panels, HVAC units, and heavy conduit supports to masonry walls.

• Key Advantage: Provides a larger surface area of contact than a wedge anchor, which reduces the risk of the substrate cracking or crumbling.

3. Drop-In Anchors

Internal-thread expansion anchors that sit flush with the surface.

• Mechanism: After drilling, the anchor is inserted and a specialized "setting tool" is used to drive an internal plug downward, expanding the bottom of the anchor.

• Application: Overhead applications like suspending pipe hangers, cable trays, or fire sprinkler systems.

• Key Advantage: The bolt can be removed or replaced without removing the anchor itself, leaving the floor or ceiling flush.

4. Shield Anchors (Lag Shields)

Often used in older industrial facilities with masonry or stone walls.

• Mechanism: A two-part ribbed shield that expands when a lag screw is driven into it.

• Application: Fastening heavy gates, wall-mounted cranes, or exterior signage to brickwork.

Mechanical Ratings & Selection

Industrial expansion bolts are governed by strict codes (such as ETAG 001 or ACI 318) to ensure safety under load.

Material Selection for Harsh Environments

• Zinc-Plated Carbon Steel: Suitable for dry, indoor industrial environments.

• Hot-Dip Galvanized: Standard for outdoor infrastructure and coastal facilities.

• 316 Stainless Steel: Mandatory for chemical processing, wastewater treatment, and food-grade cleanrooms to prevent corrosion-related failure.

Common Failure Modes to Avoid

1. Pull-out Failure: The anchor is pulled out of the hole because the hole was too large or the expansion wasn't fully set.

2. Concrete Breakout: The bolt is stronger than the concrete, pulling a large cone of material out with it. This usually happens when anchors are spaced too closely together.

3. Shear Failure: The bolt snaps due to excessive lateral force.

4. Hole Cleaning: Failure to blow out dust from the hole is the #1 cause of expansion bolt failure in industrial settings, as the dust acts as a lubricant and prevents the clip from gripping.
