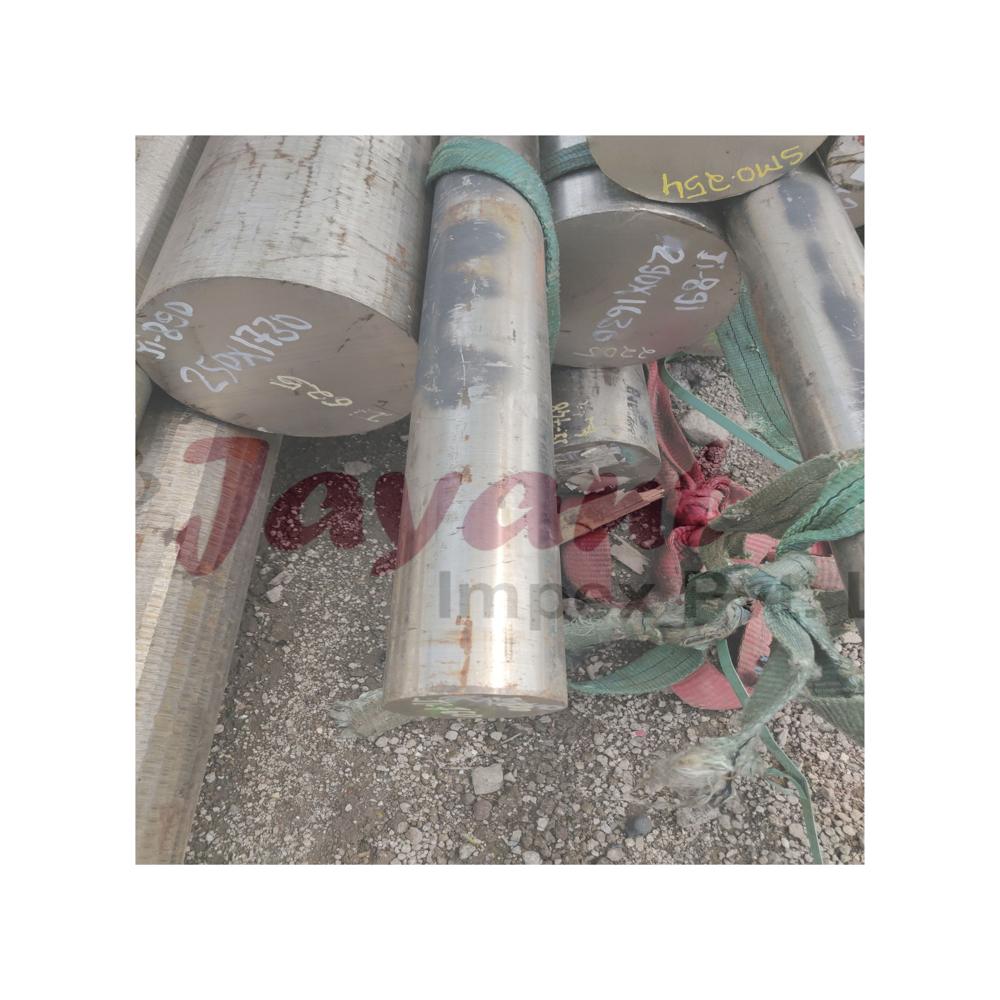

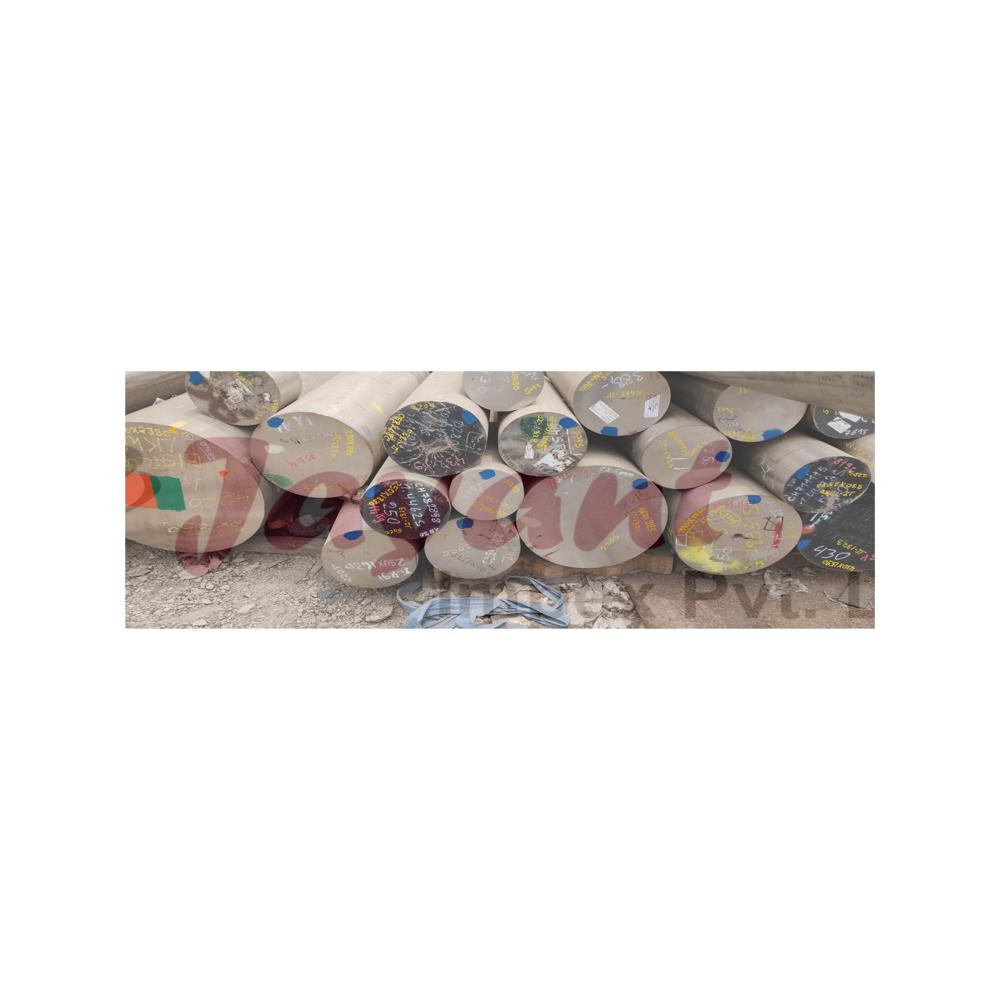

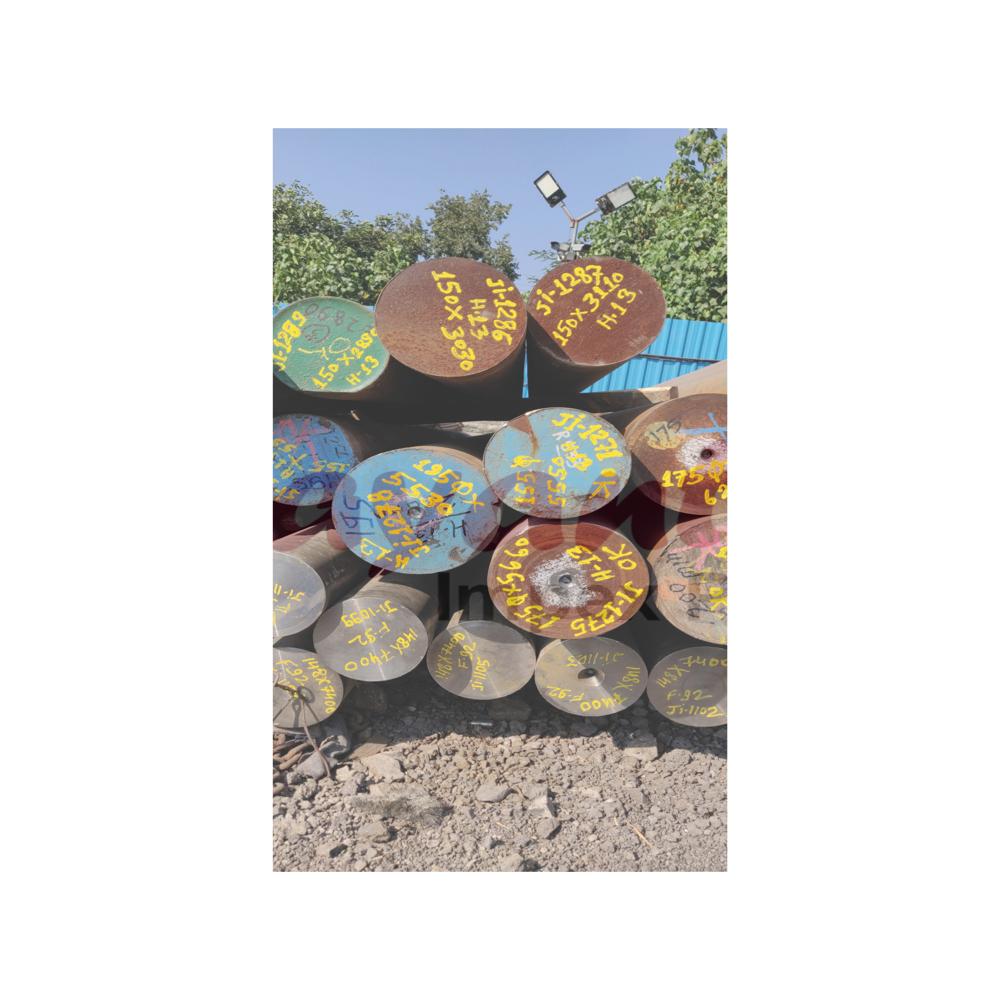

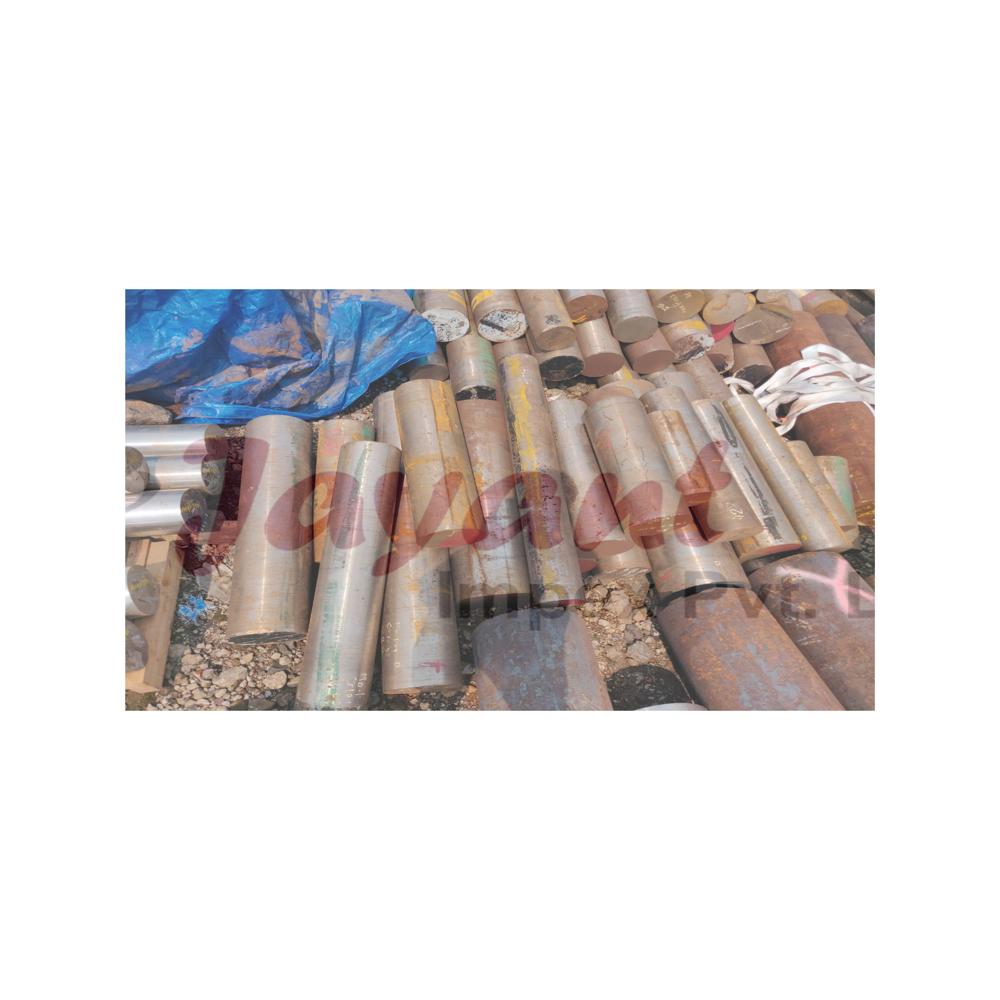

DIN 1.5415 Alloy Steel 1.5415 Round 1.5415 Bars
150.0 INR/Kilograms
Product Details:
- Application Automotive components, Pressure vessels, Mechanical engineering
- Processing Peeled, Turned, Polished, Ground
- Material DIN 1.5415 Alloy Steel
- Grade 1.5415 (15Mo3)
- Type Round Bar
- Technique Hot Rolled, Forged
- Standard DIN 1.5415
- Click to view more
X
DIN 1.5415 Alloy Steel 1.5415 Round 1.5415 Bars Price And Quantity
- 150.0 INR/Kilograms
- 1000 Kilograms
DIN 1.5415 Alloy Steel 1.5415 Round 1.5415 Bars Product Specifications
- Round Bar
- 1.5415 (15Mo3)
- 6 mm to 500 mm
- 3 to 6 meters or custom lengths
- Bright, Polished, Black
- DIN 1.5415
- Components requiring good machinability and resistance to high pressure and temperature
- H9, H11, or as requested
- Hot Rolled, Forged
- DIN 1.5415 Alloy Steel
- Peeled, Turned, Polished, Ground
- Automotive components, Pressure vessels, Mechanical engineering
- max 170 HB (annealed condition)
- Annealed, Hardened & Tempered, Normalized
- Annealed or as per requirement
- min 22% in 50 mm
- approx. 275 MPa
- 450 - 600 MPa
- C: 0.12-0.20%, Si: 0.35%, Mn: 0.40-0.90%, P: max 0.025%, S: max 0.020%, Mo: 0.25-0.35%
- Solid Round
- Bundled, wooden box, or as per customer specification
Product Description
DIN 1.5415 Alloy Steel Round Bars (also known as 16Mo3) on your TradeIndia showroom. This specific grade is a molybdenum-alloyed steel widely used for elevated temperature service.
Below is a breakdown of the technical specifications and a professional product description you can use to fill out your listing for JAYANT IMPEX.
Technical Specifications
You can use these details to update the Product Specifications section of your form:
| Feature | Specification Details |
| Material Grade | DIN 1.5415 / 16Mo3 |
| Standard | EN 10273 / EN 10222-2 |
| Diameter Range | 10mm to 500mm (as per stock/requirement) |
| Length | 3 to 6 Meters or Custom Cut |
| Surface Finish | Black, Bright, Polished, or Peeled |
| Technique | Hot Rolled / Cold Drawn / Forged |
| Tolerance | H9, H11, or as per Customer Requirement |
DIN 1.5415 (16Mo3) Alloy Steel Round Bars are high-quality chrome-moly alloyed steels designed for use in weldable steel boilers and pressure vessels. The addition of Molybdenum provides superior creep resistance at temperatures up to 500C. These bars are highly valued in the power generation and petrochemical sectors due to their excellent mechanical properties and corrosion resistance.
Key Features:
-
Heat Resistance: Maintains structural integrity under high-temperature conditions.
-
Corrosion Resistance: Enhanced protection against chemical wear in industrial environments.
-
Weldability: Excellent welding characteristics using standard techniques.
-
Durability: High tensile strength and yield strength for heavy-duty applications.
Common Applications:
-
Boiler construction and heat exchangers.
-
Oil and gas refinery equipment.
-
Power plant piping systems.
-
Industrial exhaust systems and furnace components.
Exceptional Mechanical Strength
DIN 1.5415 Alloy Steel Bars offer a superior balance of tensile strength (450-600 MPa) and yield strength (approx. 275 MPa), ensuring reliability in demanding environments. Their minimum elongation of 22% supports applications that require both durability and flexibility, particularly in pressure-resistant and high-temperature industries.
Versatile Applications and Processing
With excellent machinability and the ability to withstand elevated pressures and temperatures, 1.5415 bars serve automotive, engineering, and pressure vessel markets. The bars can be processed through peeling, turning, polishing, and grinding, adapting to diverse project requirements and tolerance levels like H9 and H11.
Tailored Supply and Export Packaging
Supplied as solid round bars in diameters from 6 mm to 500 mm, these products are available in various finishes and packed according to customer needs-bundled, in wooden boxes, or per specific export requirements. Suppliers and manufacturers across India cater to custom specifications to ensure safe and secure delivery worldwide.
FAQ's of DIN 1.5415 Alloy Steel 1.5415 Round 1.5415 Bars:
Q: How are DIN 1.5415 alloy steel round bars typically processed?
A: DIN 1.5415 round bars are processed using methods like hot rolling or forging and can undergo additional treatments such as peeling, turning, polishing, or grinding, depending on the required surface finish and dimensional tolerances.Q: What benefits does DIN 1.5415 alloy steel offer for high-pressure and high-temperature applications?
A: The alloy contains molybdenum, which enhances its resistance to high pressure and temperature. Its mechanical properties, like tensile strength up to 600 MPa and good elongation, make it ideal for pressure vessels and automotive components exposed to harsh conditions.Q: When is it advisable to use annealed, normalized, or hardened & tempered conditions for these bars?
A: The choice depends on the application requirements. Annealed bars offer maximum machinability and limited hardness, while normalized or hardened & tempered bars provide enhanced strength and toughness for more demanding uses.Q: What applications are most suitable for DIN 1.5415 round bars?
A: Due to their excellent machinability and resistance to harsh environments, these bars are widely used in the manufacturing of automotive components, pressure vessels, boilers, and general mechanical engineering parts.Q: Where can DIN 1.5415 alloy steel round bars be sourced in India?
A: They are available throughout India, supplied by a network of manufacturers, fabricators, traders, retailers, and exporters who offer customized sizes and packaging for both domestic and international markets.Q: What is the typical export packaging for DIN 1.5415 round bars?
A: Export packaging options include bundling, wooden boxes, or customized packing as specified by the customer to ensure product protection during transit and delivery.Q: What is the chemical composition of DIN 1.5415 (15Mo3) round bars?
A: These bars typically contain 0.12-0.20% carbon, up to 0.35% silicon, 0.40-0.90% manganese, a maximum of 0.025% phosphorus and 0.020% sulfur, and 0.25-0.35% molybdenum, providing robust mechanical and chemical stability in challenging conditions.Tell us about your requirement
