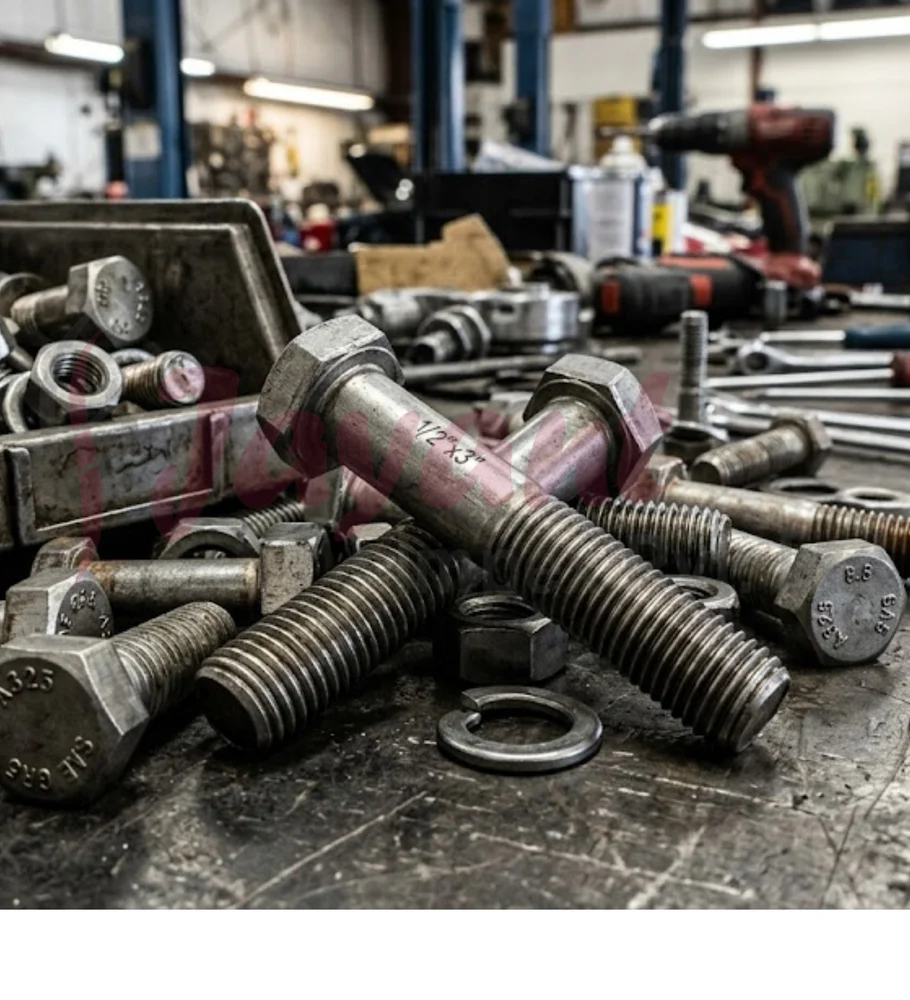

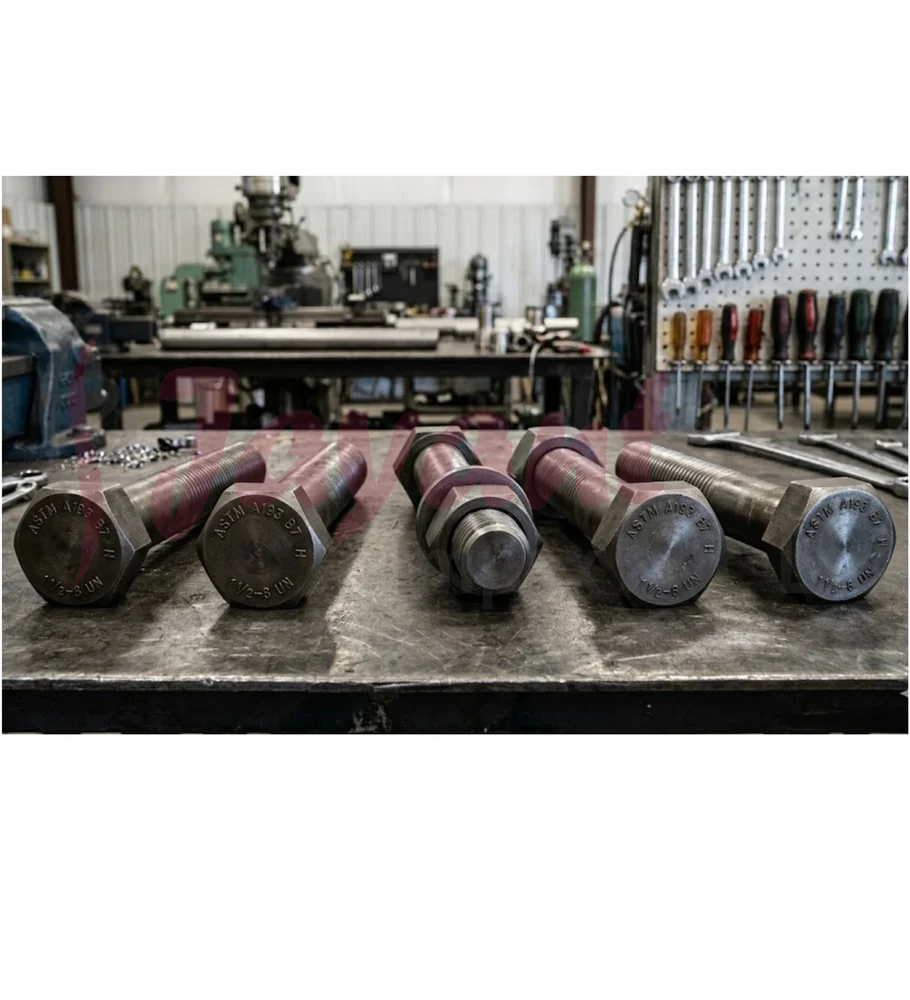

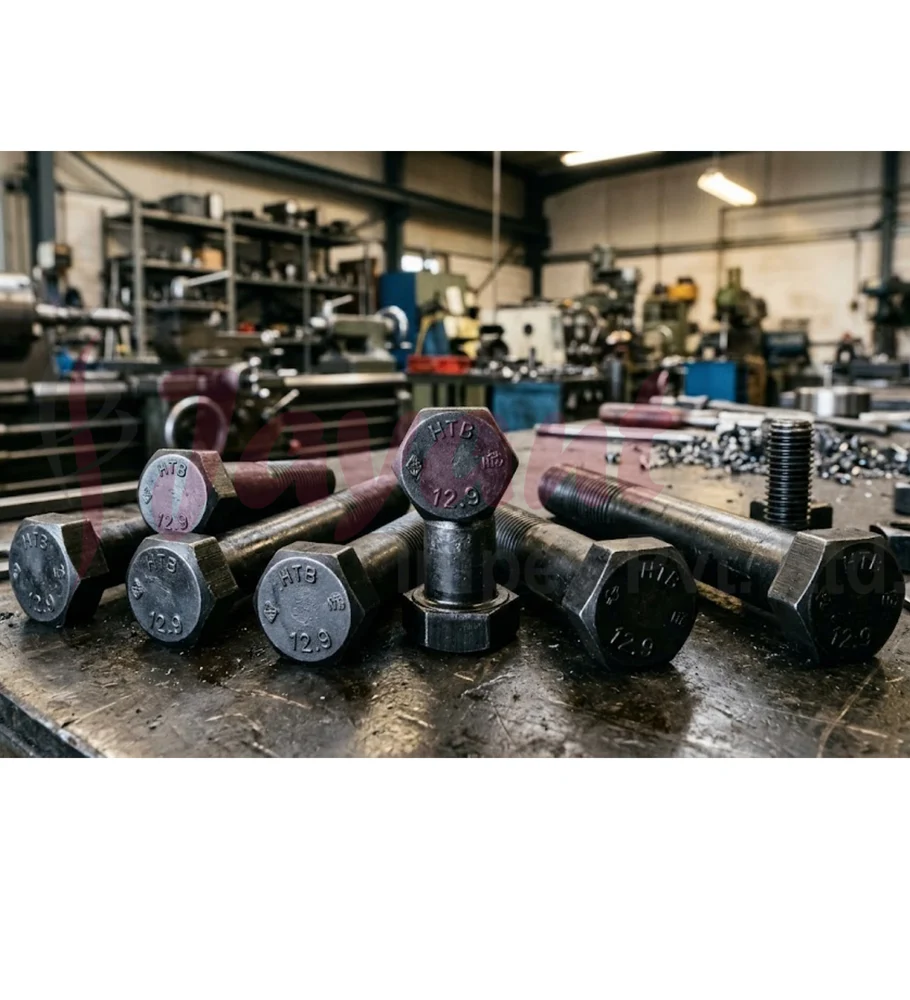

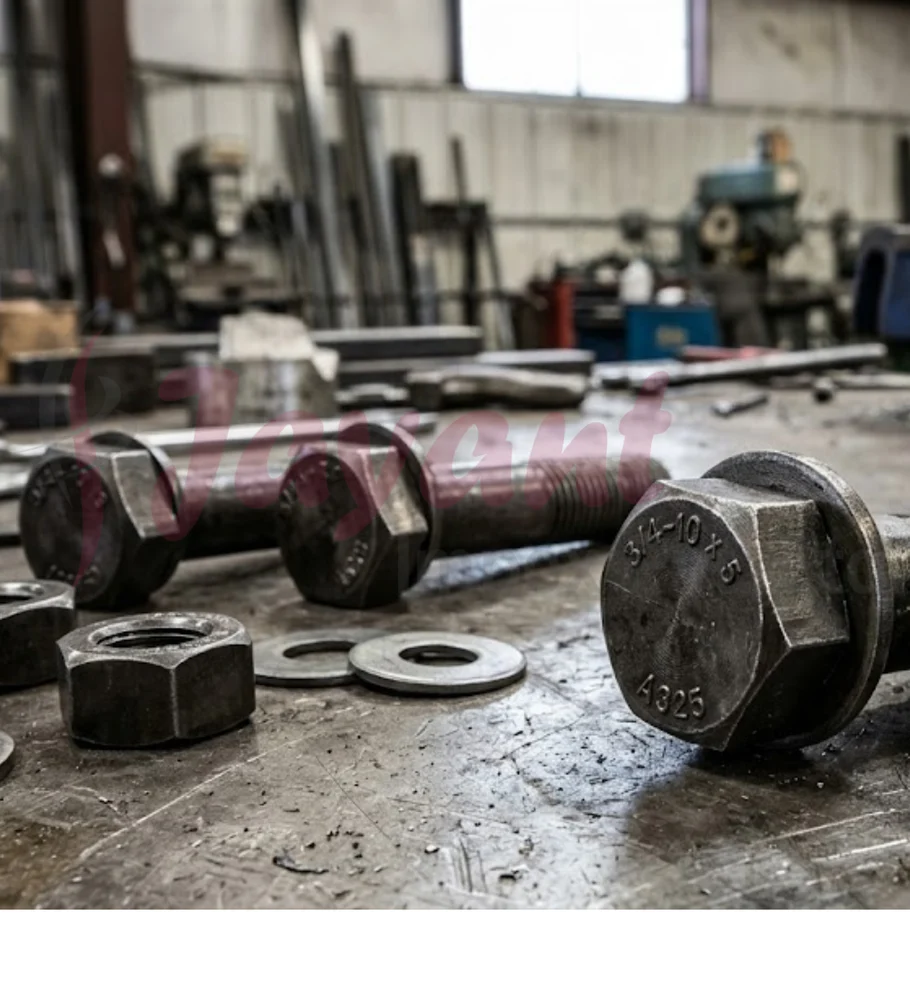

Custom Bolt

Product Description

When off-the-shelf fasteners don't meet the specific mechanical or environmental demands of a project, custom bolts are engineered to fill the gap. These are typically manufactured through CNC machining or cold/hot forging to meet exact blueprints.

When to Choose Custom Bolts

• Unique Geometries: Non-standard head shapes (e.g., T-heads, offset heads) or custom shank lengths that aren't available in hardware catalogs.

• Specialized Threading: Extra-long threads, non-standard pitches, or left-hand threading for specific mechanical rotations.

• Exotic Materials: When standard 304/316 stainless or carbon steel isn't enough, bolts can be fabricated from Titanium, Inconel, Monel, or Hastelloy for extreme temperature or chemical resistance.

Common Custom Configurations

1. Custom Eye Bolts & Hook Bolts

Often used for heavy lifting or tensioning, these can be forged with specific loop diameters or open hook gaps that standard industrial versions don't offer.

• Shoulder Eye Bolts: Designed for angular loads.

• Plain Eye Bolts: For vertical lifting only.

2. Double-End & Tap-End Studs

These have threads on both ends but may feature a custom-length "blank" or unthreaded center section to pass through specific housing thicknesses.

• Application: Commonly used in engine blocks or high-pressure flange assemblies.

3. Custom Shoulder Bolts (Stripper Bolts)

These feature an unthreaded "shoulder" that acts as a pivot or slide for moving parts. Custom versions allow for precise tolerances on the shoulder's diameter and length to reduce mechanical "play."

Manufacturing Processes

Sourcing Custom Fasteners

CNC Machined Custom Titanium Bolt

For aerospace or high-end automotive applications, titanium provides an incredible strength-to-weight ratio. CNC machining ensures the threads and head meet aerospace-grade tolerances.

Custom Length Stainless Studs

If standard lengths leave too much or too little thread, custom-cut stainless studs provide a flush finish for architectural or marine installations.

Essential Specifications for a Quote

If you are planning to order custom bolts, you will generally need to provide:

1. Material: (e.g., Grade 10.9 Steel, 316 Stainless, or a specific super-alloy).

2. Dimensions: Head width, head height, shank diameter, and total length.

3. Thread Data: Thread pitch (Metric or Imperial) and the exact length of the threaded portion.

4. Finish: (e.g., Passivated, Cadmium plated, Hot-dip galvanized, or Plain).
