Csk Allen Bolt

Product Description

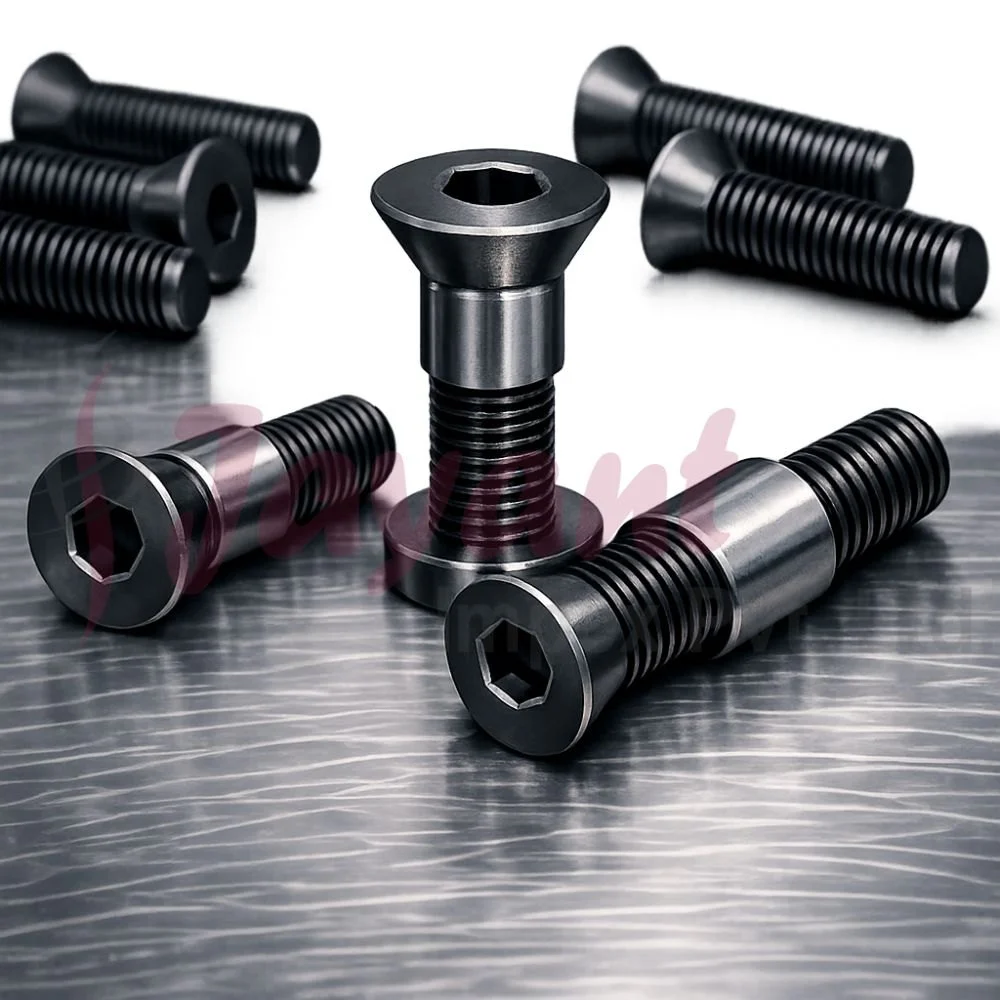

A CSK Allen Bolt (Countersunk Socket Head Bolt) is a high-strength fastener designed to sit flush with the surface of the material while being driven by an internal hexagonal (Allen) wrench. In industrial engineering, these are prized for applications where a smooth surface is required but high torque is necessary for a secure hold.

1. Design & Geometry

The term "CSK" stands for countersunk, referring to the conical shape of the head.

• Head Angle: In metric sizes (ISO 10642), the standard angle is 90°. In imperial (ANSI) sizes, the standard angle is 82°.

• Socket Drive: The hexagonal recess allows for significantly higher torque than a Phillips or slotted drive, reducing the risk of "cam-out" or stripping.

• Length Measurement: Unlike standard hex bolts, the length of a CSK bolt is measured overall (from the top of the head to the tip of the point), as the entire bolt is intended to be submerged in the workpiece.

2. Common Industrial Standards

• ISO 10642: The most common metric standard for countersunk socket head screws.

• DIN 7991: The older German standard, still frequently used in global manufacturing and procurement.

• ASME B18.3: The standard for imperial (inch) socket products.

3. Material Grades

In industrial settings, the material grade determines the bolt's tensile strength and environment suitability:

• Class 10.9 / 12.9 (Alloy Steel): High-tensile fasteners often used in machinery, automotive parts, and high-stress structural joints. Usually finished in black oxide.

• A2 / A4 Stainless Steel: Used in food processing, medical, and marine industries where corrosion resistance is vital. A4 (316) is preferred for high-salt or chemical environments.

• Grade 5 (Imperial): Common for general mechanical assemblies.

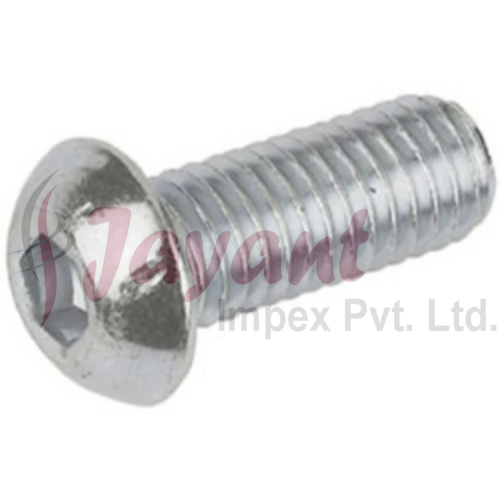

4. Technical Comparison: CSK vs. Button Head

Industrial designers often choose between these two low-profile options:

5. Critical Installation Tips

• Countersink Alignment: If the angle of the tool ($90^\circ$ vs $82^\circ$) does not match the bolt, the head will not seat properly. This leads to point-loading, which can cause the head to snap off or the material to crack.

• Torque Limits: Because the head is countersunk, the "meat" of the head is thinner than a standard cap screw. Even in Grade 12.9, the maximum tightening torque for a CSK bolt is generally lower than that of a standard Socket Head Cap Screw (SHCS) to prevent head failure.

• Vibration: In high-vibration machinery, CSK bolts can act like a wedge and work themselves loose. Using a medium-strength thread locker (e.g., Loctite 243) is standard industrial practice.
