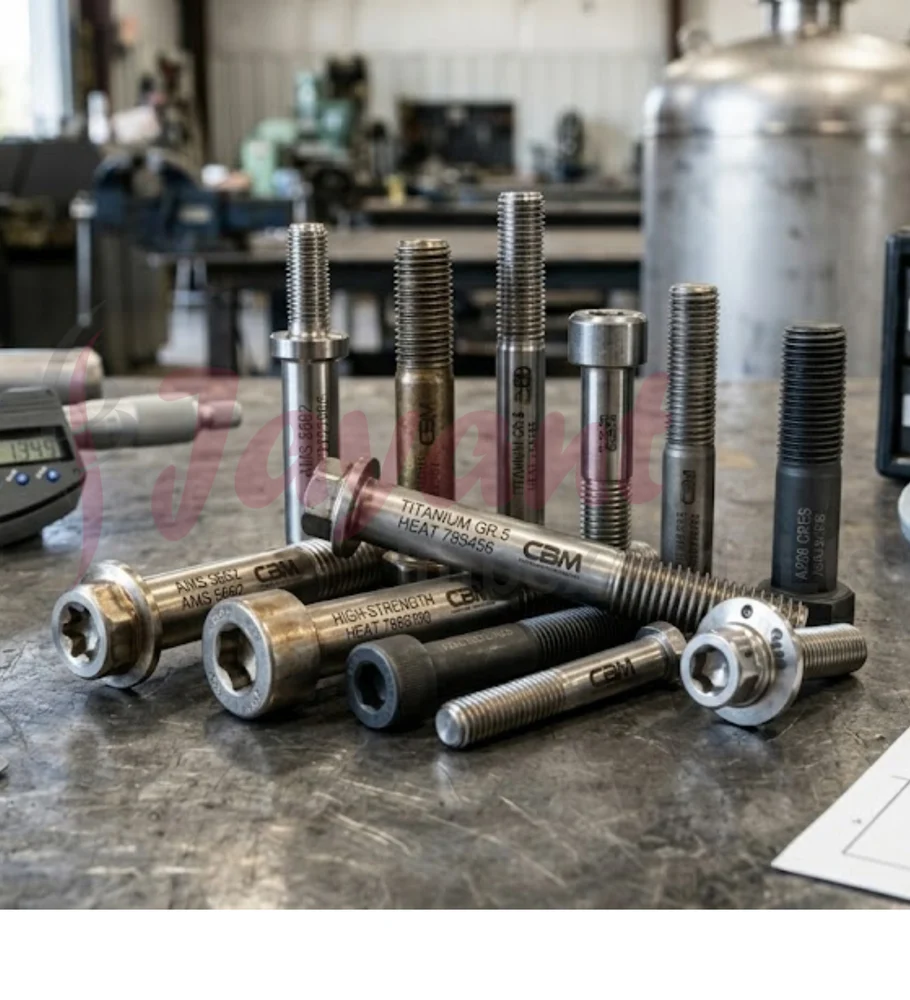

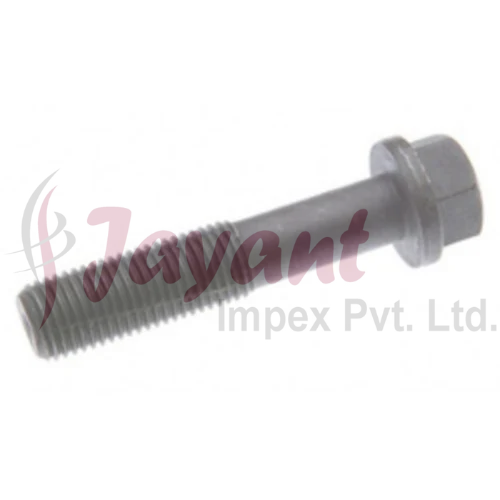

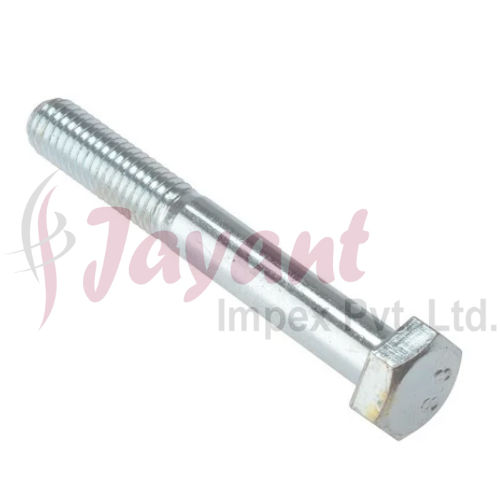

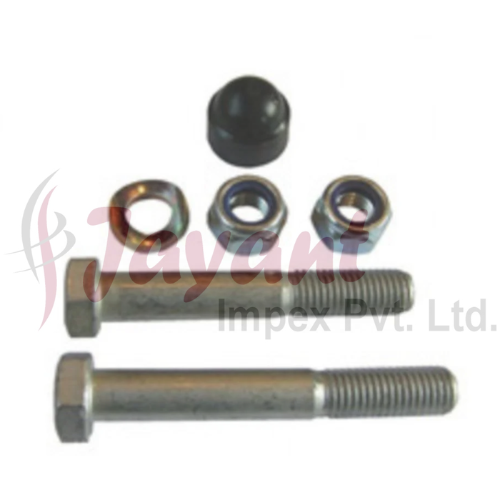

Connecting Rod Bolt

Product Description

When it comes to connecting rod bolts, you're dealing with arguably the most critical fastener in an internal combustion engine. Because these bolts must withstand immense reciprocating loads and "big end" distortion at high RPMs, their selection and installation are governed by strict metallurgical and mechanical principles.

1. Common Material Grades

The choice of material is dictated by the required tensile strength and fatigue resistance:

• AISI 4340: The industry standard for high-performance rods. It is a nickel-chromium-molybdenum alloy steel known for its toughness and high fatigue strength.

• ARP2000: A proprietary alloy (similar to a modified 4340) often used in racing, capable of handling clamp loads up to 220,000 psi.

• Custom Age 625+: A "super-alloy" used in extreme forced induction or high-RPM applications where resistance to hydrogen embrittlement and corrosion is needed alongside massive tensile strength (260,000+ psi).

• 8.8, 10.9, or 12.9: Standard metric classes used in OEM applications, with 12.9 being the typical choice for performance-oriented factory rods.

2. Critical Mechanical Properties

Connecting rod bolts fail primarily due to fatigue or insufficient clamp load (which allows the rod cap to "walk" or the bearing to spin).

3. Installation Metrics: Torque vs. Stretch

Precision is more important here than in almost any other assembly step. There are three primary ways to measure the "tightness" of a rod bolt:

1. Torque Method: The most common but least accurate due to friction variances (under-head and thread friction).

2. Torque-to-Yield (TTY): Used in many modern OEM engines. These bolts are designed to be tightened into the plastic deformation range and must be replaced after one use.

3. Bolt Stretch Method: The gold standard for performance builds. Using a stretch gauge, you measure the physical elongation of the bolt. This directly measures the "spring" force (clamp load) regardless of friction. Typical stretch targets for a 4340 bolt are often between 0.005" and 0.007".

4. Cross-Reference for High-Strength Fasteners

If you are looking for equivalents across international standards for high-tensile fastener stock:

• USA: AISI 4340 / E4340

• Germany (DIN/WNr): 34CrNiMo6 / 1.6582

• Japan (JIS): SNCM439

• UK (BS): 817M40 (EN24)
