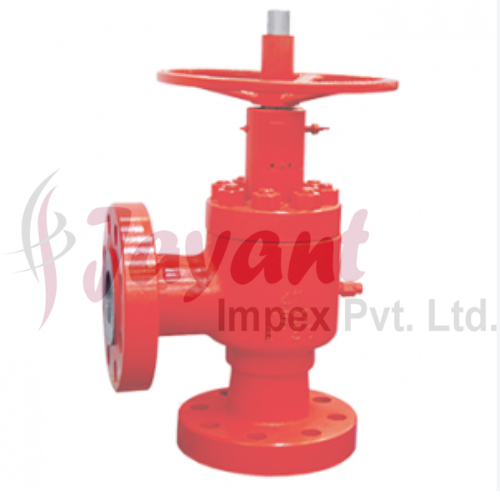

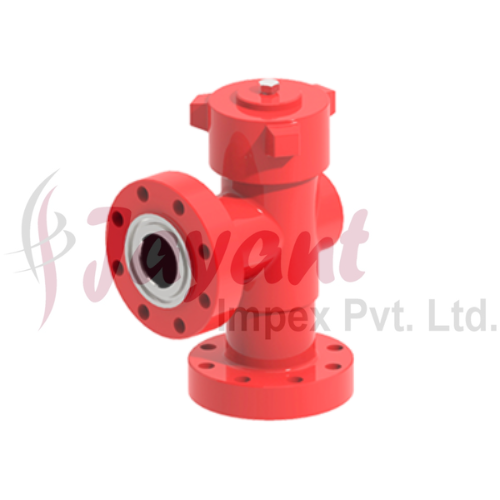

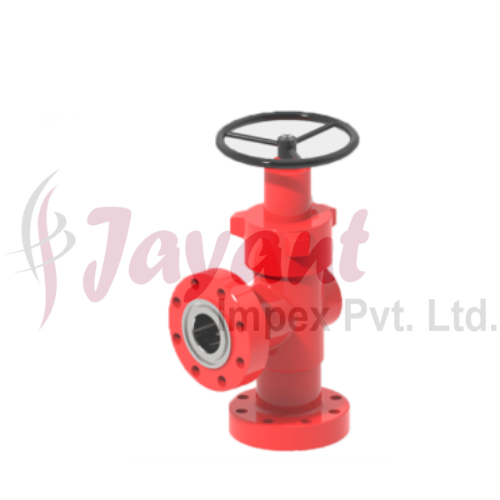

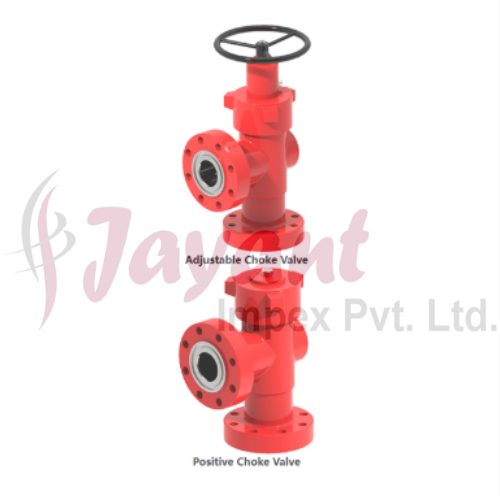

Choke Valve Adjustable Choke Valves

Choke Valve Adjustable Choke Valves Price And Quantity

• Minimum Order Quantity 1 Piece
• Price 2000.0 INR/Piece

Choke Valve Adjustable Choke Valves Product Specifications

• Valve Type Needle and Seat/Positive Choke/Adjustable Choke
• Pin Adjustable Pin for Flow Control
• Connection Type Flanged, Threaded, Welded Ends as per API/ANSI Standards
• Temperature -29C to +121C (-20F to +250F), Customizable
• Disc Tungsten Carbide or Stainless Steel Disc
• Application Oil and Gas Wellhead Control, Flow Regulation, Choke Manifold, Pressure Control in Industrial Processes
• Power Manual, Pneumatic, or Hydraulic Operator
• Type Adjustable Choke Valve
• Pressure Up to 10,000 psi (690 Bar)
• Media Oil, Gas, Water, Slurry
• Voltage Not Applicable (Manual/Pneumatic/Hydraulic Operation)
• Valve Size 2 ~ 4 (DN50 - DN100), Customized Sizes
• Features High Erosion Resistance, Adjustable Flow Rate, Replaceable Trim, Corrosion Resistant, Easy Maintenance
• Control System Manual Handwheel or Actuator (Pneumatic/Hydraulic/Remote)
• Sealing Metal-to-Metal or Soft Sealing
• Structure Body, Bonnet, Stem, Seat, Disc, Adjustable Orifice
• Material Forged Carbon Steel, Stainless Steel, Inconel, Alloy Steel
• Port Size 2 Inch, 3 Inch, 4 Inch, Custom Sizes Available

• Bonnet Type Bolted or Pressure-Seal Bonnet
• Applicable Standards API, ANSI, ASTM, ISO
• Flow Characteristic Linear or Equal Percentage
• Surface Treatment Anti-Corrosive Coating, Epoxy Painted
• Operation Method Handwheel, Pneumatic or Hydraulic Actuators
• Design Standard API 6A, NACE MR-0175 Compliance
• Packing PTFE, Graphite or Other High-Performance Packing
• Trim Material Tungsten Carbide, Stainless Steel, Ceramic Options Available
• End Connections API Flanges, BSP/NPT Threaded, Butt Weld
