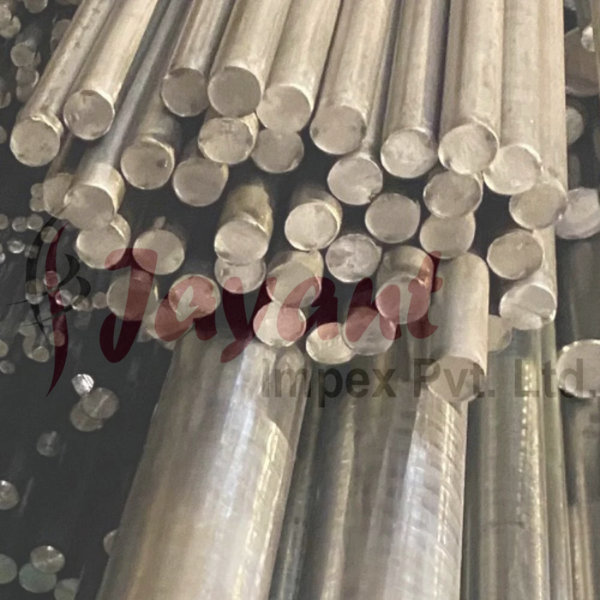

ASTM A453 660 Class A Round Bar - ASTM A453 660 Class B Bars

Product Description

ASTM A453 Grade 660 Class A vs. Class B Round Bars

ASTM A453 Grade 660 is the standard metallurgical specification for high-temperature, high-strength bolting materials and round bar stock. Chemically identical to Alloy A286 (UNS S66286), this iron-base austenitic superalloy is designed for critical fastening components operating at continuous service temperatures up to 704°C (1300°F).

While Class A and Class B round bars share identical chemical envelopes and room-temperature minimum mechanical property requirements, they diverge completely in their solution annealing heat treatment profile.

The Primary Differentiator: Heat Treatment Profiles

The divergence between Class A and Class B alters the material's microstructural grain architecture before the final precipitation-hardening (aging) bake:

Shared Mechanical Property Requirements

Because both classes undergo the exact same 16-hour aging treatment at 1325°F, they must meet the same room-temperature mechanical property baselines required by the ASTM A453 standard:

• Ultimate Tensile Strength ($R_m$): $\ge$130 ksi (895 MPa)

• 0.2% Yield Strength ($R_{p0.2}$): $\ge$85 ksi (585 MPa)

• Minimum Elongation ($A_5$): $\ge$15%

• Minimum Reduction of Area ($Z$): $\ge$18%

• Hardness Range:248 to 341 HBW (or 24 to 37 HRC)

• Stress Rupture Requirement: Both classes must withstand a continuous load of 56 ksi (385 MPa) at 1200°F (650°C) for a minimum of 100 hours without breaking.

Engineering & Application Implications

The difference in solution temperatures creates distinct structural trade-offs for engineers specifying these round bars:

Class A (Finer Grain)

The lower solution temperature (1650°F) leaves some carbides undissolved, which pins the grain boundaries and prevents excessive grain growth.

• Advantage: Finer grain sizes yield higher room-temperature fatigue resistance, better localized ductility, and slightly improved low-temperature impact toughness.

• Best For: High-cycle dynamic load applications, aerospace engine hardware, and components subjected to frequent cyclic thermal transitions.

Class B (Coarser Grain)

The higher solution temperature (1800°F) dissolves more secondary intermetallic phases back into the austenitic solid matrix.

• Advantage: A coarser grain structure provides enhanced long-term creep-rupture stability and higher resistance to grain boundary sliding under sustained, dead-weight loads at maximum operating temperatures.

• Best For: High-pressure subsea oil and gas equipment, massive turbine casing studs, and flanged pressure vessels requiring strict compliance with NACE MR0175/ISO 15156 sour gas safety margins.
