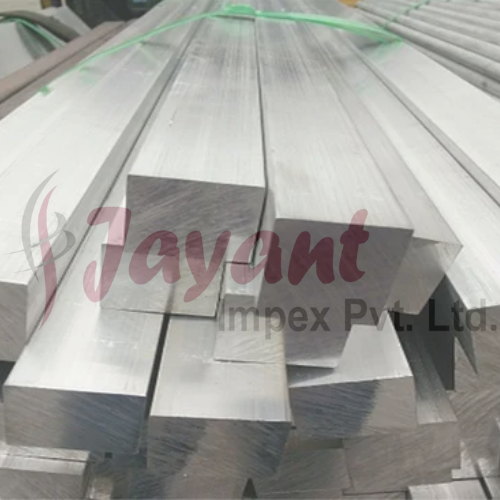

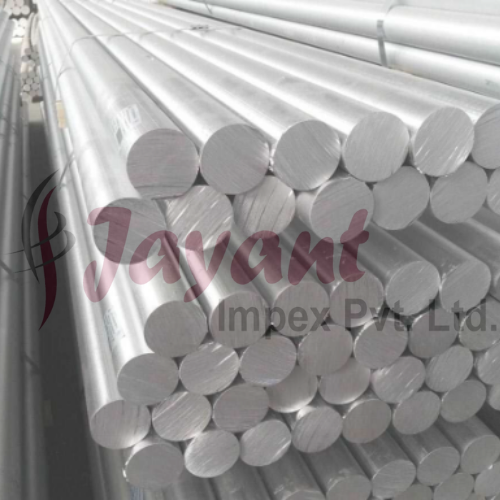

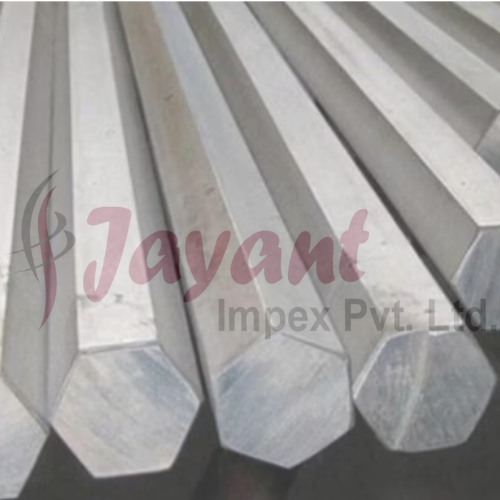

Aluminium ENAW-6063 Bar & Rod(6063 - T3, T6, T8

Product Description

While EN AW-6063 (AlMg0.7Si / WNr 3.3206) is famously recognized as the premier commercial extrusion alloy for its exceptional surface finish and complex profiling capabilities, specifying the right metallurgical temper modifies its physical behaviors drastically.

The differences between the T3, T6, and T8 tempers for 6063 round bars, rods, and extruded profiles represent distinct sequences of thermal solution treating, artificial aging, and cold working (strain hardening).

1. Temper Processing Matrix Explained

The alphanumeric suffix directly indicates the precise combination of mechanical and thermal work applied to the bar stock after extrusion.

• 6063-T3 (Solution Heat Treated + Cold Worked + Naturally Aged): The bar is heated to an elevated solution temperature, quenched, and then mechanically cold-worked (by drawing or stretching) before being allowed to stabilize at room temperature (natural aging).

• 6063-T6 (Solution Heat Treated + Artificially Aged): The definitive industry benchmark for structural 6063. The bar is solution heat-treated, quenched, and then placed directly into a thermal aging oven (typically ~175°C to 185°C) to force the rapid, uniform precipitation of hardening $Mg_2Si$ crystals without any cold deformation.

• 6063-T8 (Solution Heat Treated + Cold Worked + Artificially Aged): The high-performance variant. The bar is solution treated, quenched, mechanically cold-worked to introduce dislocation density into the crystal matrix, and then artificially overaged in an oven. The microstructural strain hardening combined with precipitation hardening gives T8 the highest yield parameters.

2. Mechanical Property Cross-Comparison

Because 6063 is naturally a leaner, more ductile alloy compared to 6061 or 6082, shifting to tempers that include cold work (T3 and T8) pushes its yield envelope closer to those higher-tier structural grades.

Core Mechanical Takeaways:

• T6 vs T8 Strength: By adding cold work prior to aging, the T8 temper increases the yield strength by nearly 40% compared to a standard structural T6 bar.

• T3 Ductility: T3 remains highly malleable with an excellent elongation profile. It is much easier to cold-form, bend, or flare without micro-cracking compared to T6 or T8, though it possesses lower ultimate load resistance.

3. Engineering & Machining Dynamics

Machinability & Chip Control

• T6 & T8: Turn beautifully on CNC equipment. The higher hardness indices (~75 to 80 HBW) mean the material chips cleanly with minimal "gumming" or ribboning onto the cutting tool toolposts, matching the requirements of automated Swiss-lathes or screw machines.

• T3: Soft and gummy during high-speed milling or turning. Polished, high-rake tooling explicitly optimized for aluminum and a copious flow of cutting fluid are mandatory to prevent built-up edge (BUE) on tool inserts.

Geometric and Surface Precision

When ordering T3 or T8 rods, they are frequently delivered as Cold Drawn (EN 754) because the cold working phase requires pulling the bar through a precision reduction die. This yields significantly tighter diameter tolerances (e.g., ISO h9 or h11) and a bright, reflective burnished surface finish compared to regular Extruded (EN 755) T6 bars.

Weldability Note

All three tempers can be TIG or MIG welded with ease using 4043 or 5356 filler wire. However, the heat from welding destroys the temper structure. The heat-affected zone (HAZ) of a T6 or T8 bar will drop significantly back to an annealed (O-temper) equivalent (~60-70 MPa yield), meaning your structural joints will lose the performance enhancements gained from the artificial aging or cold working.

4. Typical Applications Across Tempers

• 6063-T3: Hydroformed chassis elements, custom-bent furniture frameworks, and deep-drawn components where complex contours are required before natural aging locks in the form.

• 6063-T6: Standard structural columns, architectural window frames, premium conduit pathways, heat sinks, and decorative anodized trim.

• 6063-T8: High-pressure irrigation tubes, high-precision machined spacers/bushings, pneumatic cylinder bodies, and extreme sports gear profiles where wall thicknesses must be minimized to save weight without sacrificing burst/yield resistance.
