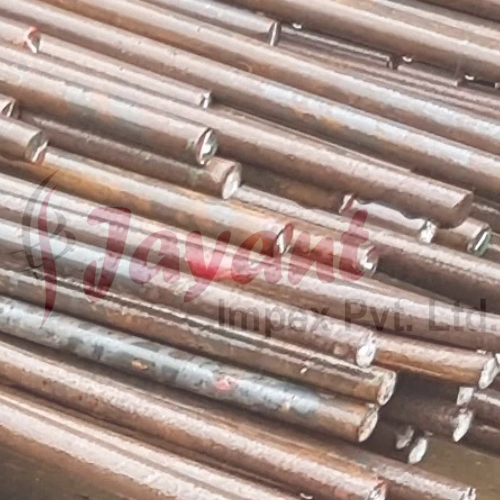

Alloy Steel FL-LA 2557.1 SX (FAG) Bars, FL-LA 2557.1 SX (FAG) Rods

Product Description

FL-LA 2557.1 SX Alloy Steel (FAG/Schaeffler)

FL-LA 2557.1 SX is a high-performance, specialized alloy steel specification developed by FAG (a brand of the Schaeffler Group). This material is engineered specifically for the manufacturing of precision rolling-element bearings used in aerospace, defense, and high-load industrial applications.

The "SX" suffix typically denotes a specific quality level or specialized processing route—often involving Vacuum Arc Remelting (VAR)—to ensure the extreme cleanliness and fatigue resistance required for aircraft engine and gearbox bearings.

Technical Specifications & Composition

While FAG specifications are proprietary, FL-LA 2557.1 is functionally equivalent to high-end 80CrMo7 or similar chrome-molybdenum bearing steels. It is designed to provide high core toughness alongside extreme surface hardness after specialized heat treatment.

Mechanical Properties & Performance

The "SX" variant is optimized for rolling contact fatigue (RCF), the primary failure mode in high-speed bearings.

• Hardness (Working Surface): 58–64 HRC (after heat treatment).

• Fatigue Strength: Exceptionally high, due to the reduction of non-metallic inclusions (oxides and sulfides) that cause subsurface cracks.

• Toughness: Maintained at a level that prevents brittle fracture under shock loading.

• Temperature Stability: Capable of maintaining dimensional stability at elevated operating temperatures typical of turbine engines.

Product Forms & Applications

1. Round Bars & Rods

Supplied in the annealed or spheroidized state to facilitate high-precision machining and grinding.

• Applications: Bearing rollers, balls, and precision shafts for aerospace gearboxes.

2. Rings & Forged Components

Often utilized in the production of bearing races. The material is forged into rings to ensure a favorable grain flow, which further enhances the fatigue life of the bearing.

• Applications: Inner and outer rings for mainshaft bearings in jet engines (e.g., for Rolls-Royce or MTU programs) and helicopter transmissions.

Key Attributes of the "SX" Specification

The "SX" designation signifies that the material has passed the most rigorous quality gates in the Schaeffler ecosystem:

• Micro-Cleanliness: The steel is virtually free of the impurities that limit the lifespan of standard industrial bearings.

• Isotropic Properties: Due to the VAR process, the mechanical properties are consistent in both the longitudinal and transverse directions.

• Strict Traceability: Every bar or rod is typically 100% ultrasonically tested and eddy-current inspected to ensure no internal defects exist.

Fabrication Notes

• Machinability: Like most high-alloy bearing steels, it is relatively difficult to machine. It requires rigid machine tools and is typically rough-machined in the annealed state, followed by precise grinding after the hardening process.

• Heat Treatment: This usually involves a precise cycle of austenitizing, quenching (often in oil or salt baths), and multiple tempering stages to achieve the exact hardness-to-toughness ratio required by the FAG design print.

• Surface Integrity: Final components are often super-finished (honed or lapped) to a sub-micron surface roughness to maximize the lubricant film thickness during operation.
