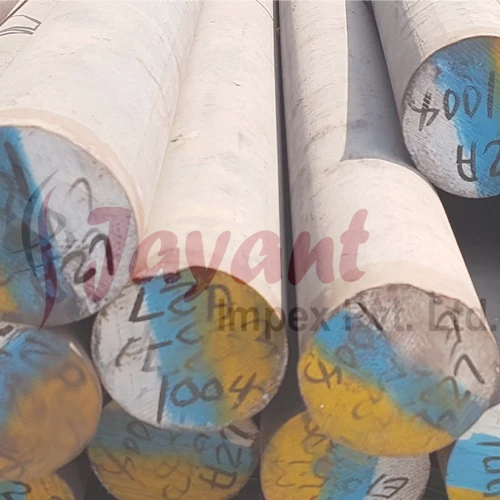

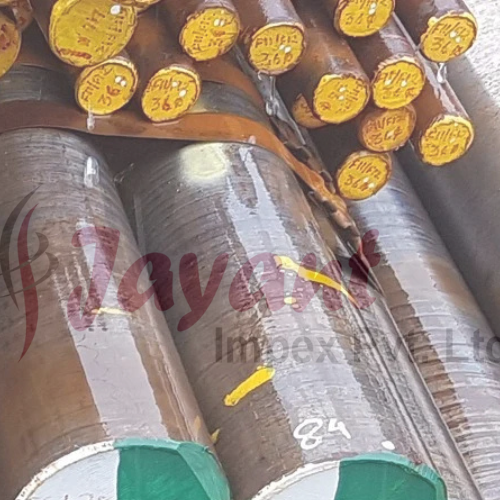

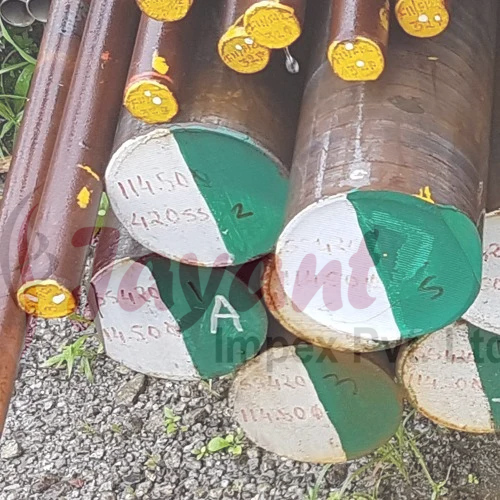

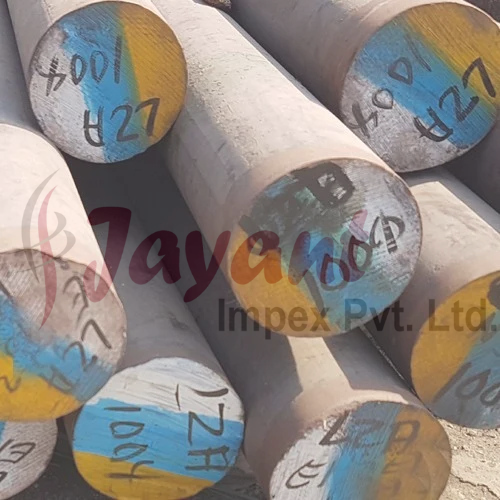

Alloy 630 Stainless Steel Bars W.Nr. X5CrNiCuNb17-4

Product Description

Fatigue Strength and Endurance Limits

When designing rotating machinery components (such as pump shafts, valve stems, or mixer impellers) from Alloy 630 bar stock, fatigue failure is a primary design boundary.

• Endurance Limit ($\sigma_f$): In the peak-aged condition (H900 / +P1200), the smooth-specimen fatigue endurance limit is approximately $550\text{ to }620\text{ MPa}$ ($80\text{--}90\text{ ksi}$) when tested under reversed bending conditions at room temperature.

• The Notch Sensitivity Factor: Martensitic steels like 17-4PH are highly notch-sensitive when hardened to peak levels ($40\text{--}47\text{ HRC}$). If your bar component features sharp fillets, keyways, or snap-ring grooves, the fatigue limit drops drastically.

• Mitigation: Designers routinely utilize the H1025 (+P1070) or H1075 conditions for fatigue-critical hardware. The slightly overaged matrix increases crack propagation resistance, yielding a safer, more predictable service life despite a minor loss in absolute tensile strength.

Elevated Temperature Service Envelope

While 17-4PH retains excellent mechanical properties compared to standard austenitic stainless steels (like 316), it faces strict temperature operational ceilings due to long-term microstructural aging phenomena:

• Maximum Long-Term Service Temperature: $316^\circ\text{C}$ ($600^\circ\text{F}$).

• The Risk of 475°C Embrittlement: If Alloy 630 bars are exposed to sustained service temperatures exceeding $370^\circ\text{C}$ ($700^\circ\text{F}$) for extended durations, a secondary, unwanted precipitation phase occurs (often termed $475^\circ\text{C}$ or $\alpha^\prime$ embrittlement). This causes a severe drop in impact toughness and ductility, rendering the material exceptionally brittle at room temperature.

• Short-Term Exposure: It can withstand brief thermal spikes up to $480^\circ\text{C}$ ($900^\circ\text{F}$) only if structural loads are minimal and the environment is non-corrosive.

Sour Gas / NACE MR0175 Compliance for Valve Stems

If you are sourcing Alloy 630 bars for the oil and gas sector or petrochemical refining, standard heat treatments like H900, H1025, or H1075 cannot be used due to the risk of Sulfide Stress Cracking (SSC) in environments containing $H_2S$.

To meet the structural mandates of NACE MR0175 / ISO 15156, the material must undergo a specialized Double Overaging sequence to completely soften the martensitic matrix and eliminate trace internal stress states:

1. Solution Anneal: Standard thermal cycle at $1040^\circ\text{C} \pm 15^\circ\text{C}$, followed by liquid or air cooling.

2. First Ageing Cycle: Heat to $760^\circ\text{C} \pm 15^\circ\text{C}$ for a minimum of 2 hours, then air cool down to room temperature.

3. Second Ageing Cycle: Re-heat to $620^\circ\text{C} \pm 15^\circ\text{C}$ for a minimum of 4 hours, followed by air cooling.

• Resulting Hardness: This cycle (commonly known as Condition H1150-M) yields a maximum hardness of 28 HRC (or $271\text{ HBW}$), satisfying the NACE ceiling for downhole structural components.
