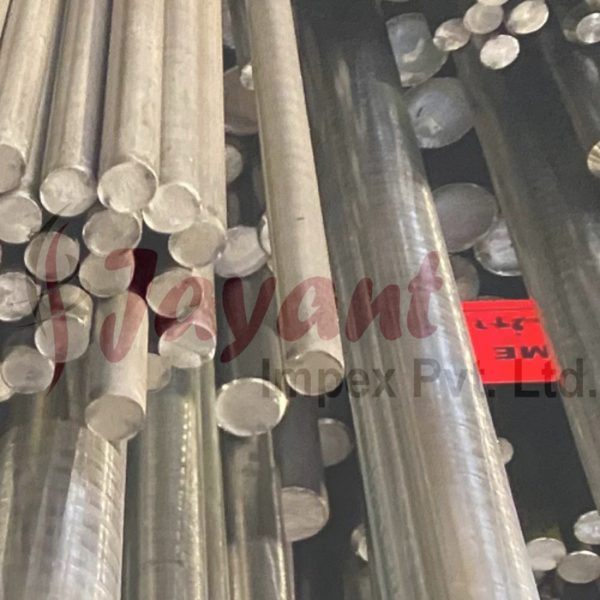

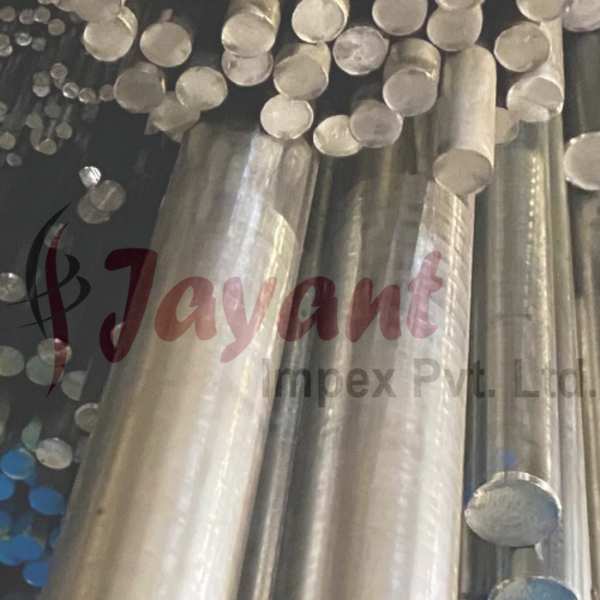

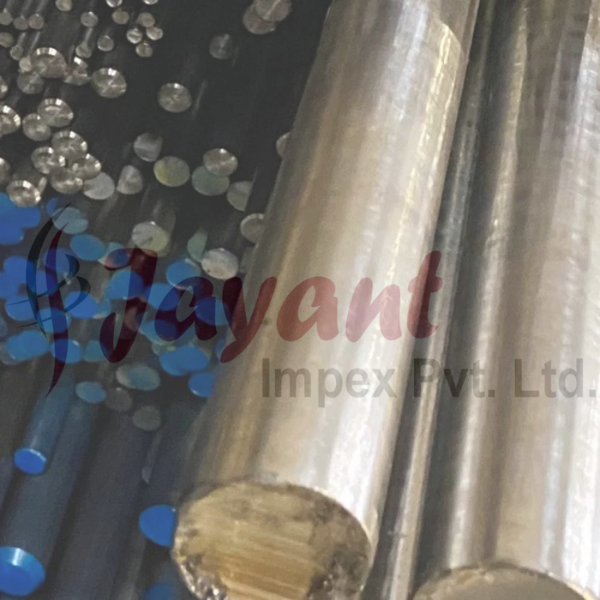

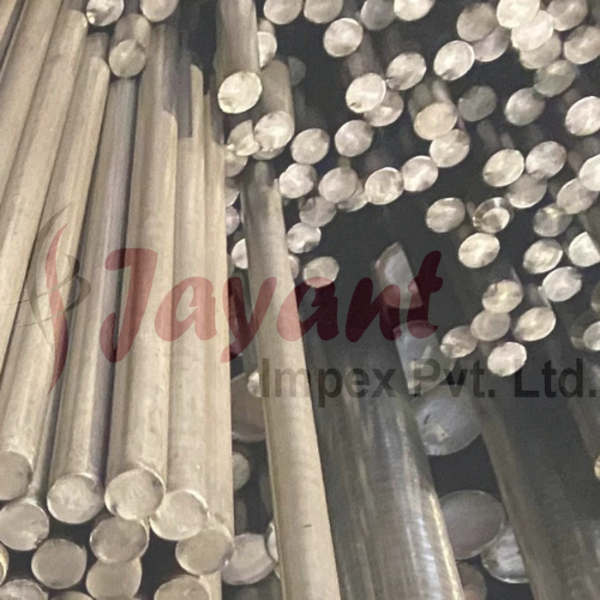

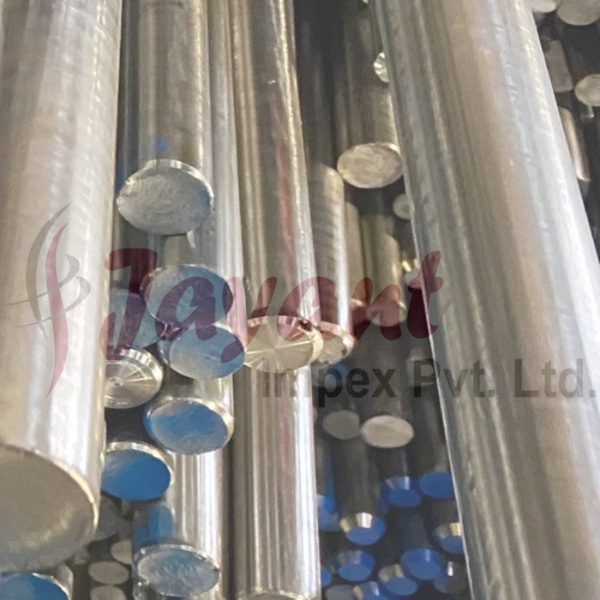

1.4452 Cr-Mn-N Steel Round Bar

Product Description

As previously noted, 1.4452 is the numerical designation for X13CrMnMoN18-14-3, a high-nitrogen austenitic stainless steel. In the form of round bars, this material is engineered for applications where "standard" stainless steels (like 316L) fail to provide sufficient mechanical strength or absolute non-magnetism.

Technical Profile

The synergy between Manganese (Mn) and Nitrogen (N) is the core of this alloy's performance. Nitrogen is roughly 20 to 30 times more effective at stabilizing austenite than nickel, and it significantly raises the yield strength without sacrificing toughness.

1. Typical Mechanical Properties

Compared to standard 1.4404 (316L), the 1.4452 round bar offers a substantial jump in physical limits:

2. Pitting Resistance (PREN)

The presence of Molybdenum and high Nitrogen gives this steel excellent resistance to localized corrosion.

• PREN Calculation: $PREN = \%Cr + 3.3 \times \%Mo + 16 \times \%N$

• For 1.4452, the PREN typically ranges between 30 and 36, making it highly resistant to seawater and aggressive industrial chemicals.

3. Key Benefits for Round Bar Applications

• Weight Reduction: Because the yield strength is nearly double that of 316L, engineers can often specify smaller diameter 1.4452 rods to carry the same load, reducing the overall weight of the assembly.

• Cryogenic Stability: The austenitic structure remains stable and ductile even at extremely low temperatures, unlike ferritic or martensitic steels which become brittle.

• Surface Finish: The high hardness of the material (typically >200 HBW) allows for an exceptional mirror polish, which is vital for medical and high-end consumer applications.

4. Selection Criteria

When sourcing 1.4452 round bars, it is important to confirm the heat treatment state:

1. Solution Annealed (+AT): Provides the best corrosion resistance and maximum ductility.

2. Cold Worked (+C): If even higher strength is required, cold-drawn rods can reach tensile strengths exceeding $1100$ MPa, though this increases the difficulty of subsequent machining.

5. Primary Industries

• Marine Engineering: Pump shafts and fasteners exposed to salt spray where non-magnetism is required for onboard electronics.

• Scientific Instrumentation: Components for particle accelerators or laboratory equipment sensitive to magnetic flux.

• High-End Jewelry & Watches: Often used for watch cases and "piercing" grade components due to the stable austenite and high polishability.

• Chemical Processing: Valve stems and internals where high pressure and corrosive media are present simultaneously.
